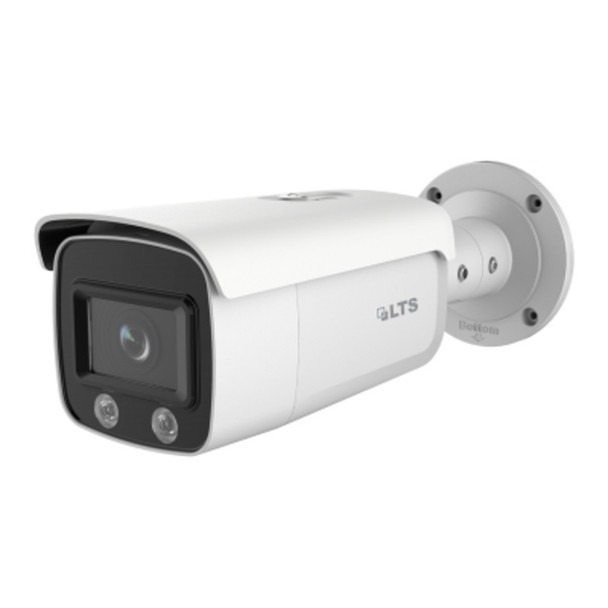

4 Megapixel InfraRed for Night Vision Outdoor Bullet Network (IP) Security Camera, H.265 Plus Compression, Weatherproof, SD Card Support, 4mm Fixed Lens, CMIP9C42NW-M

Part Number: CMIP9C42NW-M
Write a Review
Check other similar products:
Discontinued
  • LTS 4MP H.265 Full Color Outdoor Bullet IP Security Camera
  • 4 Megapixel InfraRed for Night Vision Outdoor Bullet Network (IP) Security Camera, H.265 Plus Compression, Weatherproof, SD Card Support, 4mm Fixed Lens, CMIP9C42NW-M

? Help me pick a security camera

Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.264 Plus, H.265 Plus,
  • Field of View (Horizontal) : 94°Field of View
  • Max. FPS and Resolution : 30fps at 2688 x 1520
  • Lens Type : Fixed Lens
  • Lens Size : 4mm Lens
  • Max. Storage Capacity : 128 GB Storage Capacity
  • Protection Code : IP67
  • Environmental : Outdoor

Description

LTS CMIP9C42NW-M 4MP H.265 Color247 Outdoor Bullet IP Security Camera

Key Features:

  • Max. 2688 × 1520 @30fps
  • 4 mm fixed lens
  • H.265+, H.264+
  • 120dB WDR
  • 0.0014 @ (F1.0, AGC ON), 0 Lux with Light
  • 12 VDC & PoE (802.3af, class 3)
  • Built-in micro SD/SDHC/SDXC slot, up to 128G
  • Weatherproof IP67
  • BLC/3D DNR/HLC/ROI

Specifications

Specifications

Camera Series Platinum Series
Camera Resolution 4.1MP
Camera Technology IP / Network
Camera Housing Bullet
Featured Product No
Specifications

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Min. Illumination

0.0014 @ (F1.0, AGC ON), 0 Lux with Light

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

DNR

3D DNR

Wide Dynamic Range

120dB

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Focal length

4 mm

Aperture

F1.0

Focus

Fixed

FOV

4 mm, horizontal FOV: 94°, vertical FOV: 48°, diagonal FOV: 115°

Lens Mount

M16

Compression Standard

Video Compression

Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 16 Mbps

Smart Feature-set

Behavior Analysis

Line crossing detection, intrusion detection, object removal detection, unattended baggage detection

Exception Detection

Scene change detection

Face Detection

Yes


Max. Resolution

2688 × 1520

Main Stream

50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third stream

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fp s(1280 × 720, 640 × 360, 352 × 240)

Image Enhancement

BLC/3D DNR/HLC

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch

Day/Night

ROI (Region of Interest)

Support 1 fixed region for main stream and sub-stream separately

View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Alternative SKUs:
LTCMIP9C42NW-M
Camera Style:
Bullet
Compression:
H.264 Plus H.265 Plus
Durability:
Weatherproof
Environmental:
Outdoor
Field of View (Horizontal):
94
Lens Size:
4mm
Lens Type:
Fixed Lens
Max. FPS and Resolution:
30fps at 2688 x 1520
Max. Storage Capacity:
128 GB
Night Vision Range (ft):
98
Night Vision Type:
Night Vision (IR)
Noise Reduction:
3D DNR
Protection Code:
IP67
Resolution:
4MP
SD Card Support:
SD Card Supported
Technology:
Network (IP)
Warranty:
3-year Manufacturer Warranty
Wide Dynamic Range (WDR):
True WDR 120dB
