Description

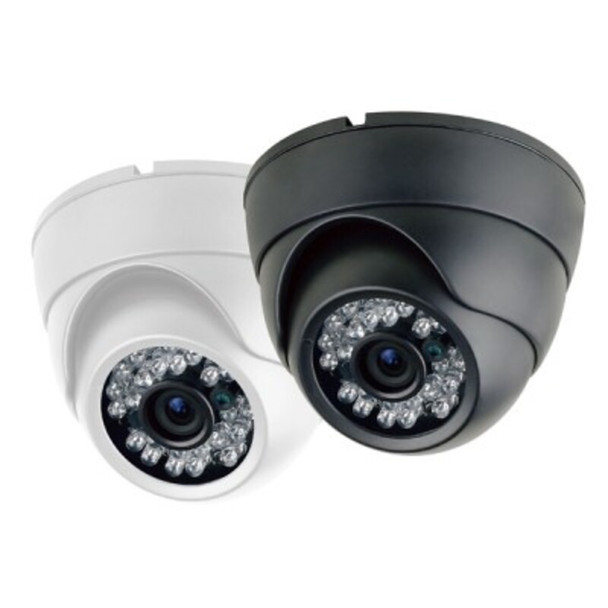

LTS CMT2462P 600TVL Turret CCTV Analog Security Camera
Key Features:
- 1/3" PixelPlus
- 600 TVL
- Plastic Housing
- BLC (Auto)
- Indoor
Specifications
Specifications
| Camera Series | Others |
|---|---|
| Camera Resolution | 600TVL |
| Camera Technology | HD-TVI |
| Camera Housing | Turret |
| Featured Product | No |
| Specifications | Model CMT2462P/CMT2462PB Image Image Sensor 1/3" PixelPlus Effective Pixels NTSC: 728(H)x488(V) Horizontal Resolution 600 TVL Lens Focal Length 3.6mm Fixed lens Iris AES ICR YES Electrical Video System NTSC/PAL Video Scanning Type 2:1 Interlace Sync. System Internal Min. Illumination 0 Lux/F1.2 (IR On) S/N Ratio >50dB (AGC off) Video Output 1 BNC, 1.0 Vp-p, 75 Ohm Composite Function Electronic Shutter NTSC: 1/60 ~ 1/100,000 White Balance ATW BLC Auto Gain Control Auto Infrared LED Infrared Red Lamps 23 pcs IR LEDs IR Distance 70ft (23m) Power Input Voltage DC 12V Power Consumption < 2W (LED Off)/ <6W (LED On) Environment Weather Protection - Vandal Protection Yes Operating Temperature 14°F ~ 122 °F (-10? ~ 50 ?) Storage Temperature 4°F ~ 144 °F (-20? ~ 60 ?) Humidity RH90% Max. (Non-condensing) Mechanical Chasis Material Plastic housing Color CMT2462P (Wh), CMT2462PB (Blk) Product Net Weight .37 lbs (170g) Product Dimension 3.63" (D) x 3.12" (H) |
Additional Information
|
Alternative SKUs:
|
LTCMT2462P
|
|
Camera Style:
|
Turret
|
|
Environmental:
|
Indoor
|
|
Resolution:
|
700TVL
|
|
Sensor Size:
|
1/3"
|
|
Technology:
|
CCTV (Analog CVBS)
|
