Description

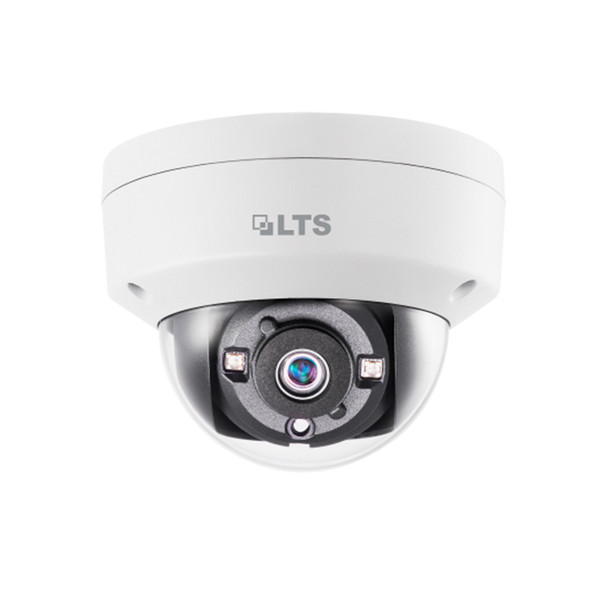

LTS CMHD7322WE-28F 2MP IR Outdoor Dome HD-TVI Security Camera with 2.8 Fixed Lens - LTCMHD7322WE-28F
Key Features:
- 2.1MP Ultra Low Light
- 2.8mm Fixed Lens
- 1920x1080@30fps
- 0.005 Lux@F2.0
- 2 Matrix IR 2.0 LED up to 65ft
- True WDR 130dB
- TVI/AHD/C
- IP67, IK10
Replacement of:
CMHD7322WE-28
Downloads
Datasheet
CMHD7322WE-28F Datasheet.pdf
Specifications
Specifications
| Camera Series | Platinum Series |
|---|---|
| Camera Resolution | 2.1MP / 1080P |
| Camera Technology | HD-TVI |
| Camera Housing | Turret |
| Featured Product | No |
| Specifications | No |
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alternative SKUs:
|
CMHD7322WE-28F
|
|
Aperture:
|
F1.2
|
|
Camera Style:
|
Dome
|
|
Color:
|
White
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
104
|
|
HD CCTV Type:
|
HD-TVI
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
3.4 Watts
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.003 Lux at F1.2 AGC On
|
|
Night Vision Range (ft):
|
65
98
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
2D DNR
3D DNR
|
|
Power Supply:
|
12 VDC
|
|
Product Series:
|
LTS Platinum Series
|
|
Protection Code:
|
IP67
IK10
|
|
Resolution:
|
2MP
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/25-1/50000s
1/30-1/50000s
|
|
Technology:
|
HD CCTV
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
WDR 130dB
|
