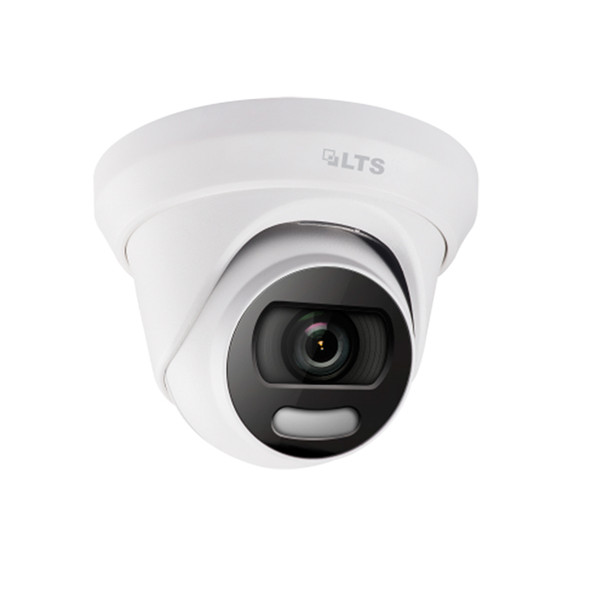

2 Megapixel InfraRed for Night Vision Outdoor Turret HD CCTV Security Camera, Weatherproof, 2.8mm Fixed Lens, CMHT1722W-28CF

Brand: LTS Security
Part Number: CMHT1722W-28CF
Write a Review
Replacement: LTS LTCMHT1722NW-28CF 2MP Full Color Outdoor HD CCTV Security Camera with Whitelight and 2.8mm Fixed Lens
Check other similar products:
LTS Security Cameras
Outdoor Security Cameras
Turret Security Cameras
LTS HD CCTV Security Cameras
2MP Security Cameras
LTS Turret Security Cameras
Discontinued
  • 2 Megapixel InfraRed for Night Vision Outdoor Turret HD CCTV Security Camera, Weatherproof, 2.8mm Fixed Lens, CMHT1722W-28CF
  • 2 Megapixel InfraRed for Night Vision Outdoor Turret HD CCTV Security Camera, Weatherproof, 2.8mm Fixed Lens, CMHT1722W-28CF

? Help me pick a security camera

Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Field of View (Horizontal) : 104°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Protection Code : IP67
  • Environmental : Outdoor

Description

LTS CMHT1722W-28CF 2MP IR Color247 Outdoor Turret HD CCTV Security Camera

Key Features:

  • 2 MP, 1920 × 1080 resolution
  • 24-hour color image
  • 2.8 mm fixed lens
  • Up to 66ft(20 m) white light distance
  • 3D DNR, true WDR
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67
  • OSD menu via UTC technology with Platinum DVR
Replacement of: C2MD

Downloads

Popular Search

LTS Security Cameras
Outdoor Security Cameras
Turret Security Cameras
LTS HD CCTV Security Cameras
2MP Security Cameras
LTS Turret Security Cameras

Specifications

Specifications

Camera Series Platinum Series
Camera Resolution 2MP
Camera Technology HD-TVI
Camera Housing Turret
Featured Product No
Specifications







Camera

Image Sensor

2 MP CMOS

Resolution

1920 (H) × 1080 (V)



Frame Rate

PAL: 1080p@25fps NTSC: 1080p@30fps

Min. illumination

0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time

PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Slow Shutter

Max. 16 times

Lens

2.8 mm fixed lens

Field of View

2.8 mm, horizontal FOV: 104°, vertical FOV: 54°, diagonal FOV: 126°

Lens Mount

M16

Day & Night

Color

WDR (Wide Dynamic Range)

130 dB

Angle Adjustment

Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°

Menu

Image Mode

STD/HIGH SAT

AGC

Yes

White Balance

Auto/Manual

HLC

Yes

BLC (Backlight Compensation)

Yes

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable areas

WDR

Yes

Functions

Brightness, Sharpness, 3D DNR, Mirror, Smart light

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)



Power Supply

12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

Power Consumption

Max. 3 W

Protection Level

IP67



Material

Main Body: Metal Mounting Base: Plastic

White Light

Up to 66ft(20 m)

Dimensions

Ø 109.82 mm × 85.56 mm ( Ø 4.32" × 3.37")

Weight

Approx. 336 g (0.74 lb.)


View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Alternative SKUs:
LTCMHT1722W-28CF
Camera Style:
Turret
Durability:
Weatherproof
Environmental:
Outdoor
Field of View (Horizontal):
104
Lens Size:
2.8mm
Lens Type:
Fixed Lens
Night Vision Range (ft):
66
Night Vision Type:
Night Vision (IR)
Noise Reduction:
3D DNR
Protection Code:
IP67
Resolution:
2MP
Technology:
HD CCTV
Warranty:
3-year Manufacturer Warranty
Wide Dynamic Range (WDR):
True WDR 120dB
