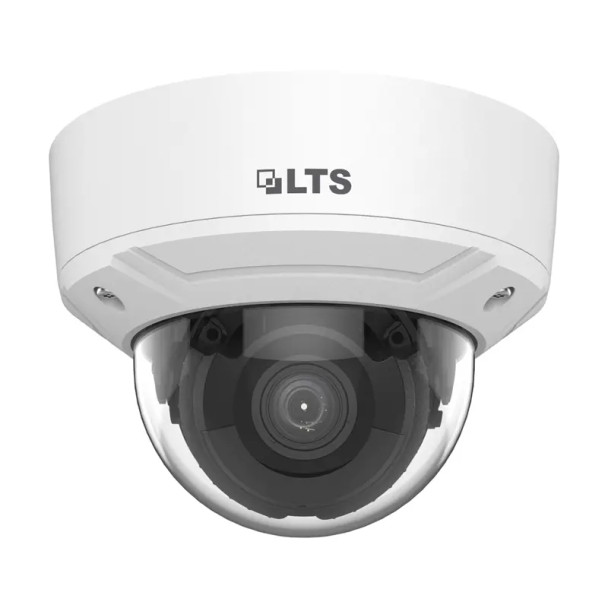

LTS CMIP7243W-SDZ 4MP Night Vision Outdoor Dome IP Security Camera - LTCMIP7243W-SDZ
Empowered by deep learning algorithms, our technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Key Features:
- High quality imaging with 4 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Focus on human and vehicle targets classification based on deep learning
Downloads
User Manual
LTS-Security-LTCMIP7243W-SDZ-User-Manual-A1
Quick Start Guide
LTS-Security-LTCMIP7243W-SDZ-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Alternative SKUs:
|
CMIP7243W-SDZ
|
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711ulaw
G.711alaw
G.722.1
G.726
PCM
MP2L2
MP3
AAC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Dome
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ISAPI
SDK
|
|
Compression:
|
H.265
H.264
MJPEG
H.265 Plus
H.264 Plus
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
Day (Color)
Night (B/W)
|
|
Dimensions:
|
153.3 X 111.6 mm (6.1 x 4.4 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
29.2
95.8
|
|
Iris:
|
Fixed Iris
|
|
Languages:
|
English
Spanish
|
|
Lens Mount:
|
M14
|
|
Lens Size:
|
2.8~12mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Metal
Plastic
|
|
Max Power Consumption:
|
10.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.005 Lux at F1.6 AGC On
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
131
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Optical Zoom:
|
4.3x Optical Zoom
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
LTS Platinum Series
|
|
Protection Code:
|
IP67
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
