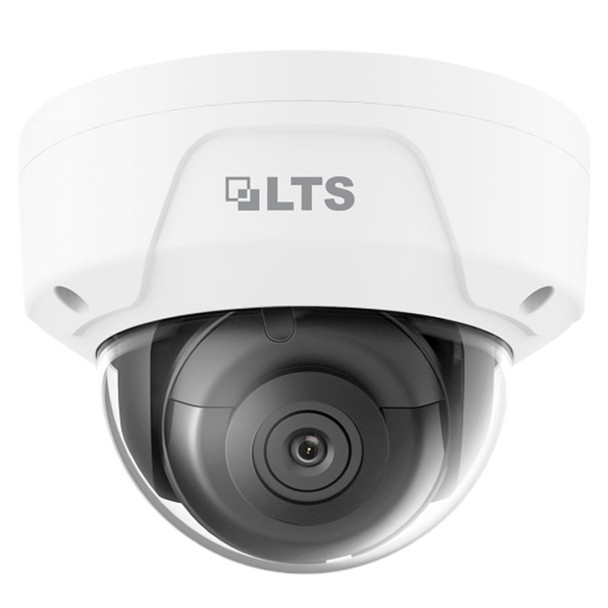

8 Megapixel (4K) InfraRed for Night Vision Outdoor Dome Network (IP) Security Camera, H.265 Plus Compression, Weatherproof, SD Card Support, 2.8mm Fixed Lens, CMIP7382NW-28M
$233.87
✅ Help me pick a security camera
Technical Support
3 Year Warranty
- Compression : MJPEG, H.264, H.265, H.265 Plus,
- Field of View (Horizontal) : 102°Field of View
- Max. FPS and Resolution : 15fps at 3840 x 2160
- Lens Type : Fixed Lens
- Lens Size : 2.8mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.5" Sensor
- Max. Storage Capacity : 128 GB Storage Capacity
- Protection Code : IP67 IK10
- Color : White
- Environmental : Outdoor
- Sensor Size : 1/2.5"
Description
LTS CMIP7382NW-28M 8MP IR H.265 Outdoor Dome IP Security Camera with 2.8mm Fixed Lens
Key Features:
- 8MP/4K High Definition
- Up to [email protected]
- 2.8mm Fixed Lens
- Matrix IR 2.0
- IR Range up to 100 feet
- H.265, H.265+, H.264, H.264+ Ready
- True WDR 120dB
- IP67 Weatherproof
- IK10 Vandal Proof
- MicroSD Slot up to 128GB
- DC 12V, PoE

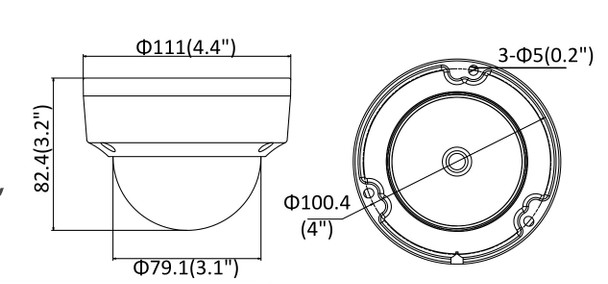

- Dimensions : Φ4.4″ x 3.2″ (Φ111 x 82.4 mm)
- ONVIF
Downloads
Datasheet
lts-CMIP7382NW-28M-A1.pdf
Popular Search
Videos
View AllClose
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at [email protected] with any design questions.
Additional Information
Alternative SKUs: |
LTCMIP7382NW-28M
|
Camera Style: |
Dome
|
Color: |
White
|
Compatible Integration (API): |
ONVIF Profile S
ONVIF Profile G
ISAPI
|
Compression: |
MJPEG
H.264
H.265
H.265 Plus
|
Day/Night: |
ICR (True Day/Night)
|
Dimensions: |
111 x 82.4 mm (4.4 x 3.2 in)
|
Durability: |
Vandal Proof
Weatherproof
|
Environmental: |
Outdoor
|
Field of View (Horizontal): |
102
|
Internal Storage: |
|
Key Features: |
Matrix IR
|
Languages: |
English
|
Lens Mount: |
M12
|
Lens Size: |
2.8mm
|
Lens Type: |
Fixed Lens
|
Max. FPS and Resolution: |
15fps at 3840 x 2160
|
Max. Storage Capacity: |
128 GB
|
Minimum Illumination (B/W): |
0 lux with IR illumination on
|
Minimum Illumination (Color): |
0.028 lux at F2.0 AGC ON
|
Mobile Apps: |
Android
iOS
|
NDAA Compliance: |
|
Network Interface: |
1x RJ-45 10M/100M Base-TX Ethernet
|
Night Vision Range (ft): |
100
|
Noise Reduction: |
3D DNR
|
Power Consumption: |
9 Watts
|
Power Supply: |
12 VDC
PoE (IEEE 802.3af)
|
Protection Code: |
IP67
IK10
|
Remote Users: |
Up to 32
|
Reset Button: |
|
Resolution: |
8MP (4K)
|
SD Card Support: |
|
Sensor Size: |
1/2.5"
|
Sensor Type: |
CMOS
|
Shutter Speed: |
1/3-1/100000s
|
Technology: |
Network (IP)
|
Warranty: |
3-year Manufacturer Warranty
|
Web Browser: |
Internet Explorer
|
Wide Dynamic Range (WDR): |
True WDR 120dB
|
