Description

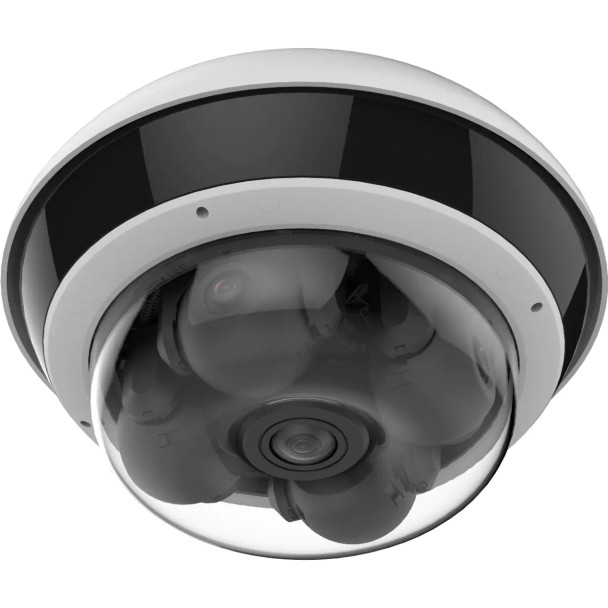

LTS CMIP7553W5-SZ8 5-Directional Multi-sensor IP Security Camera, 4x5MP and 1x2MP - LTCMIP7553W5-SZ8
Four adjustable lenses and single fixed lens together capture up to 360 degrees, eliminating blind spots. The top/center lens records at up to 5 MP, capturing clear images and details that can be displayed on a video wall. Clear imaging against strong back light is due to the 120 dB true WDR technology. LTS's unique InstaDome feature enables efficient installation.
Key Features:
- Image Sensors: Varifocal: 1/2.4" Progressive Scan CMOS; Fixed: 1/2.5" Progressive Scan CMOS
- Max. Resolutions: 4 x 2560 × 1920 and 1 x 1440× 1440
- Min. Illumination: Color: 0.005 Lux @ f 1.2, AGC on | B&W: 0.002 Lux @ f 1.2, AGC on
- Angle Adjustment: Pan: 0° to 350°, tilt: 0° to 90°, rotate: -90° to 90°
- Human and vehicle target classification based on deep learning for up to 4 channels
- Water and dust resistant (IP67) and vandal proof (IK10)
- Audio and alarm interfaces available
Replacement of:
LTCMIP7553W4-SZ8
Downloads
Additional Information
|
Alarm Input:
|
2 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Aperture:
|
F1.9
F2.25
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
AAC-LC
G.722.1
G.726
MP3
MP2L2
PCM
|
|
Camera Style:
|
Multi-sensor
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
IR cut filter
|
|
Dimensions:
|
158 x 293.3 mm (6.22 x 11.54 in)
|
|
Durability:
|
Dust Resistant
Water Resistant
Vandal Resistant
|
|
Focus:
|
Semi-Auto
Manual
|
|
Lens Mount:
|
M14
|
|
Lens Size:
|
2.8~8mm
2mm
|
|
Lens Type:
|
Fixed Lens
Varifocal Lens
|
|
Max Power Consumption:
|
21.5 Watts
|
|
Power Supply:
|
PoE+ (IEEE802.3at)
|
|
Product Series:
|
LTS Platinum Series
|
|
Protection Code:
|
IP67
IK10
|
|
Resolution:
|
5MP (3K)
|
|
S/N Ratio:
|
>52 dB
|
|
Sensor Size:
|
1/2.5"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/100000s
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-40 °C to 60 °C (-40 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
