LTS CMIP7923WLPR-32R 2MP H.265+ License Plate Recognition VF Bullet IP Security Camera

Part Number: CMIP7923WLPR-32R
Write a Review
Replacement of: CMIP7923LPR-32R
  • LTS CMIP7923WLPR-32R 2MP H.265+ License Plate Recognition VF Bullet IP Security Camera
  • LTS CMIP7923WLPR-32R 2MP H.265+ License Plate Recognition VF Bullet IP Security Camera
  • LTS CMIP7923WLPR-32R 2MP H.265+ License Plate Recognition VF Bullet IP Security Camera
$933.87
OR
Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265 Plus, H.264 Plus, H.264, H.265,
  • Field of View (Horizontal) : 42.5°Field of View 13.4°Field of View
  • Max. FPS and Resolution : 30fps at 1080P
  • Lens Type : Varifocal (Manual Zoom) Lens
  • Lens Size : 8~32mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/1.8" Sensor
  • Video Output : 1x CVBS
  • Max. Storage Capacity : 256 GB Storage Capacity
  • Dimensions : 140 x 351 mm (5.5 x 13.8 in)
  • Protection Code : IP67 IK10
  • Color : White
  • Material : Aluminum
  • Environmental : Outdoor
  • Weatherproof : Yes
  • Sensor Size : 1/1.8"
  • Aperture : F1.6

Description

LTS CMIP7923WLPR-32R 2MP H.265+ License Plate Recognition VF Bullet IP Security Camera

Key Features:

  • 2MP
  • 1/1.8" Progressive Scan CMOS
  • 1920 × 1080 @ 60fps
  • Color: 0.002 Lux @ (F1.2, AGC ON)
  • H.265, H.265+, H.264, H.264+
  • 140dB WDR
  • 3D DNR
  • Alarm I/O
  • Weatherproof IP67,
  • Vandal Proof IK10
  • 1 RS-485 interface
  • IR range up to 328ft(100 m) (8 to 32 mm)
  • Five defined streams and up to five custom streams
  • 6 behavior analyses, 2 exception detection
  • License Plate Recognition
  • Supports alarms for listed license plate in the blacklist and whitelist
  • Built-in microSD/SDHC/SDXC card slot, up to 256GB
View AllClose

Specifications

Camera Series Platinum Series
Camera Resolution 2MP
Camera Technology IP / Network
Camera Housing Bullet
Featured Product No
Specifications No
Video No
View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Alarm Input:
2 Channel
Alarm Output:
2 Channel
Aperture:
F1.6
Audio Input:
Audio Output:
Built-in Microphone:
Built-in Speaker:
Camera Style:
Bullet
Color:
White
Compatible Integration (API):
ONVIF Profile S ONVIF Profile G SDK ISAPI
Compression:
H.265 Plus H.264 Plus H.264 H.265
Day/Night:
ICR (True Day/Night)
Dimensions:

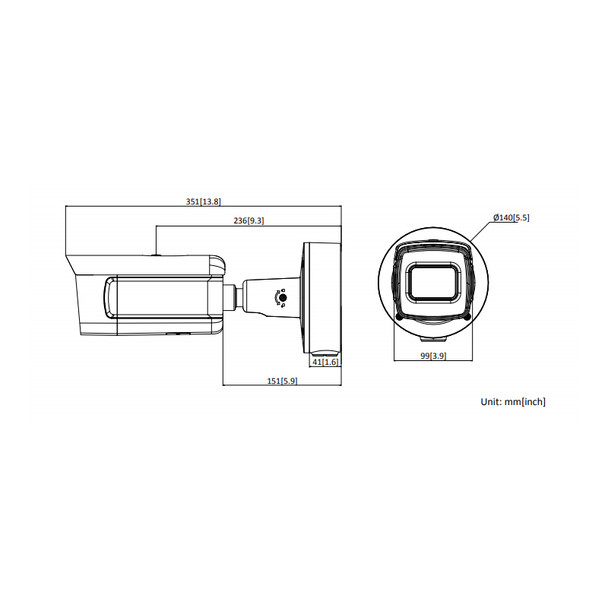

140 x 351 mm (5.5 x 13.8 in)
Environmental:
Outdoor
Field of View (Horizontal):
42.5 13.4
Internal Storage:
Languages:
English
Lens Size:
8~32mm
Lens Type:
Varifocal (Manual Zoom) Lens
Material:
Aluminum
Max. FPS and Resolution:
30fps at 1080P
Max. Storage Capacity:
256 GB
Minimum Illumination (B/W):
0 lux with IR illumination on
Minimum Illumination (Color):
0.002 Lux at F1.2 AGC ON
Network Interface:
1x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
Night Vision Range (ft):
328ft
Noise Reduction:
3D DNR
Operating Humidity:
0% to 95% (non-condensing)
Operating Temperature:
-30 °C to 60 °C (-22 °F to 140 °F)
Power Consumption:
14 Watts
Power Supply:
12 VDC PoE+ (IEEE802.3at Class 4)
Protection Code:
IP67 IK10
Remote Users:
Up to 32
Reset Button:
Resolution:
2MP
SD Card Support:
Sensor Size:
1/1.8"
Sensor Type:
CMOS
Serial Interface:
1x RS485
Shutter Speed:
1-1/100000s
Specialized Camera Feature:
License Plate Recognition (LPR)
Technology:
Network (IP)
Vandal Proof:
Video Output:
1x CVBS
Warranty:
3-year Manufacturer Warranty
Wavelength (nm):
850
Weatherproof:
Web Browser:
Internet Explorer 8 or above Chrome 31.0 to 44.0 Firefox 30.0 to 51 Safari 8 to 11
Wide Dynamic Range (WDR):
WDR 140dB
View AllClose
