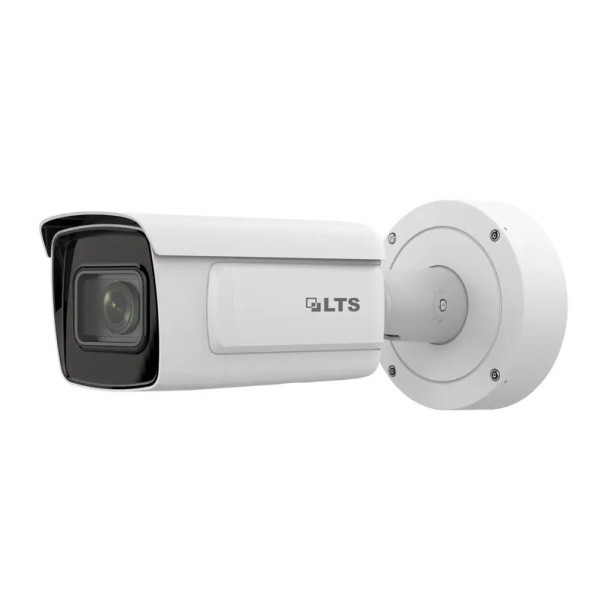

LTS CMIP7943WLPR-32R 4 MP Night Vision Outdoor LPR Bullet IP Security Camera with 8~32mm Motorized VF Lens and Matrix IR - LTCMIP7943WLPR-32R
Road Traffic and Vehicle Detection
With embedded AI based license plate capture and recognition algorithms, the camera alone can achieve plate capture and recognition. The algorithm enjoys the high recognition accuracy of common plates and complex-structured plates, which is a great step forward compared to traditional algorithms. Blocklist and allowlist are available for plate categorization and alarm triggering accordingly.
Key Features:
- High quality imaging with 4 MP resolution
- Excellent low-light performance via Ultra-low light technology
- Clear imaging against strong back light due to 140 dB WDR technology
- License Plate Recognition
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
Replacement of:
LTCMIP7923NWLPR-32R
CMIP7923WLPR-32R
Downloads
User Manual
LTS-Security-LTCMIP7943WLPR-32R-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
2 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Alternative SKUs:
|
CMIP7943WLPR-32R
|
|
Analytics:
|
Vehicle Detection
|
|
Aperture:
|
F1.7
F1.73
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
G.722.1
G.726
MP2L2
PCM
AAC
MP3
|
|
Audio Input:
|
1x 3.5mm
|
|
Audio Output:
|
1x 3.5mm
|
|
Audio Support:
|
External Microphone
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
FCC
CE-EMC
RCM
IC
KC
UL Listed
CB
CE
LVD
BIS
LOA
RoHS
WEEE
REACH
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
ISAPI
SDK
ISUP
|
|
Compression:
|
H.265
H.265 Plus
H.264
H.264 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
Auto
Day (Color)
Night (B/W)
Schedule
|
|
Detect (ft):
|
493.11
1312.34
|
|
Dimensions:
|
140 x 351 mm (5.5 x 13.8 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
15.1
42.5
|
|
Focus:
|
Auto Focus
Manual
Semi-Auto
|
|
Identify (ft):
|
131.23
49.31
|
|
Iris:
|
P-iris
|
|
Languages:
|
English
Russian
Estonian
Bulgarian
Hungarian
Greek
German
Italian
Czech
Slovak
French
Polish
Dutch
Portuguese
Spanish
Romanian
Danish
Swedish
Norwegian
Finnish
Croatian
Slovenian
Serbian
Turkish
Korean
Traditional Chinese
Thai
Vietnamese
Japanese
Latvian
Lithuanian
Portuguese (Brazil)
Ukrainian
|
|
Lens Size:
|
8~32mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
16.8 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.0005 lux
|
|
Mounting:
|
Pole Mount
Corner Mount
|
|
Network Interface:
|
1x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
|
|
Night Vision Range (ft):
|
328
|
|
Night Vision Type:
|
Night Vision (IR)
Matrix IR
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
195.86
520.66
|
|
Optical Zoom:
|
4x Optical Zoom
|
|
Power Supply:
|
12 VDC
PoE+ (IEEE802.3at)
|
|
Product Series:
|
LTS Platinum Series
|
|
Protection Code:
|
NEMA 4X
IK10
IP67
|
|
Recognize (ft):
|
98.75
262.46
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Serial Interface:
|
1x RS485
1x Wiegand
|
|
Shutter Speed:
|
1-1/100000s
|
|
Specialized Camera Feature:
|
License Plate Recognition (LPR)
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-40 °C to 60 °C (-40 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x CVBS
|
|
Wavelength (nm):
|
850
|
|
Web Browser:
|
Chrome 57.0 or above
Firefox 52.0 or above
Safari 11 or above
|
|
Wide Dynamic Range (WDR):
|
WDR 140dB
|
