Description

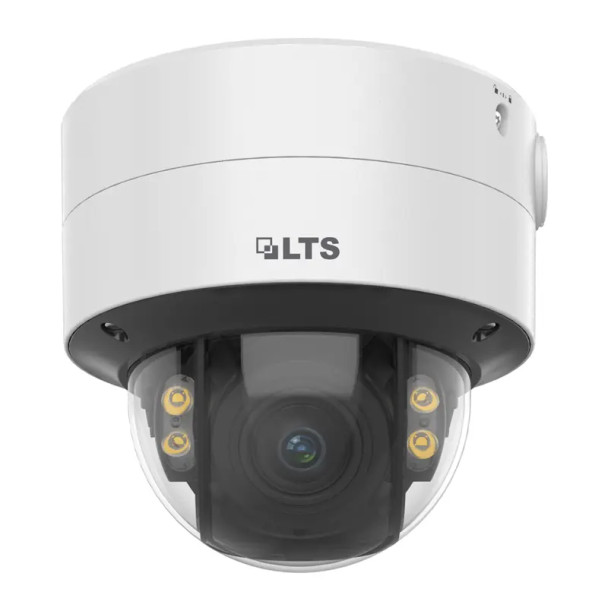

LTS CMIP7C43W-SDZ 4 MP White-Light Outdoor Color24/7 Dome IP Security Camera with 2.8~12mm Motorized Varifocal Lens - LTCMIP7C43W-SDZ
LTS Color24/7 technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high-performance sensors. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.
Key Features:
- High quality imaging with 4 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- 24/7 colorful imaging
- Clear imaging against strong backlight due to 130 dB WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Efficient H.265+ compression technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
Downloads
User Manual
LTS-Security-LTCMIP7C43W-SDZ-User-Manual-A1
Additional Information
|
Alternative SKUs:
|
CMIP7C43W-SDZ
|
|
Analytics:
|
Motion Detection
Line Crossing
Intrusion Detection
|
|
Aperture:
|
F1.0
|
|
Audio Compression:
|
G.711
G.722.1
G.726
MP2L2
PCM
MP3
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
FCC
RCM
CE
IC
KC
UL Listed
CB
LOA
RoHS
WEEE
REACH
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ISAPI
Hikvision SDK
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.265
H.265 Plus
H.264
H.264 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Day (Color)
|
|
Detect (ft):
|
219.16
361.54
|
|

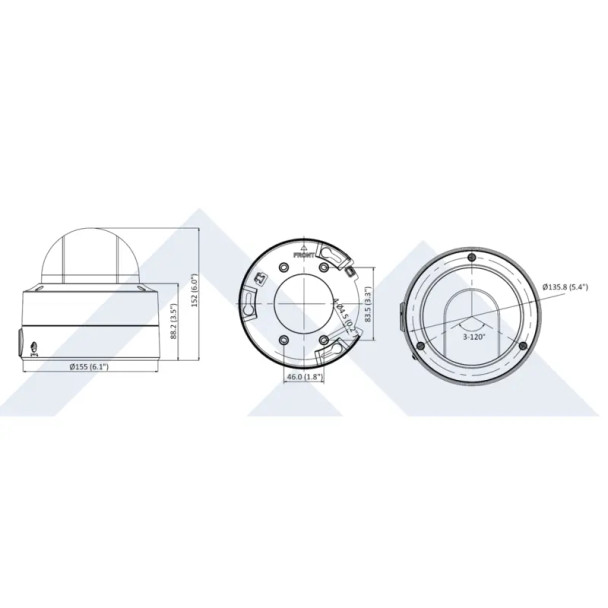

Dimensions:
|
154.94 x 152.40 mm (6.1 x 6.0 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
105.4
56.4
|
|
Identify (ft):
|
21.98
36.09
|
|
Image Enhancements:
|
Backlight Compensation (BLC)
Highlight Compensation (HLC)
Auto Gain Control (AGC)
|
|
Iris:
|
Auto (DC-iris)
|
|
Lens Size:
|
2.8~12mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Max Power Consumption:
|
12.9 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Max. Storage Capacity:
|
512 GB
|
|
Minimum Illumination (B/W):
|
0 lux white light on
|
|
Minimum Illumination (Color):
|
0.0005 Lux at F1.0 AGC ON
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
131
|
|
Night Vision Type:
|
Night Vision (Color - White Light)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
86.94
143.70
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
|
Product Series:
|
LTS Platinum Series
|
|
Protection Code:
|
IK10
IP67
|
|
Recognize (ft):
|
43.96
72.51
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Special Technologies:
|
LTS Color 24/7
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
WDR 130dB
|
