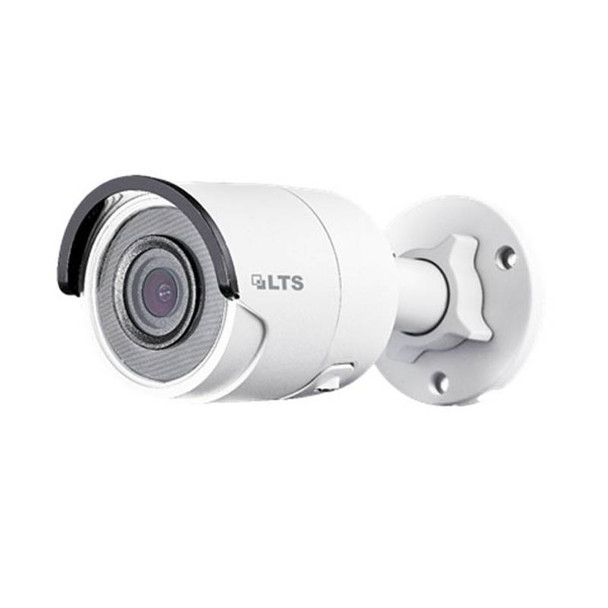

4 Megapixel InfraRed for Night Vision Outdoor Bullet Network (IP) Security Camera, H.265 Plus Compression, Weatherproof, SD Card Support, 2.8mm Fixed Lens, CMIP8342W-28M

Brand: LTS Security
Part Number: CMIP8342W-28M
Write a Review
  • 4 Megapixel InfraRed for Night Vision Outdoor Bullet Network (IP) Security Camera, H.265 Plus Compression, Weatherproof, SD Card Support, 2.8mm Fixed Lens, CMIP8342W-28M
  • 4 Megapixel InfraRed for Night Vision Outdoor Bullet Network (IP) Security Camera, H.265 Plus Compression, Weatherproof, SD Card Support, 2.8mm Fixed Lens, CMIP8342W-28M
  • 4 Megapixel InfraRed for Night Vision Outdoor Bullet Network (IP) Security Camera, H.265 Plus Compression, Weatherproof, SD Card Support, 2.8mm Fixed Lens, CMIP8342W-28M
$175.81

✅ Help me pick a security camera

Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265 Plus, H.265, H.264 Plus, H.264, MJPEG,
  • Field of View (Horizontal) : 103°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/3" Sensor
  • Protection Code : IP67
  • Color : White
  • Environmental : Outdoor
  • Sensor Size : 1/3"

Description

LTS CMIP8342W-28M 4MP IR H.265 Outdoor Mini Bullet IP Security Camera

Key features:

  • 4MP High Definition
  • Up to 2560x1520@30fps
  • 2.8mm Fixed Lens
  • 0.018 Lux @ F1.6
  • Matrix IR 2.0, IR Range up to 100 feet
  • H.265, H.265+, H.264, H.264+ Ready
  • True WDR 120dB
  • Weatherproof IP67
  • MicroSD Slot up to 128GB
  • DC 12V, PoE
  • VCA - Line Crossing, Intrusion Detection and Face Detection

Downloads

Popular Search

LTS IP Security Cameras
LTS Security Cameras

Specifications

Camera SeriesPlatinum Series
Camera Resolution4MP
Camera TechnologyIP / Network
Camera HousingBullet
Featured ProductNo
Specifications
Camera
Image Sensor 1/3” sensor
Min. IlluminationColor: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Lens

2.8 mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°

Lens MountM12
Day & NightICR
Digital Noise Reduction3D DNR
Wide Dynamic RangeTrue WDR 120dB
Compression Standard
Video Compression

Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264

Bit Rate256 Kbps to 16 Mbps
Dual streamYes
Max. Resolution2688 × 1520
Frame Rate60Hz: 15fps (2048 x 1536), 30fps (1920 × 1080), 30fps (1280 x 720)
50Hz: 12.5fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 x 720)
Image SettingsSaturation, brightness, contrast adjustable through client software or web browser
Network
Network StorageNAS ( iSCSI optional)
Alarm TriggerMotion detection.tampering alarm
ProtocolsTCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1x, Qos (SIP, SRTP, IPv6 optional)
System CompatibilityONVIF, PSIA, CGI
General functionalitiesFlickerless, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication Interface1 RJ45 10M / 100M ethernet port
General
Working Temperature
/Humidity		-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power SupplyDC12V ± 25%, PoE (802.3af)
Power ConsumptionMax. 6W
Ingress protection levelIP67
Dimension 70 mm × 155 mm (Φ 2.8" × 6.1")
Weight410 g (0.9 lb.)
View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Alternative SKUs:
LTCMIP8342W-28M
Camera Style:
Bullet
Color:
White
Compression:
H.265 Plus H.265 H.264 Plus H.264 MJPEG
Durability:
Weatherproof
Environmental:
Outdoor
Field of View (Horizontal):
103
Key Features:
Night Vision (IR) ONVIF
Lens Size:
2.8mm
Lens Type:
Fixed Lens
Night Vision Range (ft):
100
Protection Code:
IP67
Resolution:
4MP
SD Card Support:
Sensor Size:
1/3"
Sensor Type:
CMOS
Technology:
Network (IP)
Vandal Proof:
Warranty:
3-year Manufacturer Warranty
Wide Dynamic Range (WDR):
True WDR 120dB
