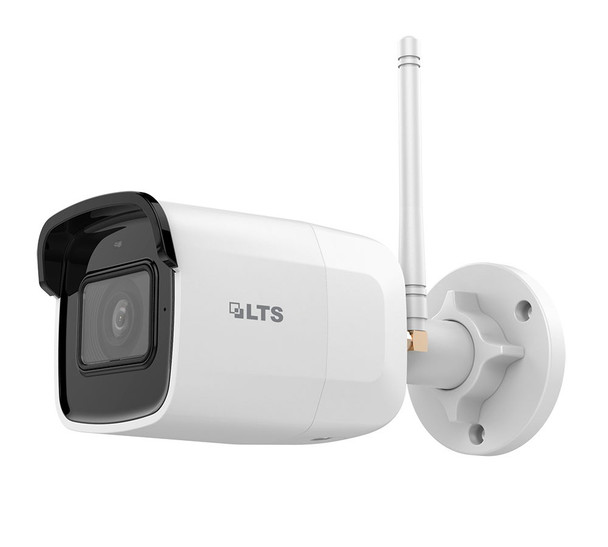

4 Megapixel InfraRed for Night Vision Outdoor Wireless Bullet Network (IP) Security Camera, H.265 Plus Compression, CMIP8342W-28MWIFI

Camera

Image Sensor

1/3" Progressive Scan CMOS

Min. Illumination

Color: 0.028 Lux @(F2.0; AGC ON)

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Auto-Iris

No

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

Wide Dynamic Range

DWDR

Axis Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Focal Length

2.8 mm

Aperture

F2.0

Focus

No

FOV

2.8 mm, horizontal FOV: 100°, vertical FOV: 55°, diagonal FOV: 117°

Lens Mount

M12

IR

IR Range

Up to 98ft(30 m)

Wavelength

850nm

Compression Standard

Video Compression

Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Video Bit Rate

32 Kbps to 8Mbps

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

Yes

Smart Feature-set

Region of Interest

Support 1 fixed region for main stream and sub-stream


Max. Resolution

2560 × 1440

Main Stream

50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)

60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Image Enhancement

BLC/3D DNR

Image Settings

Saturation, brightness, contrast and sharpness are adjustable via client software and web browser

Day/Night Switch

Auto/Scheduled/Day/Night

Network

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full

Network Storage

Support built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,

IGMP, QoS, IPv6, UDP, Bonjour

General Function

One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

API

ONVIF(PROFILE S,PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users

3 levels: Administrator, Operator and User

Web Browser

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

Built-in microSD/SDHC/SDXC slot, up to 128 GB

Audio I/O

1 Built-in mic, mono sound

Video Out

No

Alarm I/O

No

Reset Button

Yes

Wi-Fi

Wireless Standards

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.412 GHz - 2.472 GHz

Channel Bandwidth

20/40MHz

Protocols

802.11b: CCK, QPSK, BPSK,

802.11g/n: OFDM

Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Transfer Rates

11b/g: 54Mbps, 11n: up to 150Mbps

Wireless Range

Up to 492ft(150 m)

(The performance varies based on actual environment)

Power Consumption

<30dBm

General

Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, Φ 5.5 mm coaxial plug power

Power Consumption and Current

12 VDC, 0.6 A, Max: 7.2 W

Protection Level

IP66

Material

Front cover: plastic, camera body: metal

Dimensions

Camera: 69.7 mm × 67.9 mm × 171.4 mm (2.7" × 2.7" × 6.7")

With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")

Weight

Camera: 372g (0.8lb) With package: 659g(1.5lb)
