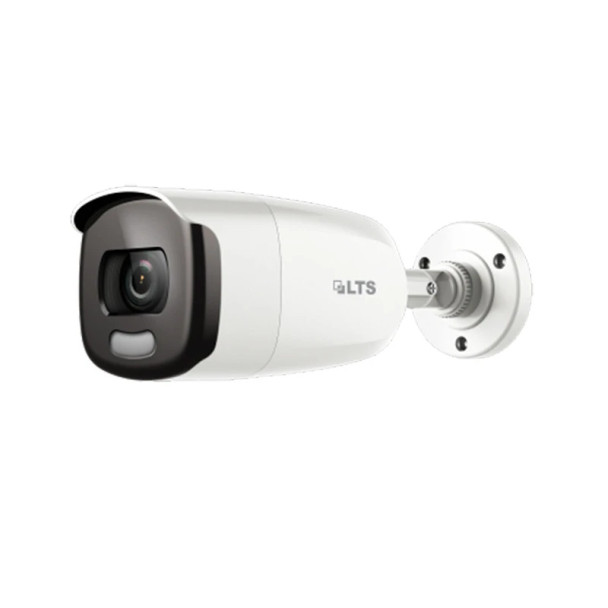

LTS LTCMHR9252W-28CF 5MP Outdoor Bullet HD-TVI Security Camera with 2.8mm Lens and Built-In White Light
The LTS LTCMHR9252W-28CF is a 5MP outdoor bullet HD-TVI security camera designed to deliver full-color surveillance 24/7 with Smart Light technology and exceptional low-light performance. Featuring a 2.8mm fixed lens, it offers a wide 99.7° horizontal field of view and captures 2560 × 1944 resolution video at 20 FPS in TVI and AHD modes. Thanks to its advanced white light illumination system, the camera maintains true color imaging even in complete darkness with coverage up to 131 feet (40 meters). Its 130 dB True WDR and 3D DNR functions ensure balanced exposure and noise reduction in complex lighting environments. Built with a durable IP67-rated housing, the LTCMHR9252W-28CF supports 4-in-1 video output (TVI/AHD/CVI/CVBS) and operates reliably in temperatures from -40 °F to 140 °F, making it ideal for residential, retail, or perimeter security deployments.
Key Features:
- 5MP resolution (2560 × 1944); delivers crisp high-definition video at 20 FPS.
- 2.8mm fixed lens; provides a 99.7° horizontal field of view for wide-area coverage.
- 24/7 full-color imaging; Smart Light technology maintains color video in complete darkness.
- White light range up to 131 feet (40 meters); ensures visibility in low-light and nighttime conditions.
- 130 dB True WDR and 3D DNR; optimize image quality in dynamic and noisy lighting.
- Strobe light alarm; enhances deterrence with visible light response to events.
- Switchable 4-in-1 video output; supports HD-TVI, AHD, CVI, and CVBS formats.
- Day/night mode; operates in full-time color without IR cut filter.
- Weatherproof metal/plastic housing; IP67-rated for reliable outdoor use.
- Low-light sensitivity down to 0.0005 Lux (F1.0); captures detailed color images in near-darkness.
- Angle adjustment; 3-axis design supports flexible mounting and viewing.
- Privacy masking and motion detection; customizable zones for sensitive areas and events.
- 12 VDC power input; low power consumption up to 4.9W.
- Operating temperature range -40 °F to 140 °F; designed for extreme outdoor environments.
- Compact and lightweight design; compatible with LTB345 junction box for streamlined installation.
Downloads
Additional Information
|
Camera Style:
|
Bullet
|
|
Day/Night:
|
|
|
Dimensions:
|
3.25x3.04x8.49in
|
|
Environmental:
|
Outdoor
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
4.9 Watts
|
|
Power Supply:
|
12 VDC
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
5MP
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
HD CCTV
|
|
Wide Dynamic Range (WDR):
|
WDR 130dB
|
