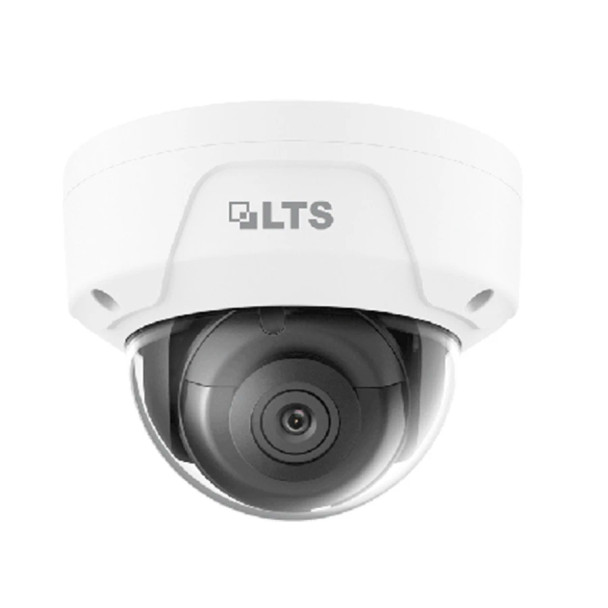

LTS LTCMIP7342W-6M 4MP Outdoor Dome IP Security Camera with 6mm Lens and Built-In IR
The LTS LTCMIP7342W-6M delivers reliable 4MP surveillance with a focused 6mm fixed lens designed for medium to long-range identification and monitoring applications. This professional dome security camera features a 1/3" Progressive Scan CMOS sensor that captures sharp 2688 × 1520 resolution images at up to 30 fps, ensuring clear detail recognition for critical security applications.
Built to withstand harsh conditions and vandalism attempts, this camera combines IP67 weatherproof rating with IK10 vandal-resistant construction, making it ideal for high-risk installations where camera protection is essential. The integrated IR illumination provides reliable nighttime surveillance up to 98 feet, while intelligent behavior analysis capabilities enhance security monitoring effectiveness.
Advanced video compression technology featuring H.265+ significantly reduces bandwidth and storage requirements while maintaining exceptional image quality. The camera's 120 dB True Wide Dynamic Range ensures clear imaging in challenging lighting conditions, making it perfect for areas with varying light levels throughout the day.
Key Features:
- 4MP high-resolution imaging with 2688 × 1520 detail capture; provides crystal-clear identification for security applications
- 6mm fixed lens for focused medium-range surveillance; optimal for monitoring specific areas with precise field of view
- IK10 vandal-resistant construction with IP67 weatherproof rating; withstands physical attacks and harsh weather conditions
- Built-in IR illumination with 98ft range for reliable nighttime coverage; eliminates need for external lighting
- 1/3" Progressive Scan CMOS sensor for consistent performance; captures usable footage in various lighting conditions
- Intelligent behavior analysis with line crossing and intrusion detection; reduces false alarms and enhances security effectiveness
- Face detection capability for enhanced person identification; improves forensic investigation capabilities
- 120 dB True Wide Dynamic Range for balanced imaging; handles challenging backlighting scenarios effectively
- H.265+ compression technology for efficient bandwidth usage; reduces storage costs while maintaining quality
- MicroSD card support up to 128GB for local backup storage; ensures footage retention during network interruptions
Downloads
Additional Information
Aperture:
|
F1.6
|
Camera Style:
|
Dome
|
Compression:
|
H.265
H.264
H.264+
H.265+
MJPEG
|
Day/Night:
|
|
Dimensions:
|
4.37x3.24x0.00in
|
Lens Size:
|
6mm
|
Lens Type:
|
Fixed Lens
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
Protection Code:
|
IP67
IK10
|
Resolution:
|
4MP
|
SD Card Support:
|
|
Sensor Size:
|
1/3"
|
Sensor Type:
|
CMOS
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
