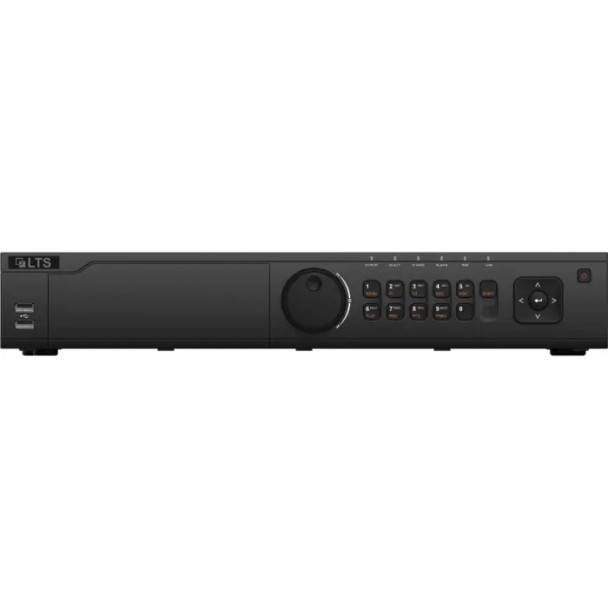

LTS LTD8432M-ST(S) 32 Channel 8MP Hybrid Video Recorder with No HDD Included
The LTS LTD8432M-ST(S) is a high-performance 32-channel hybrid digital video recorder designed to support large-scale surveillance systems using analog and IP camera technologies. With 32 BNC analog inputs and the ability to accommodate up to 64 IP channels, the system delivers flexibility for hybrid installations. It supports 8MP analog encoding at up to 8fps, offering detailed video capture. Video compression formats include H.265 Pro+ for efficient bandwidth and storage usage. Storage scalability is provided by four SATA bays and one eSATA port, with up to 12TB supported per drive. The LTD8432M-ST(S) includes dual HDMI outputs (one up to 4K), dual Gigabit Ethernet ports, RAID support, AI metadata integration from IP cameras, and POS functionality—making it suitable for enterprise surveillance environments.
Key Features:
- 32 Analog Channels; BNC inputs with support for up to 8MP resolution
- Supports up to 64 IP Channels; hybrid flexibility for mixed camera deployments
- No HDD Included; supports 4 SATA interfaces and 1 eSATA, up to 12TB per disk
- H.265 Pro+, H.265, H.264+, H.264 Compression; ensures efficient recording and storage
- Recording Performance; up to 8MP at 8fps, 5MP at 12fps
- Dual HDMI Output; includes HDMI2 with up to 4K resolution for sharp local display
- Dual Gigabit Ethernet Ports; 2 x RJ-45 10/100/1000 Mbps for network redundancy
- RAID 0, 1, 5, 6, 10 Support; improves data security and reliability
- AI Integration; supports metadata from compatible IP cameras for smart search
- POS Support; integrates with point-of-sale systems for transaction overlay
- Smart Search; improves video review efficiency
- Audio Channels; 4 in / 1 out, supports 2-way audio (independent RCA)
- Alarm I/O; 16 inputs and 4 outputs for event-driven responses
- Remote Access; supports up to 128 users, compatible with LTS Connect, DDNS, and ONVIF
- USB Ports; 2 x USB 2.0 (front), 1 x USB 3.0 (rear)
- Operating Conditions; -10°C to 55°C (14°F to 131°F), 10%–90% humidity
- Power Supply; 100 to 240 VAC, ≤55W (without HDD)
- Rackmount Design; 1U form factor for professional installations
Downloads
Popular Search
Additional Information
|
Capacity for each disk:
|
up to 12TB
|
|
Channel Capacity:
|
32 Channels
|
|
Compression:
|
H.264
H.265
|
|
Dimensions:
|
445 × 400 × 71 mm (17.5 × 15.7 × 2.8 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
4 SATA Ports
|
|
Max. Storage Capacity:
|
48 TB
|
|
Pre-Installed Storage:
|
No HDD included
|
|
Recorder Technology:
|
Hybrid Recorder (DVR and NVR)
|
|
e-SATA:
|
e-SATA
|
