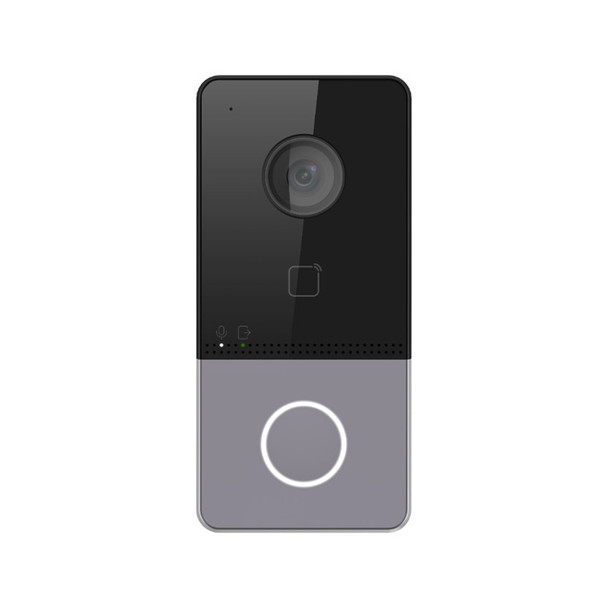

LTS LTH-301M-WIFI PoE Commercial Doorbell with Card Reader and 2MP Camera

Part Number: LTH-301M-WIFI
Write a Review
Discontinued
  • LTS LTH-301M-WIFI PoE Commercial Doorbell with Card Reader and 2MP Camera
  • LTS LTH-301M-WIFI PoE Commercial Doorbell with Card Reader and 2MP Camera
  • LTS LTH-301M-WIFI PoE Commercial Doorbell with Card Reader and 2MP Camera
  • LTS LTH-301M-WIFI PoE Commercial Doorbell with Card Reader and 2MP Camera
  • LTS LTH-301M-WIFI PoE Commercial Doorbell with Card Reader and 2MP Camera
  • LTS LTH-301M-WIFI PoE Commercial Doorbell with Card Reader and 2MP Camera
  • LTS LTH-301M-WIFI PoE Commercial Doorbell with Card Reader and 2MP Camera
  • LTS LTH-301M-WIFI PoE Commercial Doorbell with Card Reader and 2MP Camera
$331.99
Free shipping over $300 Free Shipping
Technical Support Technical Support
2 Year Warranty 2 Year Warranty
  • Access Control Type : Video Doorbell Camera

Customers Also Viewed

Hikvision DS-HD1 3MP Outdoor Wi-Fi Smart Doorbell Camera

Hikvision DS-HD1 3MP Outdoor Wi-Fi Smart Doorbell Camera

Brand: Hikvision

Part Number: DS-HD1
$116.74
  • Compression : H.264,
  • Field of View (Horizontal) : 105°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 2.2mm Lens
  • Sensor Size : 1/2.8" Sensor
  • Max. Storage Capacity : 128 GB Storage Capacity
  • Dimensions : 130 x 46.3 x 21.5 mm (5.12 x 1.83 x 0.85 in)
  • Protection Code : IP65
  • Environmental : Outdoor
  • Sensor Size : 1/2.8"
  • Aperture : F2.4
  • Access Control Type : Video Doorbell Camera
3MP 3MP
16ft 16ft Night Vision
​LTS Security LTB349

LTS LTB349 Angled Ceiling Mount

Brand: LTS Security

Part Number: LTB349
$23.54
  • Color : White
  • Material : Plastic
  • Environmental : Indoor and Outdoor
Mount & Bracket Mount & Bracket
White White
Plastic Plastic
LTS LTB342-110 Wall Mount Bracket

LTS LTB342-110 Wall Mount Bracket

Brand: LTS Security

Part Number: LTB342-110
$49.44
  • Dimensions : 122 x 120 x 169 mm (4.8 x 4.7 x 6.7 in)
  • Material : Aluminum
  • Mount Type : Wall Mount
Mount & Bracket Mount & Bracket
Aluminum Aluminum
LTS LTB347 Wire Intake Box

LTS LTB347 Wire Intake Box

Brand: LTS Security

Part Number: LTB347
$23.54
  • Dimensions : 111 x 43.6 mm (4.4 x 1.7 in)
  • Color : White
  • Material : Aluminum
  • Mount Type : Back Box
Mount & Bracket Mount & Bracket
White White
Aluminum Aluminum
Discontinued
Geovision GV-Camera Reader GV-CS1320 2MP H.264 Camera Access Controller with a Built-in Card Reader 84-CS13200-0010

Geovision GV-Camera Reader GV-CS1320 2MP H.264 Camera Access Controller with a Built-in Card Reader 84-CS13200-0010

Brand: Geovision

Part Number: GV-Camera Reader
$231.40
  • Compression : MJPEG, H.264,
  • Field of View (Horizontal) : 180°Field of View
  • Max. FPS and Resolution : 15fps at 1080P
  • Lens Type : Fixed Lens
  • Lens Size : 1.7mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Dimensions : 137 x 80 x 34.5 mm (5.4 x 3.15 x 1.36 in)
  • Protection Code : IP66
  • Color : Black
  • Sensor Size : 1/2.8"
  • Access Control Type : Video Door Station
Network (IP) Network (IP)
2MP 2MP
10ft 10ft Night Vision
Black Black

Description

LTS LTH-301M-WIFI PoE Commercial Doorbell with Card Reader and 2MP Camera

The 2nd Generation Compact One-Door Terminal has all the necessary access control functions and more. Its sleek and futuristic design can fit nicely with commercial building entrances and high-end residential house gates. Below is a summary of LTH-301M-WIFI‘s product highlights.

Key Features:

  • 2MP TrueWDR IP Camera
  • Built-in Mifare Card Reader
  • Built-in 2.4GHz Wi-Fi
  • Access control functions
  • Can Control Maglocks
  • Can Control Electric Strikes
  • Standard PoE
  • Noise suppression and echo cancellation
  • Low illumination
  • Tamper-proof
  • Configuration remotely via Web
  • See and talk with visitors on app or PC Software
  • Can Work as an Intercom Outdoor Station
  • 1 Programmable Calling Button
  • Compact Design, Slim and Modern
See and Talk with Visitors Anywhere

After adding LTH-301M-WIFI under your LTS Connect App cloud account, whenever a visitor presses the call button, you will be notified by the app, and be able to see and talk with who is knocking at your door, and decide whether to grant him access.

Alternatively, you can also see and answer your visitors from your PC via NVMS V3.

LTS LTH-301M-WIFI PoE Commercial Doorbell with Card Reader and 2MP Camera
Single Door Access Controller

LTH-301M-WIFI can control maglocks and electric strikes. It can lock and open one door.

LTS LTH-301M-WIFI PoE Commercial Doorbell with Card Reader and 2MP Camera
Unlock and Enter with Cards

LTH-301M-WIFI has a built-in Mifare card reader. In addition to unlocking from app or PC software, You can issue up to 256 cards to end users for access.

Unlock on Mobile App

You will get notifications from LTS Connect App on your mobile phone when some one presses the call button on LTH-301M-WIFI. You can then unlock the door on the app if you decide to let the visitor in. If an end-user forget his card but LTH-301M-WIFI is under his LTS Connect App account, he can use the app to open the door for himself.

Can be Used as an Intercom Outdoor Station

LTH-301M-WIFI can be integrated into your intercom system as an outdoor station. When the call button is pressed, it will call the indoor station and allow you to view and two-way talk with visitors.

Downloads

Datasheet LTS LTH-301M-WIFI
User Manual LTS LTH-301M-WIFI
Quick Start Guide LTS LTH-301M-WIFI
All Security BrandsClose

Specifications

Specifications



System parameters

Operation

system

Embedded Linux operation system

Operation

method

Single-button

Flash

32M, 16 M

RAM

256 M

Video Parameters

Camera

2MP HD camera

Night vision

Low illumination IR supplement mode:3 m

BLC

Support

DNR

Support

WDR

True WDR

Field of view

Horizontal: 129° Vertical: 75°

Video

compression standard



H.264

Stream

Main stream: 1080p@30fps, 720p@25fps

Sub stream: D1@25fps

Resolution

Main stream: 1920 × 1080p, 720p

Sub stream: 704 × 576

Motion

detection

Support

Anti-flicker

frequency

50 Hz, 60 Hz

Audio parameters

Audio intercom

Two-way audio communication

Audio input

Built-in omnidirectional microphone

Audio output

Built-in loudspeaker

Audio compression

standard



G.711 U

Audio compression

Rate



64 Kbps

Audio quality

Noise suppression and echo cancellation

Network parameters

Wired network

10/100 Mbps Ethernet

Network

protocol

TCP/IP, RSTP

Access control parameters

Reading

frequency

13.56 MHz

Card type

Mifare card

Relay

1

Interfaces

RS-485

1

Wi-Fi

2.4G Wi-Fi

Debugging port

1

Alarm input

4

Grounding

1

Physical button

1

TAMPER switch

1

General

Protection level

IP65

Indicator

2

Power supply

IEEE802.3af, standard PoE

12 VDC

Power

consumption

< 10 W

Working

temperature

-40° C to +53° C(-40° F to 127.4° F)

Working

humidity

10% to 95%

Installation

Surface mounting

Dimension

138 mm × 65 mm × 27 mm



All Security BrandsClose

Additional Information

Access Control Type:
Video Doorbell Camera
Warranty:
2-year Manufacturer Warranty
