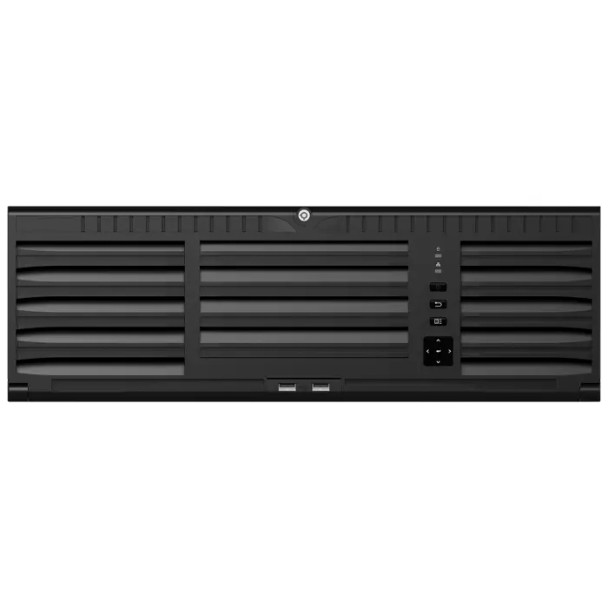

LTS LTN07256-R16(L) 256 Channel 12MP Network Video Recorder with No HDD Included

Part Number: LTN07256-R16(L)
Write a Review
$4,650.00
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.264, H.264 Plus, H.265, H.265 Plus, MJPEG,
  • Pre-Installed Storage : No HDD included
  • Hard Drive Ports : 16 SATA Ports
  • Max. Storage Capacity : 160 TB Storage Capacity
  • Environmental : Indoor

Description

LTS LTN07256-R16(L) 256 Channel 12MP Network Video Recorder with No HDD Included

The LTS LTN07256-R16(L) is a 3U enterprise-grade 256-channel network video recorder built for high-capacity surveillance environments requiring ultra-high-resolution recording, advanced storage management, and robust system reliability. Supporting up to 12MP resolution and 768Mbps incoming/outgoing bandwidth, this recorder is compatible with a wide range of third-party IP cameras via ONVIF and other standard protocols. It features dual 4K HDMI outputs, RAID 0/1/5/6/10 support, hot-swappable HDDs, and ANR technology for uninterrupted recording during network outages. With support for up to 16 internal SATA drives and one eSATA interface, the system offers a maximum of 170TB local storage. AI functions such as face detection, people counting, behavior analysis, and heat mapping are available through compatible cameras, making the LTN07256-R16(L) a powerful and scalable solution for enterprise surveillance deployments.

Key Features:

  • 256 IP Channels; supports up to 12MP resolution recording
  • No HDD Included; up to 16 SATA drives (10TB each) + 1 eSATA for recording and backup
  • Video Compression; H.265+, H.265, H.264+, H.264, MPEG4
  • Recording Bandwidth; up to 768Mbps incoming and outgoing throughput
  • RAID Support; RAID 0, 1, 5, 6, 10 with hot-swappable HDDs
  • Video Output; dual HDMI (up to 4K), VGA for main and auxiliary display
  • Decoding Capability; up to 20 channels @ 1080p simultaneously
  • AI Integration; supports VCA alarms, smart search, face detection, behavior analysis, people counting, and heat mapping via smart IP cameras
  • Network Interface; 4× 10/100/1000M RJ45 Ethernet ports
  • Alarm I/O; 16 alarm inputs and 8 outputs, expandable via optional interface board
  • Audio Support; 1 input and 1 output RCA channel, plus 2-way audio support
  • Remote Access; supports centralized management, smart playback, Web client, and mobile apps
  • USB Ports; 2 x USB 2.0 (front), 2 x USB 3.0 (rear) for data export and mouse
  • Power Supply; 100–240V AC, redundant hot-swappable power supply
  • Form Factor; 3U rackmount with front-panel service access and low-noise fan design
  • Compatible Protocols; ONVIF, RTSP, PSIA, and major brands like Hikvision, Axis, Bosch, Panasonic, Samsung, and more
Replacement of: LTN07256-R16 LTN07128-R16

Additional Information

Capacity for each disk:
up to 10TB
Channel Capacity:
256 Channels
Compression:
H.264 H.264 Plus H.265 H.265 Plus MJPEG
Dimensions:
442 × 494 × 146 mm (17.4 × 19.4 × 5.7 in)
Environmental:
Indoor
Hard Drive Ports:
16 SATA Ports
Max. Storage Capacity:
160 TB
Operating Humidity:
10% to 90% RH
Operating Temperature:
0 °C to 50 °C (32 °F to 122 °F)
Pre-Installed Storage:
No HDD included
Recorder Technology:
Network Video Recorder (NVR)
e-SATA:
e-SATA
