LTS LTN8616-P16N Platinum 86 Series 8K 16 Channels NVR with 16 Built-in PoE Ports

Brand: LTS Security
Part Number: LTN8616-P16N
Write a Review
Replacement: LTS LTN8616D-P16N 16 Channel 32MP Network Video Recorder with No HDD Included
Check other similar products:
LTS Video Recorders
LTS Platinum Series
LTS Network Video Recorders NVR
LTS Video Recorders NVR
Discontinued

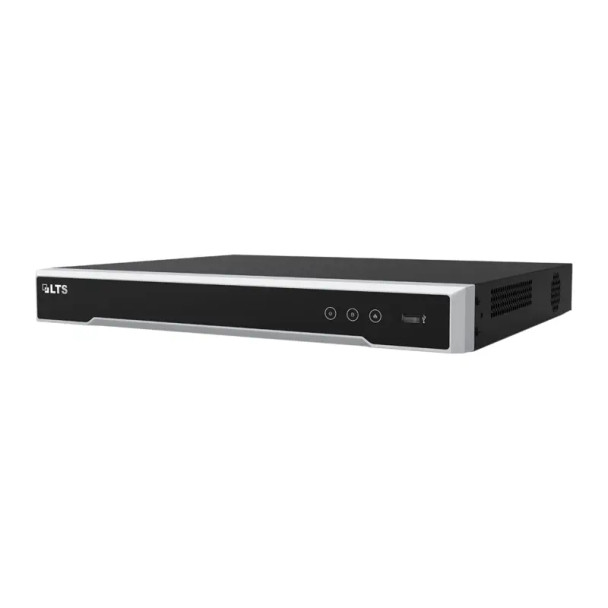

  • LTS LTN8616-P16N Platinum 86 Series 8K 16 Channels NVR with 16 Built-in PoE Ports - 1
  • LTS LTN8616-P16N Platinum 86 Series 8K 16 Channels NVR with 16 Built-in PoE Ports - 2
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.265, H.265 Plus, H.264, H.264 Plus,
  • Max. FPS and Resolution : 25fps at 3840 x 2160 (4K)
  • Video Output : 1x CVBS 1x HDMI 1x VGA
  • Max. Recording Resolution : 32MP
  • Hard Drive Ports : 2 SATA Ports
  • Max. Storage Capacity : 28 TB Storage Capacity
  • Color : Black
  • Environmental : Indoor
  • Number of PoE Ports : 16 PoE Ports

Related Products

LTS VSN7216-P16 16 Channel 4K Network Video Recorder with 16 Ports Built-in PoE - 1

LTS VSN7216-P16 16 Channel 4K Network Video Recorder with 16 Ports Built-in PoE

VSN7216-P16
$340.98
  • Compression : H.265, H.264, Ultra 265,
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x VGA 1x HDMI
  • Max. Recording Resolution : 8MP (4K)
  • Hard Drive Ports : 2 SATA Ports
  • Max. Storage Capacity : 20 TB Storage Capacity
  • Color : Black
  • Environmental : Indoor
  • Number of PoE Ports : 16 PoE Ports
Free shipping over $300 Free Shipping
Network Video Recorder (NVR) Network Video Recorder (NVR)
Black Black
LTS LTN8716D-P16N Platinum 16 Channel 4K NVR with 16 Built-in PoE Ports, Up to 12MP Recording, No Hard Drive Included - 1

LTS LTN8716D-P16N Platinum 16 Channel 4K NVR with 16 Built-in PoE Ports, Up to 12MP Recording, No Hard Drive Included

LTN8716D-P16N
$497.37
  • Compression : H.265, H.265 Plus, H.264, H.264 Plus,
  • Max. FPS and Resolution : 30fps at 12MP (4K)
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x HDMI 1x VGA
  • Max. Recording Resolution : 12MP (4K)
  • Hard Drive Ports : 2 SATA Ports
  • Max. Storage Capacity : 20 TB Storage Capacity
  • Color : Black
  • Environmental : Indoor
  • Number of PoE Ports : 16 PoE Ports
Free shipping over $300 Free Shipping
Network Video Recorder (NVR) Network Video Recorder (NVR)
Black Black
LTS LTN8708D-P8N 8 Channel 12MP 4K NVR with 8 PoE Ports, MD 2.0 Human and Vehicle Detection, Platinum - 1

LTS LTN8708D-P8N 8 Channel 12MP 4K NVR with 8 PoE Ports, MD 2.0 Human and Vehicle Detection, Platinum

LTN8708D-P8N
$410.66
  • Compression : H.265, H.265 Plus, H.264, H.264 Plus, MJPEG,
  • Max. FPS and Resolution : 30fps at 3840 x 2160 (4K)
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x VGA 1x HDMI
  • Max. Recording Resolution : 12MP (4K)
  • Hard Drive Ports : 2 SATA Ports
  • Max. Storage Capacity : 20 TB Storage Capacity
  • Color : Black
  • Environmental : Indoor
  • Number of PoE Ports : 8 PoE Ports
Free shipping over $300 Free Shipping
Network Video Recorder (NVR) Network Video Recorder (NVR)
Black Black

Description

LTS LTN8616-P16N Platinum 86 Series 8K 16 Channels NVR with 16 Built-in PoE Ports

Key Features:

  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 16-ch IP camera inputs
  • Up to 16-ch@4 MP decoding capacity
  • Up to 256 Mbps incoming bandwidth
Professional and Reliability
  • H.265+ compression effectively reduces the storage space by up to 75%
  • Dual-stream recording saves bandwidth
  • Adopt stream over TLS encryption technology which provides more secure stream transmission service
  • Support double verification for playback and downloading
HD Video Output
  • Provide independent HDMI and VGA outputs
  • HDMI video output at up to 8K resolution
Storage and Playback
  • Up to 2 SATA interfaces for up to 14TB per HDD
  • 16-ch synchronous playback
Smart & POS Function
  • Support multiple VCA (Video Content Analytics) events
  • Configurable special camera smart functions, such as motion, line crossing, intrusion, heat map, LPR etc.
  • POS information overlay on live view and playback, and POS triggered recording and alarm
Network & Ethernet Access
  • 16 independent PoE network interfaces
  • 1 self-adaptive 10/100/1000 Mbps Ethernet interfaces
  • PT Cloud & DDNS (Dynamic Domain Name System) for easy network management
  • Smooth streaming technology
  • Support web access without plug-in
Replacement of: LTN8616-P16

Downloads

Popular Search

LTS Video Recorders
LTS Platinum Series
LTS Network Video Recorders NVR
LTS Video Recorders NVR

Additional Information

Alarm Input:
4 Channel
Alarm Output:
1 Channel
Audio Capability:
Two-Way Audio
Audio Compression:
G.711ulaw G.711alaw G.722 G.726 AAC MP2L2
Audio Input:
1x RCA
Audio Output:
1x RCA
Capacity for each disk:
up to 14TB
Certifications:
FCC CE
Channel Capacity:
16 Channels
Color:
Black
Compression:
H.265 H.265 Plus H.264 H.264 Plus
Connection Type:
Wired
DDNS Functionality:
DDNS
Dimensions:
385 x 315 x 52 mm (15.2 x 12.4 x 2.0 in)
Environmental:
Indoor
Hard Drive Ports:
2 SATA Ports
LED Indicator:
HDD LED Power LED Status LED
Max Power Consumption:
15 Watts
Max. FPS and Resolution:
25fps at 3840 x 2160 (4K)
Max. Incoming Bandwidth:
256Mbps
Max. Recording Resolution:
32MP
Max. Storage Capacity:
28 TB
Mounting:
Rack Mount Desktop Mount
Network Interface:
2x RJ-45 10M/100M/1000M self-adaptive Ethernet
Number of PoE Ports:
16 PoE Ports
Operating Humidity:
10% to 90%
Operating Temperature:
-10 °C to 55 °C (14 °F to 131 °F)
Outgoing Bandwidth:
256 Mbps
Power Supply:
100 to 240 V AC
Product Series:
LTS Platinum Series
Rack Unit (U):
1.5U
Recorder Technology:
Network Video Recorder (NVR)
Remote Users:
Up to 128
Synchronous Playback:
16 Channel
USB Interface:
1x USB 2.0 1x USB 3.0
Video Output:
1x CVBS 1x HDMI 1x VGA
