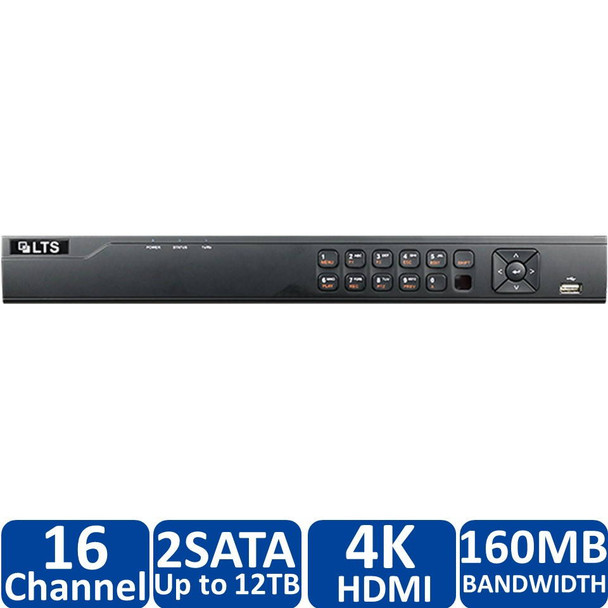

LTS LTN8716K-P16 16 Channel 4K Network Video Recorder

(No reviews yet) Write a Review

SKU:: LTN8716K-P16
UPC:: 7608537804400

$467.74

Free Shipping

Technical Support

3 Year Warranty

Key Features:

Compression : MPEG4, H.265, H.264 Plus, H.264,
Pre-Installed Storage : No HDD included
Video Output : 1x VGA 1x HDMI
Max. Recording Resolution : 8MP (4K)
Hard Drive Ports : 2 SATA Ports
Max. Storage Capacity : 12 TB Storage Capacity
Dimensions : 380 x 315 x 53 mm (15 x 12.4 x 2.0 in)
Color : Black
Number of PoE Ports : 16 PoE Ports

Description
Specifications
Additional Information

Description

LTS LTN8716K-P16 16 Channel 4K Network Video Recorder

This NVR supports 8.3MP resolutions and below. When viewing multiple channels simulaneiously, 2-ch @ 4K, or 8-ch @1080p. All recordings will still be at Max resolution.

Key features:

16 Channel Network Video Recorder
HDD Options available
Platinum Series
Support Live View,
Playback up to 4K(8MP) IP Camera
160MB Bandwidth
1U Chassis
16 Built-in PoE
4K (3840x2160) HDMI Video Output
2 SATA up to 12TB
H.265/H.264/H.264+/MPEG4

Downloads

Datasheet lts-ltn8716k-p16-A1.pdf

Quick Start Guide lts-neutral_quick_start_guide_of_87xxk-p_88xxk_and_88xxk-p_series_nvr0523-A1-A1.pdf

View AllClose

Specifications

Recorder Series

Platinum Series

Recorder Channel

16-Channel

Recorder Case

1U Case

Recorder Technology

IP / NVR

Featured Product

Video

Specifications

Video/Audio Input
IP Video Input	16-CH
Two-Way Audio Input	1-CH, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming Bandwidth	160Mbps
Outgoing Bandwidth	160Mbps
Remote Connection	128
Video/Audio Output
Recording Resolution	8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output	4K (3840 × 2160)/20Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output	1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Output	1-CH, RCA (Linear, 1kΩ)
Decoding
Decoding Format	H.265/H.264/H.264+/MPEG4
Recording Resolution	8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	16 -ch
Capability	2-ch @ 4K, or 8-ch @1080p
Hard Disk
SATA	2 SATA Interfaces for 2 HDDs
Capacity	Up to 6TB for Each Disk
External Interface
Network Interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
USB Interface	1 × USB 2.0 and 1 × USB 3.0
Alarm In/Out	4/1
PoE
Interface	16RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
Max. Power	≤200W
Supported Standard	IEEE 802.3 af/at
General
Power Supply	100~240V AC
Consumption	≤ 15W
Working Temperature	14°F - 131°F(-10 °C ~ +55 °C)
Working Humidity	10% - 90%
Casing	15-inch rack-mounted 1U chassis
Dimension	380 × 315× 52 mm (15" × 12.4" × 2.0")
Weight	≤ 1 kg (2.2 lb)

View AllClose

Additional Information

4K Support:
Alarm Input:	4 Channel
Alarm Output:	1 Channel
Audio Capability:	Two-way Audio
Audio Input:	1x RCA
Channel Capacity:	16 camera channels
Color:	Black
Compression:	MPEG4 H.265 H.264 Plus H.264
Dimensions:	380 x 315 x 53 mm (15 x 12.4 x 2.0 in)
Hard Drive Ports:	2 SATA Ports
Max. Incoming Bandwidth:	160Mbps
Max. Recording Resolution:	8MP (4K)
Max. Storage Capacity:	12 TB
Network Interface:	1x RJ-45 1000 Mbps Port
Number of PoE Ports:	16 PoE Ports
Outgoing Bandwidth:	160 Mbps
Power Supply:	100 to 240 V AC
Pre-Installed Storage:	No HDD included
Protocols:	TCP/IP DHCP PT CLOUD DNS DDNS NTP SADP SMTP NFS iSCSI UPnP HTTPS
Rack Unit (U):	1U
Recorder Technology:	Network Video Recorder (NVR)
Remote Users:	Up to 128
Synchronous Playback:	16 Channel
USB Interface:	1x USB 2.0 1x USB 3.0
Video Output:	1x VGA 1x HDMI
Warranty:	3-year Manufacturer Warranty
e-SATA:
ePoE Technology:
