LTS LTN8964-8 64 Channel H.265 4K Network Video Recorder, Platinum Enterprise Level, HDD Options Available

Part Number: LTN8964-8
Write a Review
  • LTS LTN8964-8 64 Channel H.265 4K Network Video Recorder, Platinum Enterprise Level, HDD Options Available
  • LTS LTN8964-8 64 Channel H.265 4K Network Video Recorder, Platinum Enterprise Level, HDD Options Available
  • LTS LTN8964-8 64 Channel H.265 4K Network Video Recorder, Platinum Enterprise Level, HDD Options Available
  • LTS LTN8964-8 64 Channel H.265 4K Network Video Recorder, Platinum Enterprise Level, HDD Options Available
$1,691.94
OR
Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265, H.264, H.265 Plus, H.264 Plus,
  • Max. Recording Resolution : 12MP
  • Hard Drive Ports : 8 SATA Ports
  • Max. Storage Capacity : 80 TB Storage Capacity
  • Dimensions : 445 x 470 x 90 mm (17.5 x 18.5 x 3.5 in)
  • Color : Black

Description

LTS LTN8964-8 64 Channel H.265 4K Network Video Recorder, Platinum Enterprise Level

Key Features:

  • 64 Channel
  • Professional and Reliable
  • New logical and visualized GUI design
  • Dual-OS design to ensure high reliability of system running
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Configurable normal or hot spare working mode to constitute an N+1 hot spare system
  • Adopt stream over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol) which provides more secure stream transmission service (max. 128 Mbps TLS stream outgoing bandwidth, when RAID is enabled, it will restrict TLS stream outgoing bandwidth to 64 Mbps)
  • Up to 64-ch cameras can be connected (up to 12 MP)
  • Connectable to the third-party network cameras
  • H.265+ compression effectively reduces the storage space by up to 75%
  • Full channel recording at up to 12MP resolution
  • HDMI1/VGA1 and HDMI2/VGA2 outputs provided
  • HDMI1 Video output at up to 4K (3840 × 2160) resolution
  • HDD Options available
  • Up to 8 SATA interfaces and 1 eSATA interface for HDD connection
  • 10TB capacity for each HDD
  • 16-ch synchronous playback at up to 1080p resolution
  • Important files management
  • HDD health monitoring
  • Supports multiple VCA (Video Content Analytics) events
  • Smart search for the selected area in the video; and smart playback to improve the playback efficiency
  • Supports VCA search for fire/ship/temperature/temperature difference detection triggered video files
  • POS information overlay on live view and playback
  • POS triggered recording and alarm
  • LTS-Connect for easy network management
  • 2 Gigabit Ethernet network interfaces

Downloads

View AllClose

Specifications

Recorder SeriesPlatinum Series
Recorder Channel64-Channel
Recorder Case1.5U Case
Recorder TechnologyIP / NVR
Featured ProductNo
VideoNo
Specifications



Model



LTN8964-8



Video/Audio input



IP video input

64-ch

Up to 12 MP resolution

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)



Network

Incoming bandwidth

320 Mbps or 200 Mbps (when RAID is enabled)

Outgoing bandwidth

256 Mbps, or 200 Mbps (when RAID is enabled)

Remote connection

128



Video/

Audio output

Recording resolution

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF

/2CIF/CIF/QCIF

CVBS output (Optional)

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480



VGA1 /HDMI1 output resolution

HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz,

1280 × 720/60Hz, 1024 × 768/60Hz

VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA2 /HDMI2 output resolution

1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×

768/60Hz

Audio output

2-ch, RCA (2.0Vp-p, 1 KΩ)



Decoding

Decoding format

H.265+/H.265/H.264/H.264+/MPEG4

Live view/Playback resolution

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF

/2CIF/CIF/QCIF

Synchronous playback

16-ch

Capability

2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)

Network management

Network protocols

TCP/IP, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS



Hard disk

SATA

8 SATA interfaces for 8HDDs

eSATA

1 eSATA interface

Capacity

Up to 10TB capacity for each HDD



Disk array

Array type

RAID0, RAID1, RAID5, RAID6, RAID10

Number of arrays

4

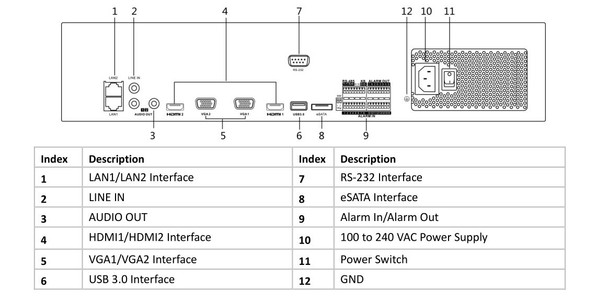

External interface



Network interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface



Serial interface

RS-232; RS-485; Keyboard



USB interface

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0



Alarm in/out

16/4



General

Power supply

100 to 240 VAC, 50 to 60 Hz

Max. Power

200 W

Consumption (without HDD)

≤ 30 W

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10 to 90 %

Dimensions(W × D × H)

445 × 470 ×90 mm (17.5"× 18.5" × 3.5")

Weight (without HDD)

≤ 8 kg (17.6 lb)



VideoNo
View AllClose

Additional Information

4K Support:
Alarm Input:
16 Channel
Alarm Output:
4 Channel
Audio Capability:
Two-way Audio
Audio Output:
2x RCA
Channel Capacity:
64 camera channels
Color:
Black
Compression:
H.265 H.264 H.265 Plus H.264 Plus
Dimensions:
445 x 470 x 90 mm (17.5 x 18.5 x 3.5 in)
Hard Drive Ports:
8 SATA Ports
Max. Incoming Bandwidth:
320Mbps
Max. Recording Resolution:
12MP
Max. Storage Capacity:
80 TB
Operating Temperature:
-10 °C to 55 °C (14 °F to 131 °F)
Outgoing Bandwidth:
256 Mbps
Power Supply:
100 to 240 V AC
Protocols:
TCP/IP DHCP LTS-Connect DNS DDNS NTP SADP SMTP NFS iSCSI HTTPS UPnP
RAID:
RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
Recorder Technology:
Network Video Recorder (NVR)
Remote Users:
Up to 128
Synchronous Playback:
16 Channel
USB Interface:
2x USB 2.0 1x USB 3.0
Warranty:
3-year Manufacturer Warranty
e-SATA:
