Description
LTS LTPTZIP4C44W-X25IR 4 MP IR and White-Light Outdoor Multi-sensor IP Security Camera, Dual Lens, 25x Optical Zoom
PTZIP4C44W-X25IR 4 MP 25 × IR Network Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 25 × optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.
Key Features:
- Captures a large area and great details at the same time
- High quality imaging with 4 MP resolution
- Excellent low-light performance
- Secures an expansive area with 25× optical zoom and 16× digital zoom
- Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
- Expansive night view with up to 328ft(100 m) IR distance & 98ft(30 m) white light
- Supports 12V DC & PoE+
Downloads
User Manual
LTS-Security-LTPTZIP4C44W-X25IR-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Aperture:
|
F1.0
F1.6
|
|
Audio Compression:
|
G.711
G.722.1
G.726
MP2L2
PCM
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Heater
|
|
Camera Style:
|
Multi-sensor
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ISAPI
SDK
ISUP
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
7217.85
|
|
Digital Zoom:
|
16
|
|
Dimensions:
|

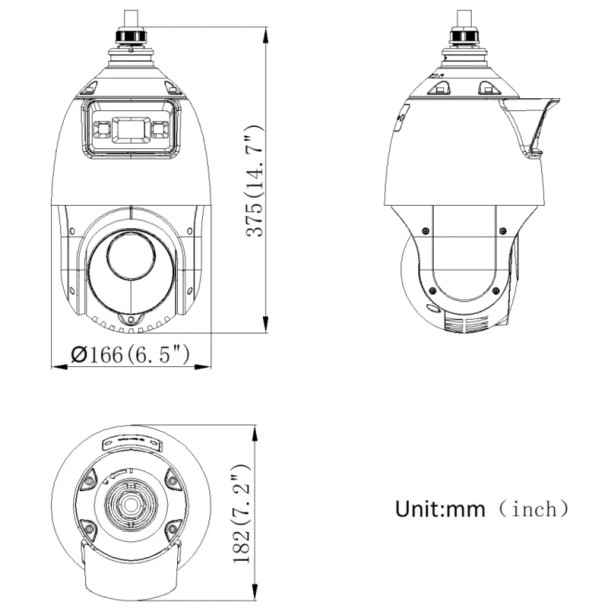

166 x 375 mm (6.5 x 14.7 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
55
2.4
96.1
|
|
Identify (ft):
|
721.78
|
|
Lens Size:
|
2.8mm
4.8~120mm
|
|
Lens Type:
|
Fixed Lens
Motorized (Automatic Zoom) Lens
|
|
Material:
|
ADC12
|
|
Max Power Consumption:
|
24 Watts
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux white light on
0.001 Lux at F1.6 AGC ON
|
|
Minimum Illumination (Color):
|
0.0005 Lux at F1.0 at AGC ON
0.005 Lux at F1.6 AGC On
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
328
98
|
|
Night Vision Type:
|
Night Vision (Color - White Light)
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
2864.17
|
|
Optical Zoom:
|
25x Optical Zoom
|
|
Power Supply:
|
12 VDC
PoE+ (IEEE802.3at)
|
|
Product Series:
|
LTS Platinum Series
|
|
Protection Code:
|
IP66
|
|
Recognize (ft):
|
1443.57
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/1-1/30000s
|
|
Surge Protection:
|
TVS 6000V
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
