Description

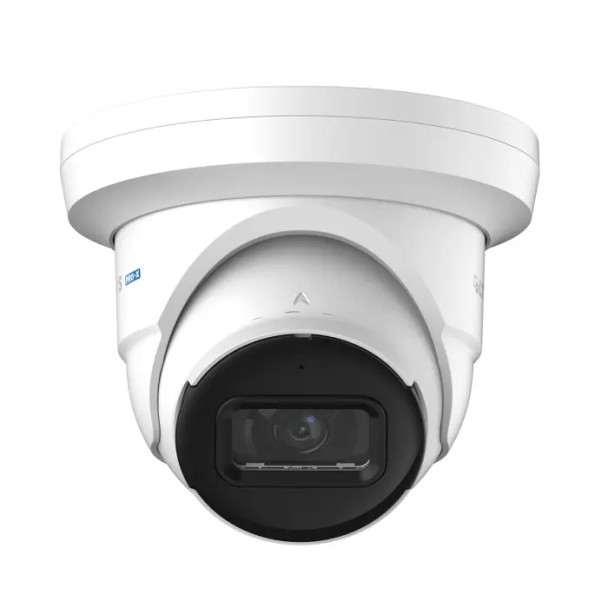

LTS LXIP1142W-28MA 4MP Outdoor Turret IP Security Camera with 2.8mm Lens and Built-In IR
The LTS LXIP1142W-28MA delivers professional 4MP surveillance with advanced Starlight technology for exceptional low-light performance. This Pro-X Lite Series turret camera features 1/3" Starlight CMOS sensor with ultra-sensitive imaging at 0.008 Lux minimum illumination, ensuring clear footage even in challenging lighting conditions. Smart encoding with H.264/H.265 compression provides optimal bandwidth efficiency while maintaining exceptional video quality up to 2688 × 1520 resolution.
Engineered for demanding outdoor environments, this camera boasts IP67 weatherproof protection and operates reliably in extreme temperatures from -40°F to 140°F. Advanced 120dB True WDR technology combined with 3D DNR provides exceptional image clarity in challenging backlight conditions, while Matrix IR illumination delivers clear night vision up to 98 feet with automatic intensity adjustment.
Professional installation is simplified with dual power options supporting both 12V DC and PoE (802.3af), along with comprehensive 3-axis adjustment for optimal positioning. Built-in microSD card slot supports up to 256GB for local edge recording, while ONVIF compliance ensures seamless integration with third-party video management systems. Intelligent analytics including intrusion and tripwire detection minimize false alarms.
Key Features:
- 4MP (2688 × 1520) Starlight imaging with 1/3" CMOS sensor; delivers exceptional detail even at 0.008 Lux minimum illumination
- Matrix IR LED illumination up to 98 feet range; automatically adjusts infrared intensity for optimal night vision performance
- 120dB True WDR with 3D DNR technology; ensures clear images in challenging backlight and low-light conditions
- Smart H.264/H.265 encoding with multiple streaming formats; reduces bandwidth usage while maintaining high video quality
- IP67 weatherproof rating with extreme temperature operation; reliable performance from -40°F to 140°F
- Built-in microSD card slot up to 256GB; provides local backup recording and edge storage capabilities
- Intelligent analytics with intrusion and tripwire detection; reduces false alarms and enables proactive security monitoring
- Dual power support with 12V DC and PoE options; simplifies installation with flexible power requirements
- ONVIF compliance with Pro-X and X Station client support; ensures compatibility with various VMS platforms
Downloads
Additional Information
Aperture:
|
F1.6
|
Camera Style:
|
Turret
|
Compression:
|
H.264
MJPEG
H.265
|
Day/Night:
|
|
Dimensions:
|
4.8x4.8x4.15in
|
Environmental:
|
Outdoor
|
Lens Size:
|
2.8mm
|
Lens Type:
|
Fixed Lens
|
Max Power Consumption:
|
6.6 Watts
|
Night Vision Range (ft):
|
98
|
Power Supply:
|
PoE
12 VDC
|
Protection Code:
|
IP67
|
Resolution:
|
4MP
|
SD Card Support:
|
|
Sensor Size:
|
1/3"
|
Sensor Type:
|
CMOS
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
