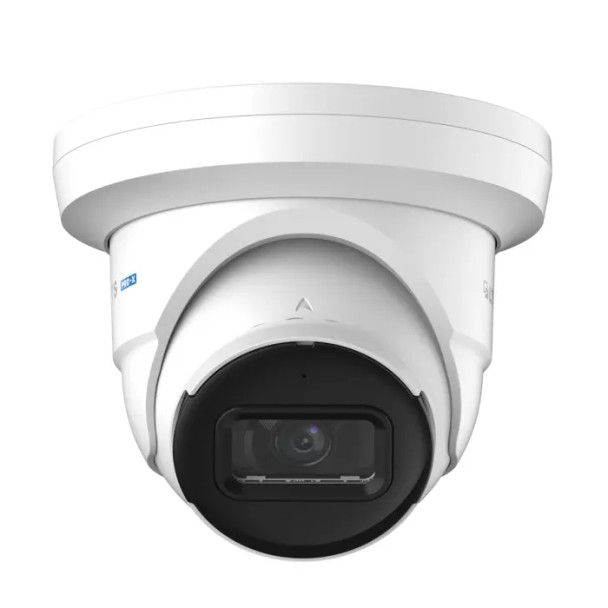

LTS LXIP3542W-MDA 4MP Outdoor Turret IP Security Camera with 3.6mm Lens and Built-In IR

Part Number: LXIP3542W-MDA
Write a Review
New Product!
$213.45

? Help me pick a security camera

Technical Support Technical Support
  • Compression : H.265, MJPEG, H.264,
  • Lens Type : Fixed Lens
  • Lens Size : 3.6mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/3" Sensor
  • Protection Code : IP67
  • Environmental : Outdoor
  • Aperture : F1.6

Description

LTS LXIP3542W-MDA 4MP Outdoor Turret IP Security Camera with 3.6mm Lens and Built-In IR

The LTS LXIP3542W-MDA delivers professional 4MP surveillance with advanced Pro-X Intelligent technology and AI-powered analytics for enhanced security monitoring. This intelligent turret camera features 1/3" Starlight CMOS sensor with ultra-sensitive imaging at 0.005 Lux minimum illumination, ensuring clear 2688 × 1520 resolution footage even in challenging lighting conditions. Smart encoding with H.264/H.265 compression provides optimal bandwidth efficiency while maintaining exceptional video quality.

Engineered with cutting-edge AI algorithms, this camera features Motion Detection 2.0 that focuses specifically on persons and vehicles, dramatically reducing false alarms. Smart VCA (Video Content Analysis) provides advanced tripwire and intrusion detection with accurate classification of vehicles and persons. The 3.6mm fixed lens delivers precise field of view coverage ideal for targeted surveillance applications.

Professional installation is simplified with dual power options supporting both 12V DC and PoE (802.3af), along with comprehensive 3-axis adjustment for optimal positioning. Built-in microSD card slot supports up to 256GB for local edge recording, while ONVIF compliance ensures seamless integration with third-party video management systems. Matrix IR illumination provides clear night vision up to 98 feet with automatic intensity adjustment.

Key Features:

  • 4MP (2688 × 1520) Starlight imaging with 1/3" CMOS sensor; delivers exceptional detail even at 0.005 Lux minimum illumination
  • Motion Detection 2.0 focusing on persons and vehicles; dramatically reduces false alarms through AI-powered classification
  • Smart VCA with tripwire and intrusion detection; provides accurate detection and classification of vehicles and persons
  • Matrix IR LED illumination up to 98 feet range; automatically adjusts infrared intensity for optimal night vision performance
  • 120dB True WDR with 3D DNR technology; ensures clear images in challenging backlight and low-light conditions
  • Fixed 3.6mm lens with precise field of view; optimized for targeted surveillance applications requiring specific coverage
  • Built-in microSD card slot up to 256GB; provides local backup recording and edge storage capabilities
  • Dual power support with 12V DC and PoE options; simplifies installation with flexible power requirements
  • ONVIF compliance with Pro-X and X Station client support; ensures compatibility with various VMS platforms

Additional Information

Aperture:
F1.6
Camera Style:
Turret
Compression:
H.265 MJPEG H.264
Day/Night:
Dimensions:
4.8x4.8x4.15in
Environmental:
Outdoor
Lens Size:
3.6mm
Lens Type:
Fixed Lens
Max Power Consumption:
7.7 Watts
Night Vision Range (ft):
98
Operating Humidity:
0% to 95% (non-condensing)
Operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Power Supply:
12 VDC PoE
Protection Code:
IP67
Resolution:
4MP
SD Card Support:
Sensor Size:
1/3"
Sensor Type:
CMOS
Technology:
Network (IP)
Wide Dynamic Range (WDR):
True WDR 120dB
