Description

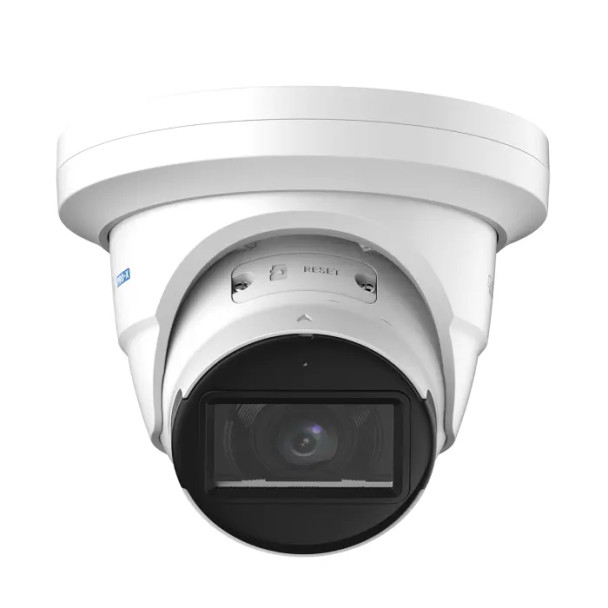

LTS LXIP3783W-MDAZ 8MP Outdoor Turret IP Security Camera with 2.7-13.5mm Lens, 4x Optical Zoom, and Built-In IR
The LTS LXIP3783W-MDAZ is a high-performance 8MP outdoor turret IP security camera designed for advanced AI surveillance and flexible monitoring applications. Featuring a 1/2.8” Starlight CMOS sensor and a 2.7-13.5mm motorized varifocal lens, this camera supports 4x optical zoom and offers a horizontal field of view from 113° to 31°. With Matrix IR LED illumination, it enables night vision up to 131 feet (40 meters), and delivers crisp 3840 × 2160 resolution video at up to 30 FPS. Its intelligent video analytics include Smart VCA and Motion Detection 2.0 with classification for vehicles and people, reducing false alerts. Built for durability, the IP67-rated turret housing operates in temperatures from -22 °F to 140 °F and supports PoE for simplified installations. Additional features include Smart H.265/H.264 compression, onboard MicroSD storage up to 256 GB, and ONVIF compliance for seamless integration into third-party systems.
Key Features:
- 8MP resolution (3840 × 2160); provides ultra-HD video at up to 30 FPS.
- 2.7-13.5mm motorized lens; supports 113° to 31° horizontal field of view.
- 4x optical zoom; enables flexible framing and detailed viewing.
- Built-in Matrix IR LEDs; delivers night vision performance up to 131 feet (40 meters).
- Starlight imaging; color performance down to 0.005 Lux.
- True WDR (120 dB) and 3D DNR; ensure clear images in challenging lighting conditions.
- AI-enhanced Smart VCA; supports tripwire, intrusion, and object classification.
- Motion Detection 2.0; focuses alerts on human and vehicle activity.
- Built-in microphone; supports audio monitoring.
- MicroSD card slot; accommodates up to 256 GB of onboard storage.
- IP67-rated turret housing; provides protection against dust, rain, and outdoor conditions.
- Smart H.265/H.264 video compression; reduces bandwidth and storage requirements.
- PoE and 12VDC power options; enable flexible deployment.
- ONVIF Profiles S, G, T compliant; ensures compatibility with third-party VMS.
- Wide operating range; functional between -22 °F and 140 °F with humidity up to 95%.
Downloads
Additional Information
|
Aperture:
|
F1.5
|
|
Camera Style:
|
Turret
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Day/Night:
|
|
|
Dimensions:
|
4.83 × Φ 5.59" (122.7 × Φ 142 mm)
|
|
Durability:
|
Weather Resistant
|
|
Environmental:
|
Outdoor
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
2.7~13.5mm
|
|
Lens Type:
|
Varifocal Lens
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
8MP (4K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-40 °C to 60 °C (-40 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
