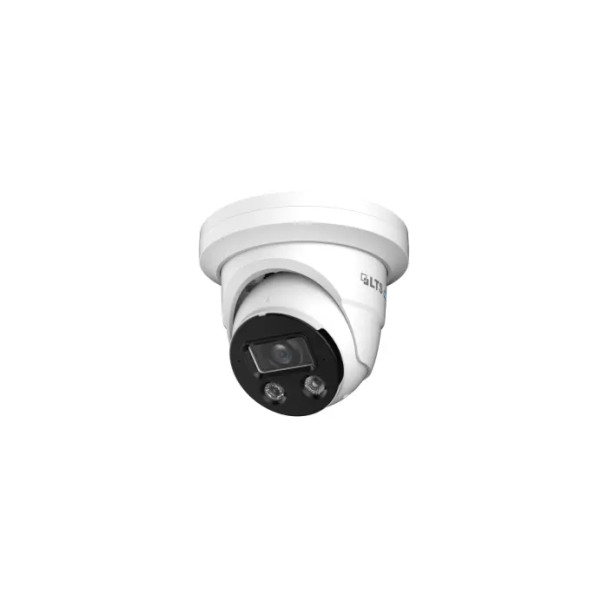

LTS LXIP3C42NWI-28SDL 4MP Outdoor Turret IP Security Camera with 2.8mm Lens, Built-In IR and White Light
The LTS LXIP3C42NWI-28SDL is a 4MP outdoor turret IP security camera from the Pro-X Intelligent Color Series, designed to provide 24/7 color surveillance with active deterrence and advanced AI-driven analytics. Equipped with a 1/2.7” Starlight CMOS sensor and a 2.8mm fixed lens, the camera offers a 101° horizontal field of view and captures high-definition video at 2688 × 1520 resolution up to 30 FPS. The integrated Matrix illuminator combines IR and warm light LEDs, providing full-color visibility up to 98 feet (30 meters) in complete darkness. Smart detection capabilities include tripwire, intrusion, and Motion Detection 2.0 with precise classification of people and vehicles. Built-in red/blue warning lights, dual microphones, and a speaker support two-way audio and active deterrence. With IP67-rated housing, PoE support, and MicroSD storage up to 256 GB, the LXIP3C42NWI-28SDL is a feature-rich camera for robust outdoor security.
Key Features:
- 4MP resolution (2688 × 1520); delivers clear video at up to 30 FPS.
- 2.8mm fixed lens; provides a 101° horizontal field of view for wide-angle monitoring.
- Built-in IR and warm light LEDs; ensures full-color imaging up to 98 feet (30 meters) in low-light or no-light conditions.
- Starlight low-light performance; down to 0.0005 Lux (color) or 0 Lux with illuminators.
- True WDR (120 dB) and 3D DNR; enhance image clarity in challenging lighting scenarios.
- Smart VCA with AI; supports tripwire, intrusion, and classification of vehicles and people.
- Motion Detection 2.0; improves detection accuracy with object-based analysis.
- Built-in red/blue lights and siren; provides visual and audio deterrence.
- Dual microphones and speaker; support real-time two-way audio communication.
- MicroSD card slot; supports onboard video storage up to 256 GB.
- Smart H.265/H.264 compression; reduces bandwidth and storage use.
- IP67-rated aluminum housing; resists harsh weather conditions.
- PoE and 12VDC power input; offers flexible installation options.
- ONVIF Profiles S, G, T compliant; ensures compatibility with major VMS platforms.
- Operating temperature range -40 °F to 140 °F; suitable for extreme outdoor environments.
Downloads
Additional Information
Aperture:
|
F1.0
|
Camera Style:
|
Turret
|
Compression:
|
H.264
H.265
MJPEG
|
Day/Night:
|
|
Dimensions:
|
124.7 mm × Φ142.0 mm (4.91" × Φ5.61")
|
Durability:
|
Weather Resistant
|
Environmental:
|
Outdoor
|
Lens Size:
|
2.8mm
|
Lens Type:
|
Fixed Lens
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
Protection Code:
|
IP67
|
Resolution:
|
4MP
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/2.7"
|
Sensor Type:
|
CMOS
|
Storage Humidity:
|
0% to 95% RH
|
Storage Temperature:
|
-40 °C to 60 °C (-40 °F to 140 °F)
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
