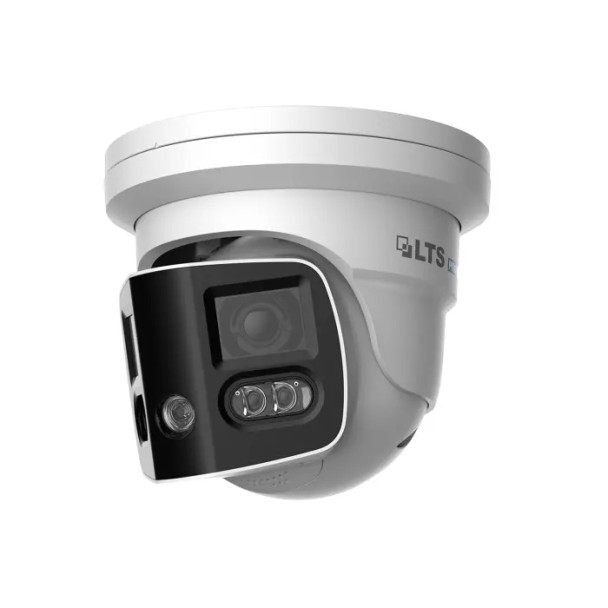

LTS LXIP3C8PWI-SDL 8MP Outdoor 180° Turret IP Security Camera with 2.8mm Lens, and Built-In IR and White Light
The LTS LXIP3C8PWI-SDL is a next-generation 8MP outdoor turret IP security camera from the Pro-X Intelligent Color Series, designed for wide-area surveillance with built-in deterrence and smart analytics. It features dual 1/2.7” Starlight CMOS image sensors and a 2.8mm fixed lens, offering an ultra-wide 180° horizontal field of view. This camera supports 4096 × 1860 resolution video at up to 20 FPS, enhanced by True WDR (120 dB), 3D DNR, and Smart H.265/H.264 compression for exceptional clarity and efficiency. The integrated Matrix illuminator combines IR and warm white LEDs for full-color and B/W night performance up to 98 feet (30 meters). It includes E-tracking to automatically zoom and follow people or vehicles that trigger alarms, and features visual and audio deterrence via a built-in siren and red/blue flashing lights. Housed in an IP67-rated casing with dual microphones, a speaker, MicroSD storage up to 256 GB, and ONVIF support, this camera is ideal for critical outdoor security scenarios.
Key Features:
- 8MP resolution (4096 × 1860); delivers high-clarity video at 20 FPS.
- 2.8mm fixed lens; offers an ultra-wide 180° horizontal field of view.
- Built-in Matrix IR and warm LEDs; supports color and B/W night vision up to 98 feet (30 meters).
- Dual Starlight CMOS sensors; provides excellent low-light performance down to 0.001 Lux.
- True WDR (120 dB) and 3D DNR; enhance image quality in high-contrast and noisy scenes.
- Smart VCA and MD 2.0; AI-based analytics for vehicle and person detection.
- E-tracking; enables real-time zoom and tracking of multiple targets.
- Built-in siren and red/blue light; provides visual and audible active deterrence.
- Two-way audio; features dual microphones and a built-in speaker.
- MicroSD card slot; supports up to 256 GB of local storage.
- IP67-rated housing; ensures durability in harsh weather conditions.
- PoE and 12VDC input; allows flexible and simplified installation.
- ONVIF Profiles S, G, T compliant; compatible with major VMS platforms.
- Advanced event detection; supports tampering, motion, scene change, and external triggers.
- Compact turret design; ideal for wall, ceiling, or junction box mounting.
Downloads
Additional Information
Aperture:
|
F1.4
|
Camera Style:
|
Turret
|
Compression:
|
H.264
H.265
MJPEG
|
Day/Night:
|
|
Dimensions:
|
5.91 × Φ 5.59" (150.2 × Φ 142.0 mm)
|
Durability:
|
Weather Resistant
|
Iris:
|
Fixed Iris
|
Lens Size:
|
2.8 mm
|
Lens Type:
|
Fixed Lens
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
Protection Code:
|
IP67
|
Resolution:
|
8MP (4K)
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/2.7"
|
Sensor Type:
|
CMOS
|
Storage Humidity:
|
0% to 95% RH
|
Storage Temperature:
|
-40 °C to 60 °C (-40 °F to 140 °F)
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
