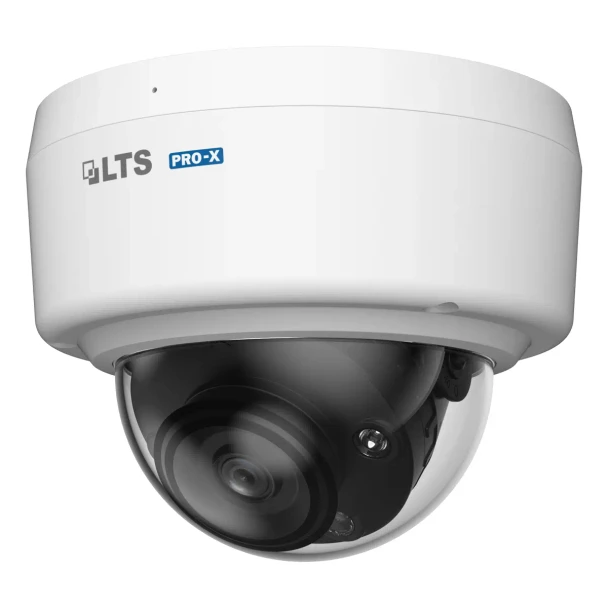

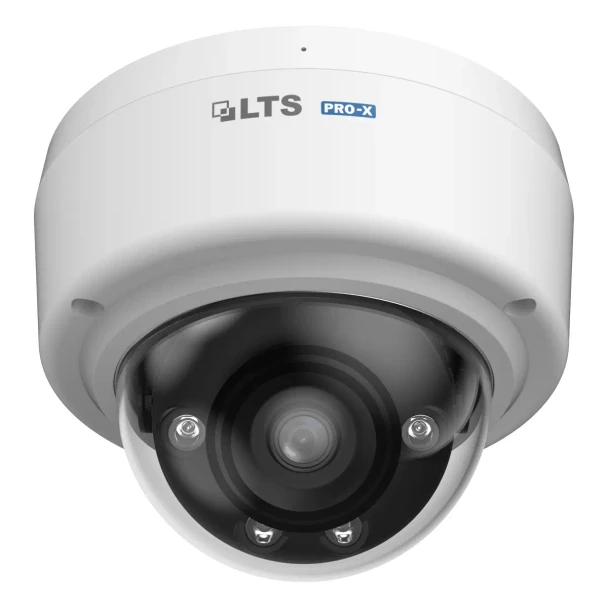

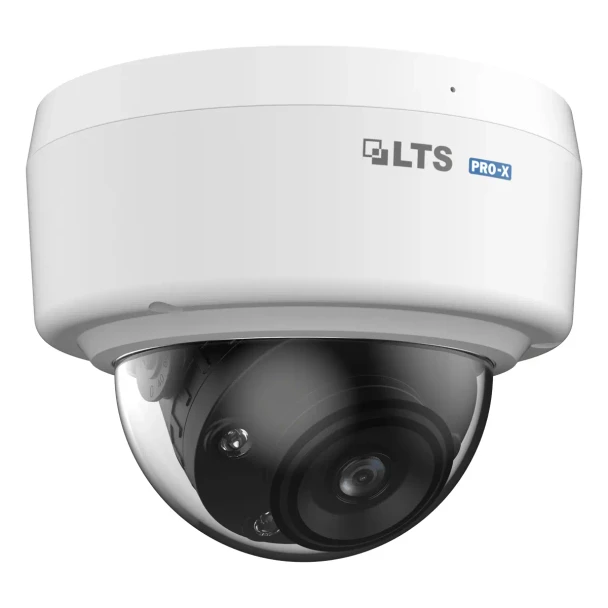

LTS LXIP7542WE-28MDA 4MP Outdoor Dome IP Security Camera with 2.8mm Lens and Built-In IR and Warm Light

LTS LXIP7542WE-28MDA 4MP Outdoor Dome IP Security Camera with 2.8mm Lens and Built-In IR and Warm Light

The LTS LXIP7542WE-28MDA is a 4-megapixel outdoor dual-light fixed dome network camera designed for compact installations where reliable detection and clear color imaging at night both matter. It pairs a 1/2.9" CMOS sensor with a 2.8mm F1.6 fixed lens to capture a 95° horizontal field of view, making it well suited for entrances, retail floors, parking lots, and residential perimeters.

Dual illumination combines 2 built-in warm white lights with 2 IR lights for up to 100 feet of usable range, letting installers choose true color at night, conventional infrared, or smart switching between them based on scene activity. With 120dB Wide Dynamic Range and 3D Noise Reduction, the camera holds detail in scenes with strong backlight or mixed lighting, and a minimum illumination down to 0.0005 lux (B/W) keeps footage usable in extreme low-light.

On the analytics side, MD 2.0 motion detection focuses on humans and vehicles to reduce false alarms, while VCA delivers line crossing and intrusion events at the edge. A built-in microphone, microSD card slot up to 256GB, and dual power options (12 VDC and PoE 802.3af) round out a feature set targeted at small-to-medium installs. The IP67 and IK10 rated metal housing protects against weather and vandalism in outdoor environments.

Key Features:

• 4MP (2688x1520) Resolution at up to 20fps; delivers high-detail evidence-grade video.
• 2.8mm F1.6 Fixed Lens with 95° Horizontal Field of View; wide-area coverage for entrances, lobbies, and parking lots.
• 1/2.9" CMOS Sensor with 120dB True WDR; preserves detail in scenes with strong backlight or mixed lighting.
• Dual Light: 2 Warm White Lights + 2 IR Lights up to 100ft; choose true color at night or conventional IR illumination.
• Auto True Day/Night with ICR; ensures accurate color by day and clean B/W by night automatically.
• 0.005 Lux Color and 0.0005 Lux B/W Minimum Illumination; usable footage even in near-darkness.
• Smart Analytics with Line Crossing, Intrusion, MD 2.0 (Human/Vehicle); reduces false alarms from animals, foliage, and shadows.
• Built-in Microphone and Audio I/O; captures audio without external mic for richer event context.
• microSD Slot up to 256GB; on-camera recording for redundancy if the network drops.
• Dual Power: 12 VDC and PoE (IEEE 802.3af); single-cable PoE install or low-voltage local supply.
• IP67 and IK10 Metal Housing; weather-sealed and vandal-resistant for unprotected outdoor mounts.
• H.265 / H.264 / MJPEG with Dual Streaming; reduces bandwidth and storage demands.
• ONVIF Profile S, G, T Compliant; integrates with virtually any modern VMS.
• -40°F to +140°F Operating Range; reliable performance in harsh climates.
