Description

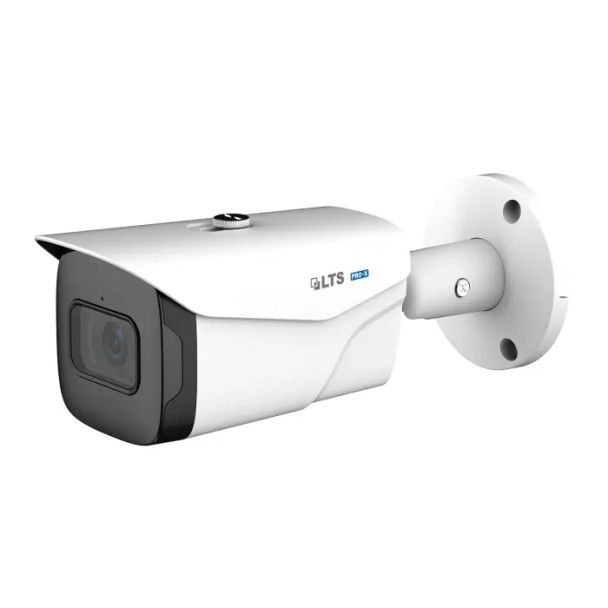

LTS LXIP8182W-28M 8MP Outdoor Bullet IP Security Camera with 2.8mm Lens and Built-In IR
The LTS LXIP8182W-28M is an 8MP outdoor bullet IP security camera from the Pro-X Lite Series, offering clear video recording and smart detection features in a durable weatherproof housing. It is equipped with a 1/2.7” Starlight CMOS image sensor and a 2.8mm fixed lens, providing a wide 105° horizontal field of view and capturing video at up to 3840 × 2160 resolution. The built-in Matrix IR LEDs enable night vision up to 100 feet (30 meters), while True WDR (120 dB) and 3D DNR ensure sharp, balanced images in challenging lighting conditions. Smart H.264/H.265 compression improves storage efficiency, and built-in video analytics like tripwire and intrusion detection help identify critical events. With a compact metal bullet housing rated IP67, this camera is well-suited for outdoor environments and offers flexible installation using PoE or 12 VDC. Local storage up to 256 GB is supported via MicroSD card, and ONVIF compliance ensures seamless VMS integration.
Key Features:
- 8MP resolution (3840 × 2160); records ultra-high-definition video at up to 15 FPS.
- 2.8mm fixed lens; delivers a wide 105° horizontal field of view.
- Built-in IR illumination; supports night vision up to 100 feet (30 meters).
- Starlight imaging; performs in low-light down to 0.009 Lux (color), 0 Lux with IR.
- True WDR (120 dB) and 3D DNR; improve image clarity in bright and dark areas.
- Smart analytics; includes tripwire and intrusion detection.
- MicroSD card slot; supports onboard storage up to 256 GB.
- Metal bullet housing; IP67-rated for harsh outdoor weather protection.
- PoE (802.3af) and 12 VDC power input; supports flexible installation.
- Smart H.265/H.264 compression; reduces bandwidth and storage requirements.
- ONVIF Profiles S, G, T compliant; integrates with third-party VMS platforms.
- Operating temperature range -40 °F to 140 °F; ensures reliable performance outdoors.
- Compact and lightweight design; ideal for wall or junction box mounting.
Downloads
Additional Information
Aperture:
|
F2.0
|
Camera Style:
|
Bullet
|
Compression:
|
H.264
H.265
MJPEG
|
Day/Night:
|
|
Dimensions:
|
7.9 × 2.8 × 2.8'' (200.3 × 70.7 × 71.8 mm)
|
Durability:
|
Weather Resistant
|
Environmental:
|
Outdoor
|
Lens Size:
|
2.8 mm
|
Lens Type:
|
Fixed Lens
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
Protection Code:
|
IP67
|
Resolution:
|
8MP
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/2.7"
|
Sensor Type:
|
CMOS
|
Storage Humidity:
|
0% to 95% RH
|
Storage Temperature:
|
-40 °C to 60 °C (-40 °F to 140 °F)
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
