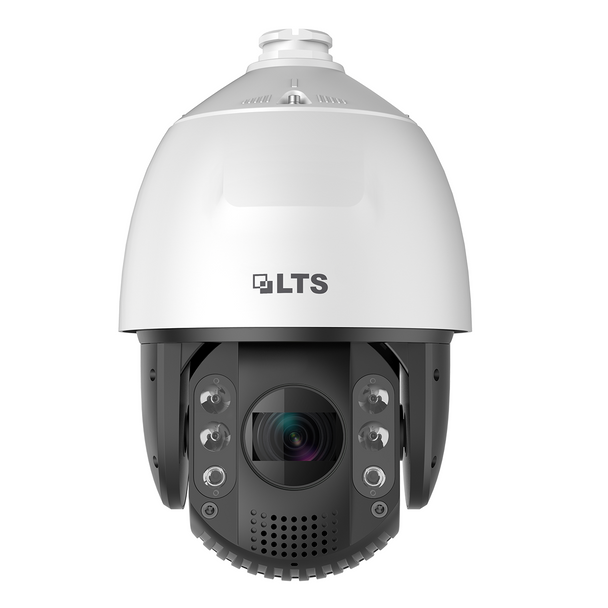

LTS PTZIP778NW-X25IR 8MP IR Outdoor PTZ IP Security Camera, 25x Optical Zoom, 5.9~147.5mm Lens, White - LTPTZIP778NW-X25IR
LTS PTZIP778NW-X25IR 8 MP 25× IR Network Speed Dome adopts 1/1.8" progressive scan CMOS chip. With the 25× optical zoom lens, the camera offers more details over expansive areas.
This camera can be used for rivers, roads, railways, airports, squares, parks, scenic spots, venues, etc. LTS MD2.0 technology brings human and vehicle targets classification alarms video surveillance devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness
Key Features:
- 1/1.8" Progressive Scan CMOS
- High Quality 8 MP Resolution
- Excellent Low-Light Performance
- Active Deterrence: The white flashing light and audible warning can be triggered by certain events
- 25× optical zoom and 16× digital zoom
- Expansive night view with up to 200 m IR distance
- Focuses on human and vehicle targets classification
- Face capture: Up to 5 faces captured at the same time
Replacement of:
LTPTZIP688NW-X36
PTZIP688X36
Downloads
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
2 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Alternative SKUs:
|
PTZIP778NW-X25IR
|
|
Aperture:
|
F1.5
|
|
Audio Compression:
|
AAC
G.711alaw
G.711ulaw
G.722.1
G.726
MP2L2
PCM
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
Built-in Speaker
|
|
Built-in Features:
|
Built-in Heater
|
|
Camera Style:
|
PTZ
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ISAPI
ISUP
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SDK
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
6715.5
|
|
Digital Zoom:
|
16
|
|

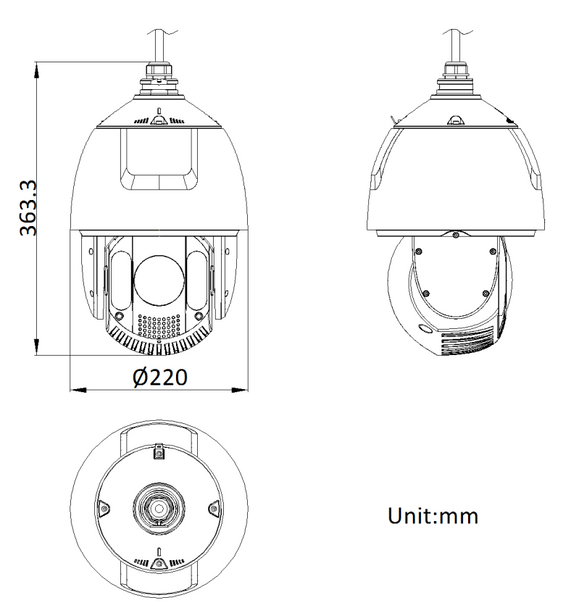

Dimensions:
|
220 x 363.3 mm (8.66 x 13.91 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
2.6
50.8
|
|
Identify (ft):
|
671.6
|
|
Lens Size:
|
5.9~147.5mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
ADC12
|
|
Max Power Consumption:
|
42 Watts
|
|
Max. FPS and Resolution:
|
25fps at 3840 x 2160 (4K)
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux
0.001 Lux at F1.5 AGC ON
|
|
Minimum Illumination (Color):
|
0.005 Lux at F1.5 AGC On
|
|
Network Interface:
|
1x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
|
|
Night Vision Range (ft):
|
660
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
2665
|
|
Optical Zoom:
|
25x Optical Zoom
|
|
Power Supply:
|
24 VAC
Hi-PoE
|
|
Protection Code:
|
IK10
IP66
|
|
Recognize (ft):
|
1343.2
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
8MP (4K)
|
|
S/N Ratio:
|
>52 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/30000s
|
|
Surge Protection:
|
TVS 6000V
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Web Browser:
|
Chrome
Firefox
Internet Explorer
Safari
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
