LTS LTD9224T-FA Enterprise Level 24 Channel HD-TVI Digital Video Recorder

Part Number: LTD9224T-FA
Write a Review
Replacement: There is no direct replacement. Ask a representator.
Discontinued
  • LTS LTD9224T-FA Enterprise Level 24 Channel HD-TVI Digital Video Recorder
  • LTD9224T-FA
  • 3 Years Limited Manufacturer Warranty
$966.13
Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.264,
  • Pre-Installed Storage : No HDD included
  • Video Output : 2x HDMI 1x VGA
  • Max. Recording Resolution : 2MP 1MP
  • Hard Drive Ports : 8 SATA Ports
  • Max. Storage Capacity : 48 TB Storage Capacity

Customers Also Viewed

LTS LTD8424T-FA 24 Channel HD-TVI Digital Video Recorder

LTS LTD8424T-FA 24 Channel HD-TVI Digital Video Recorder

Brand: LTS Security

Part Number: LTD8424T-FA
$677.42
  • Compression : H.264,
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x HDMI 1x VGA
  • Max. Recording Resolution : 2MP
  • Hard Drive Ports : 4 SATA Ports
  • Max. Storage Capacity : 24 TB Storage Capacity
  • Dimensions : 445 x 390 x 70 mm (17.5 x 15.3 x 2.7 in)
  • Color : Black
Free shipping over $300 Free Shipping
Digital Video Recorder (DVR) Digital Video Recorder (DVR)
Black Black
LTS LTD8316K-ET 16-Channel H.265+ HD-TVI Digital Video Recorder - No HDD included

LTS LTD8316K-ET 16-Channel H.265+ HD-TVI Digital Video Recorder

Brand: LTS Security

Part Number: LTD8316K-ET
$274.19
  • Compression : MJPEG, H.264, H.264 Plus, H.265 Plus, H.265,
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x VGA 1x HDMI
  • Hard Drive Ports : 2 SATA Ports
  • Max. Storage Capacity : 16 TB Storage Capacity
Digital Video Recorder (DVR) Digital Video Recorder (DVR)

Description

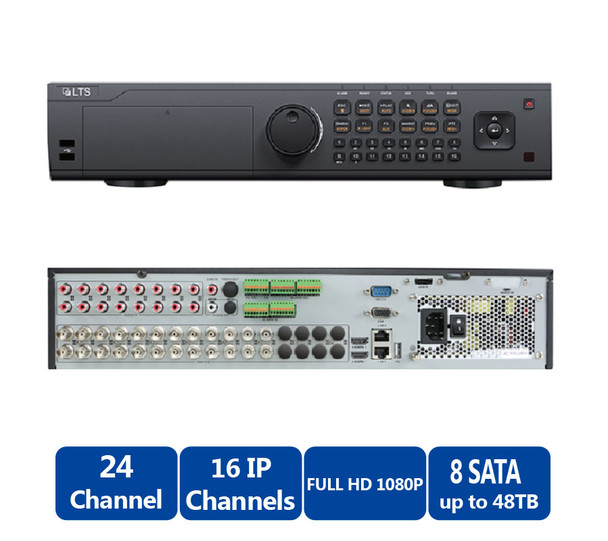

LTS LTD9224T-FA Enterprise Level 24 Channel HD-TVI Digital Video Recorder

The LTD9224T-FA HD-TVI DVR is an Enterprise-level DVR intended for heavy-duty use. This DVR comes packed with channels, capable of supporting three different recording technologies simultaneously: HD-TVI, analog, and IP. 24 HD-TVI and analog channels can record up to 15fps @ 1080p or 30fps @ 720p. 16 IP Channels can record up to 30fps @ 1080p. Additionally, there are up to 128 connections for remote viewing depending on the users' bandwidth/internet upload speeds. You may also view through mobile devices by using NVMS7000/NVMS7000HD. 24 channels of synchronous playback allows the user to view multiple cameras at the same time, getting multiple angles on a given object.

If you are looking to record large amounts of footage, this is your DVR: it comes equipped with 8 SATA hard drives ports that can potentially total up to 48TB of storage. H.264 video and G.711u audio compression will make file sizes manageable, maximizing efficiency in space usage.

Key Features:

  • 1080p HD @ 15fps
  • 720p HD @ 30fps
  • 24 Channel Analog & HD-TVI
  • 16 Channel IP Camera Input
  • HDD Options available
  • Up to 24ch Synchronized Playback
  • 1 VGA/2 HDMI Video Output
  • Streams Video/Video & Audio
  • 128 Remote Connections
  • H.264 Video Compression
  • 8 SATA up to 48TB Storage
  • Three 2.0 USB ports
  • Audio In/Out 16ch/1ch, RCA
  • Alarm In/Out 16/8
  • 17.5″(W) x 18.5″(D) x 3.5″(H)
  • 17.6lbs
  • Power Supply: 100 ~ 240VAC, 47 ~ 63HZ
  • Consumption: ≤ 60W

This product is also associated with:
LTS Security Digital Video Recorders DVR

Downloads

View AllClose

Additional Information

4K Support:
Channel Capacity:
24 camera channels
Compression:
H.264
Hard Drive Ports:
8 SATA Ports
Max. Recording Resolution:
2MP 1MP
Max. Storage Capacity:
48 TB
Pre-Installed Storage:
No HDD included
Rack Unit (U):
2U
Recorder Technology:
Digital Video Recorder (DVR)
Video Output:
2x HDMI 1x VGA
Warranty:
3-year Manufacturer Warranty
e-SATA:
ePoE Technology:
