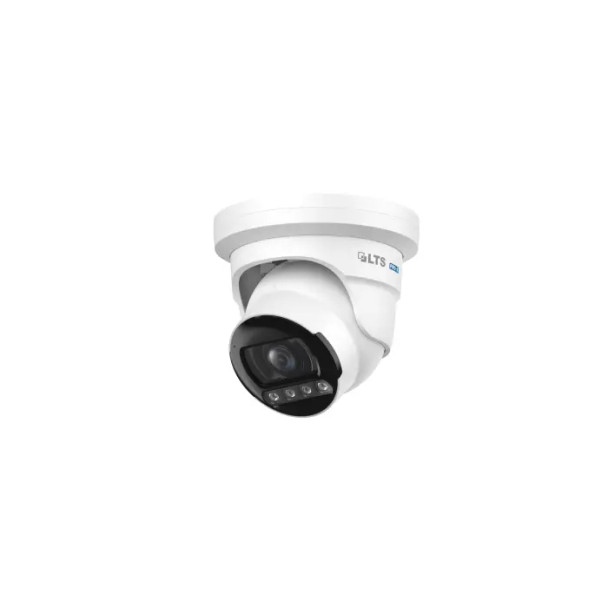

LTS LXIP3C83WI-MDAZ 8MP Outdoor Turret IP Security Camera with 2.7-12mm Lens and Built-In IR
The LTS Security LXIP3C83WI-MDAZ delivers exceptional 8MP (4K) resolution surveillance with advanced Smart Dual Light technology. This professional-grade turret IP camera features a motorized 2.7-12mm lens providing flexible field of view adjustment from 112° to 48° horizontal coverage. The innovative dual illumination system combines IR and warm light LEDs with up to 131ft range, ensuring clear imaging in complete darkness while offering color night vision capabilities.
Engineered for demanding outdoor applications, this camera features IP67 weatherproof protection and operates reliably in temperatures from -22°F to +140°F. The 1/1.8" CMOS sensor with 120dB True WDR technology captures detailed footage even in challenging lighting conditions. Advanced intelligent analytics including MD2.0 human and vehicle identification, face detection, and people counting provide comprehensive security monitoring with reduced false alarms.
Installation flexibility is enhanced through multiple power options including 12VDC, standard PoE (802.3af), and X-PoE support. The camera includes built-in microphone, alarm I/O interfaces, and supports up to 512GB micro SD card storage for local recording backup. Professional features like 3D noise reduction, privacy masking, and ONVIF compliance ensure seamless integration with existing security systems.
Key Features:
- 8MP (3840 × 2160) resolution at 30fps; delivers ultra-high definition video for detailed evidence capture
- Motorized 2.7-12mm lens with 112°-48° horizontal field of view; enables precise area coverage adjustment without physical repositioning
- Smart Dual Light technology with IR and warm LEDs up to 131ft range; provides clear color imaging in complete darkness
- 120dB True WDR with 3D noise reduction; ensures clear images in challenging lighting conditions
- MD2.0 intelligent analytics with human/vehicle identification; reduces false alarms and improves security response
- IP67 weatherproof rating with -22°F to +140°F operating range; ensures reliable outdoor performance in harsh conditions
- Built-in microphone and alarm I/O interfaces; enables comprehensive audio surveillance and security integration
- Multiple power options including PoE and X-PoE support; simplifies installation and reduces wiring requirements
- Up to 512GB micro SD card support; provides local backup storage for critical recordings
Downloads
Additional Information
Aperture:
|
F1.2
|
Camera Style:
|
Turret
|
Compression:
|
H.265
H.264
MJPEG
|
Day/Night:
|
|
Dimensions:
|
5.59" x 5.57"
|
Lens Size:
|
2.7-12mm
|
Lens Type:
|
Motorized Varifocal
|
Max Power Consumption:
|
12.9 Watts
|
Night Vision Range (ft):
|
131
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
Protection Code:
|
IP67
|
Resolution:
|
8MP
|
SD Card Support:
|
|
Sensor Size:
|
1/1.8"
|
Sensor Type:
|
CMOS
|
Storage Temperature:
|
-40°C to +60°C (-40°F to +140°F)
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
