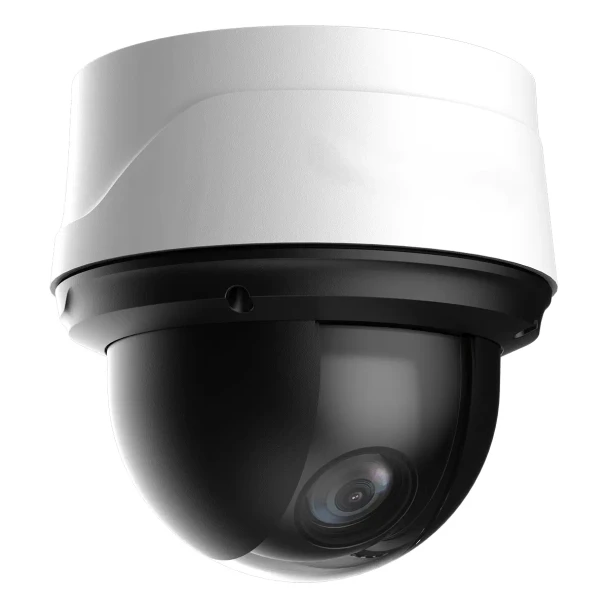

LTS Security LXPTZIP424W-25XIR 4MP Outdoor PTZ IP Security Camera with 5-125mm Lens, 25x Optical Zoom and Built-In IR

LTS Security LXPTZIP424W-25XIR 4MP Outdoor PTZ IP Security Camera with 5-125mm Lens, 25x Optical Zoom and Built-In IR

The LTS Security LXPTZIP424W-25XIR is a 4MP outdoor PTZ camera engineered for long-range surveillance with invisible IR illumination — a critical advantage for covert installations where visible red-glow IR would alert subjects to camera presence. Featuring a 1/2.8" 4MP STARVIS CMOS sensor and a 5–125mm motorized varifocal lens with 25x optical zoom, it covers everything from a 51.9° wide overview to a 3.0° telephoto close-up without physical repositioning. The 940nm invisible IR illuminator reaches up to 100 m (328 ft), providing covert night surveillance across large outdoor areas including perimeter fences, parking lots, and open grounds.

The LXPTZIP424W-25XIR delivers 4MP resolution (2560×1440) at up to 30 fps with H.265/H.264/MJPEG compression and triple-stream support. Its PTZ capabilities include pan (0°–360° endless), tilt (-5° to 90°), 300 preset positions, 8 patrol tours, 5 scan patterns, and auto-tracking lite for automated following of human subjects without operator intervention. VCA analytics support tripwire, intrusion detection, and MD 2.0 with human and vehicle classification. Face detection provides an additional identification layer. A built-in alarm I/O (2 inputs, 1 output) and audio I/O (1 input, 1 output) support integration with external devices for comprehensive event-driven responses.

The camera is IP66-rated for full outdoor weatherproofing and operates across an extreme temperature range of -40°C to 65°C (-40°F to 149°F), making it suitable for year-round deployment in harsh climates. It supports WDR at 120 dB for balanced exposure in high-contrast scenes, and the auto flip function ensures continuous coverage during tilt transitions. Powered via PoE+ (IEEE 802.3at) or 12VDC, with a maximum power consumption of 20W. Edge storage is supported via microSD up to 512GB.

Key Features:

• 4MP 1/2.8" STARVIS CMOS with 25x Optical Zoom (5–125mm); delivers long-range 4MP detail from wide overview to telephoto close-up without camera repositioning.
• Invisible IR Illumination up to 100 m (328 ft); provides covert night surveillance without visible red glow, ideal for discreet perimeter and security monitoring.
• Auto Tracking Lite (Human); automatically follows detected human subjects across the field of view, reducing operator workload for active surveillance.
• 300 Preset Positions + 8 Patrol Tours; enables fully automated PTZ patrol coverage across large multi-zone outdoor installations.
• VCA Analytics — Tripwire, Intrusion, MD 2.0 + Face Detection; provides intelligent event detection with human and vehicle classification for accurate alarm triggering.
• WDR 120 dB; ensures balanced, forensic-quality imagery across high-contrast outdoor scenes including bright entrances and shadowed areas.
• Operating Range -40°C to 65°C (-40°F to 149°F); engineered for year-round outdoor reliability from Arctic winters to desert summers.
• PoE+ (IEEE 802.3at) / 12VDC; flexible power options for single-cable installation or direct power connection in any outdoor deployment.
