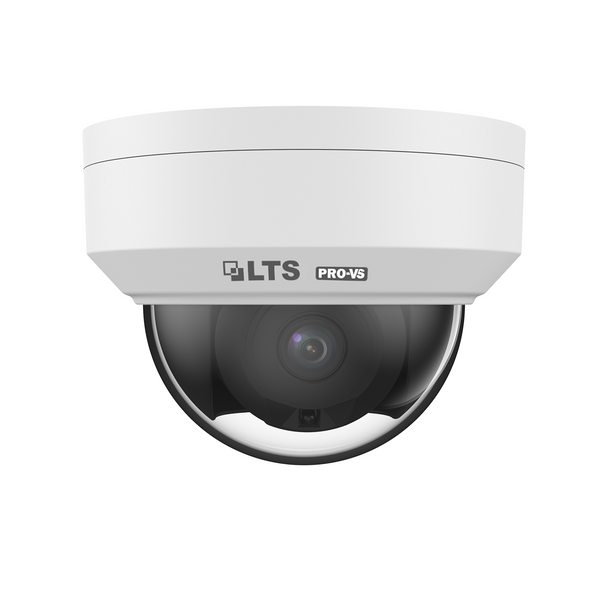

LTS VSIP7182W-28MDA 8MP 4K Night Vision Outdoor Dome IP Security Camera with Built-in Mic and 2.8mm Fixed Lens, NDAA Compliant

Brand: LTS Security
Part Number: VSIP7182W-28MDA
Write a Review
New Product!
$256.45

✅ Help me pick a security camera

Technical Support Technical Support
  • Compression : H.264, H.265, MJPEG, Ultra 265,
  • Field of View (Horizontal) : 112.9°Field of View
  • Max. FPS and Resolution : 20fps at 3840 x 2160 30fps at 3072 x 1728
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.7" Sensor
  • Max. Storage Capacity : 256 GB Storage Capacity
  • Protection Code : IP67 IK10
  • Color : White
  • Material : Metal
  • Environmental : Outdoor
  • Sensor Size : 1/2.7"
  • Aperture : F1.6
  • Audio Support : Built-in Microphone

Description

LTS VSIP7182W-28MDA 8MP 4K Night Vision Outdoor Dome IP Security Camera with Built-in Mic and 2.8mm Fixed Lens, NDAA Compliant

Key Features:

  • High quality image with 8MP, 1/2.7"CMOS sensor
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • High image quality in low illumination environment
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IK10 vandal resistant
  • IP67 protection
  • Support PoE power supply
  • 3-Axis
  • Motion 2.0 with Human & Vehicle Detection

Downloads

Popular Search

Outdoor Security Cameras
LTS Security Cameras
LTS IP Security Cameras
LTS Pro-VS Series

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Aperture:
F1.6
Audio Capability:
One-way Audio
Audio Compression:
G.711
Audio Support:
Built-in Microphone
Built-in Analytics:
Built-in Analytics
Camera Style:
Dome
Certifications:
CE FCC UL Listed
Color:
White
Compatible Integration (API):
API ONVIF Profile G ONVIF Profile S ONVIF Profile T SDK
Compression:
H.264 H.265 MJPEG Ultra 265
Connection Type:
Wired
Day/Night:
Auto Day (Color) ICR (True Day/Night) Night (B/W)
Dimensions:
111 x 94 mm (4.4 x 3.7 in)
Durability:
Weatherproof Vandal Proof
Environmental:
Outdoor
Field of View (Horizontal):
112.9
Iris:
Fixed Iris
Lens Mount:
M12
Lens Size:
2.8mm
Lens Type:
Fixed Lens
Material:
Metal
Max Power Consumption:
4.5 Watts
Max. FPS and Resolution:
20fps at 3840 x 2160 30fps at 3072 x 1728
Max. Storage Capacity:
256 GB
Minimum Illumination (B/W):
0 lux
Minimum Illumination (Color):
0.005 Lux
Mounting:
Pole Mount Pendant Mount Wall Mount
NDAA Compliance:
NDAA Compliant
Network Interface:
1x RJ-45 10/100 Base-TX Ethernet
Night Vision Range (ft):
98
Night Vision Type:
Night Vision (IR)
Noise Reduction:
2D DNR 3D DNR
Operating Humidity:
0% to 95% RH (non-condensing)
Operating Temperature:
-30 °C to 60 °C (-22 °F to 140 °F)
Power Supply:
12 VDC PoE (IEEE 802.3af)
Product Series:
LTS Pro-VS Series
Protection Code:
IP67 IK10
Remote Users:
Up to 32
Reset Button:
Resolution:
8MP (4K)
S/N Ratio:
>56 dB
SD Card Support:
SD Card Supported
Sensor Size:
1/2.7"
Sensor Type:
CMOS
Shutter Speed:
1-1/100000s
Special Technologies:
Corridor Format Motion 2.0
Storage Humidity:
0% to 95% RH (non-condensing)
Storage Temperature:
-30 °C to 60 °C (-22 °F to 140 °F)
Surge Protection:
4 kV
Technology:
Network (IP)
Wavelength (nm):
850
Web Browser:
Chrome 57.0 or above Edge 16 or above Firefox 58.0 or above Internet Explorer 9 or above
Wide Dynamic Range (WDR):
True WDR 120dB
