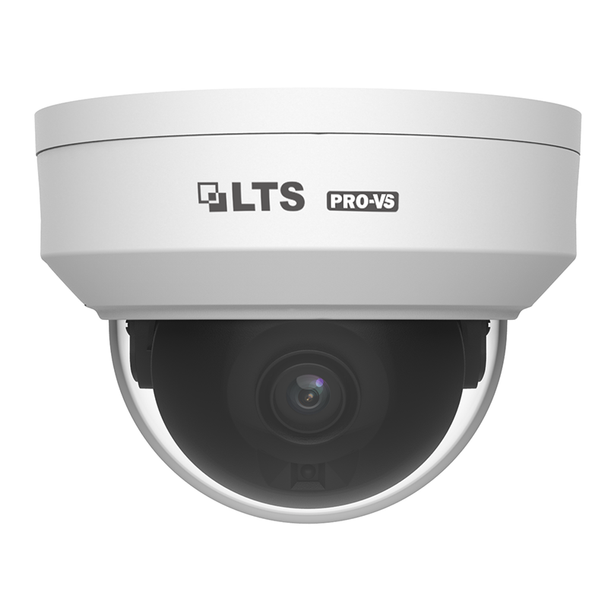

4 Megapixel InfraRed for Night Vision Outdoor Dome Network (IP) Security Camera, Ultra 265 Compression, Weatherproof, SD Card Support, 2.8mm Fixed Lens, VSIP7442W-28S
✅ Help me pick a security camera
- Compression : Ultra 265, H.265, H.264, MJPEG,
- Field of View (Horizontal) : 95.8°Field of View
- Max. FPS and Resolution : 30fps at 4MP
- Lens Type : Fixed Lens
- Lens Size : 2.8mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/3" Sensor
- Protection Code : IP67 IK10
- Color : White
- Material : Metal Plastic
- Environmental : Outdoor
- Sensor Size : 1/3"
- Aperture : F2.0
Description
LTS VSIP7442W-28S 4MP IR H.265 Outdoor Dome IP Security Camera with 2.8mm Fixed Lens
On August 13, 2019 National Defense Authorization Act (NDAA), specifically section 889 went into effect. This section prohibits the usage of certain video surveillance, telecommunications services, equipment and components manufactured by specific vendors in federal buildings as well as federally-contracted developments.
LTS is committed to complying with all government and international trade regulations.
LTS proudly introduces their newest series in the video surveillance line: Pro-VS, with 8 new NDAA compliant IP cameras and 4 new NDAA compliant NVRs.
Key Features:
- Product Family: Pro-VS Series
- NDAA Compliant
- Resolution: 4MP, 2592 × [email protected]
- Fixed Lens: 2.8mm
- Lux: 0.01 lux @F2.0
- Compression: Ultra 265/H.265/H.264/MJPEG
- IR: Smart IR LED up to 98ft
- Features: 120dB WDR, 2D/3D DNR, BLC, HLC, Digital Defog
- Audio: Audio In/Out
- Alarm: Alarm In/Out
- Storage: MicroSD up to 256GB, Automatic Network Replenishment
- Axis: 3 Axis
- Rating: IP67, IK10 Vandal Proof, 2KV Surge Protection
- Power: DC 12V, PoE
PRO-VS SERIES IP CAMERAS' FEATURES:
- 4MP and 8MP available
- Motorized Lens and Fixed Lens Available
- Smart IR
- TrueWDR
- Advanced Compression H.265
- IP67
PRO-VS SERIES STATION
APP
- Manage up to 5,000 devices and allow up to 10,000 video channels
- Smooth live view and playback
- Account sharing via cloud
- Push alarm notification
Client Software
- Manage up to 128 devices and monitor up to 512 video channels
- Up to 64 split view for live view
- Two way audio and broadcast
- Search recordings by triggered events
- User Manual for LTS Pro-VS Station DOWNLOAD
- System Requirements and Configurations for LTS Pro-VS Station DOWNLOAD
- Download LTS Pro-VS Station Client Software
LIST OF PRO-VS SERIES IP CAMERAS
- VSIP8182W-28, Fixed Lens, Bullet
- VSIP8442W-28MA, Fixed Lens, Bullet
- VSIP7182W-28, Fixed Lens, Dome
- VSIP3182W-28, Fixed Lens, Turret
- VSIP3442W-28MA, Fixed Lens, Turret
- VSIP9643W-SZ, Vari-focal Lens, Bullet
- VSIP7643W-SZ Vari-focal Lens, Dome
Downloads
Popular Search
Specifications
|
|||||
Camera |
|||||
Sensor |
1/3", 4.0 megapixel, progressive scan, CMOS |
||||
Lens |
|||||
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
2.8 |
63.0 |
25.2 |
12.6 |
6.3 |
|
4.0 |
90.0 |
36.0 |
18.0 |
9.0 |
|
Angle of View (H) |
95.8° |
||||
Angle of View (V) |
55.2° |
||||
Angle of View (O) |
124.5° |
||||
Adjustment angle |
Pan: 3° ~ 360° |
Tilt: 0° ~ 68° |
Rotate: 3° ~ 360° |
||
Shutter |
Auto/Manual, 1 ~ 1/100000s |
||||
Minimum Illumination |
Color: 0.01Lux (F2.0, AGC ON) 0Lux with IR |
||||
Day/Night |
IR-cut filter with auto switch (ICR) |
||||
Digital noise reduction |
2D/3D DNR |
||||
S/N |
>56dB |
||||
IR Range |
Up to 30m (98ft) IR range |
||||
Wavelength |
850nm |
||||
IR On/Off Control |
Auto/Manual |
||||
Defog |
Digital Defog |
||||
WDR |
120dB |
||||
Video |
|||||
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
||||
H.264 code profile |
Baseline profile, Main Profile |
||||
Frame Rate |
Main Stream: 4MP (2592*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps Sub Stream: 4CIF (704*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps |
||||
Video Bit Rate |
128 Kbps~16 Mbps |
||||
OSD |
Up to 4 OSDs |
||||
Privacy Mask |
Up to 4 areas |
||||
ROI |
Up to 2 areas |
||||
Motion Detection |
Up to 4 areas |
||||
Image |
|||||
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
||||
Digital noise reduction |
2D/3D DNR |
||||
Smart IR |
Support |
||||
Flip |
Normal/Vertical/Horizontal/180° |
||||
Dewarping |
NA |
||||
HLC |
Supported |
||||
BLC |
Supported |
||||
Audio |
|||||
Audio Compression |
G.711 |
||||
Two-way audio |
Supported |
||||
Suppression |
Supported |
||||
Sampling Rate |
8KHZ |
||||
Storage |
|||||
Edge Storage |
Micro SD, up to 256GB |
||||
Network Storage |
ANR |
||||
Smart |
|||||
Behavior Detection |
Human Body Detection |
||||
Network |
|||||
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
||||
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
||||
Client |
LTS PRO-VS Station |
||||
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
|||||
Interface |
|||||
Audio I/O |
Input: impedance 35kΩ; amplitude 2V [p-p] |
||||
Output: impedance 600Ω; amplitude 2V [p-p] |
|||||
Alarm I/O |
1/1 |
||||
Network |
1 RJ45 10M/100M Base-TX Ethernet |
||||
Certifications |
|||||
Certifications |
CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
||||
General |
|||||
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
||||
Power consumption: Max 5.5W |
|||||
Dimensions (Ø x H) |
Φ108.7 x 81.1mm (Ø4.3” x 3.2”) |
||||
Net Weight |
0.45kg (0.99lb) |
||||
Material |
Shield:PC Body:plastic Bottom plate:metal |
||||
Working Environment |
-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||
Strorage Environment |
-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||
Surge Protection |
2KV |
||||
Ingress Protection |
IP67 |
||||
Vandal Resistant |
IK10 |
Compatible products
Additional Information
Alarm Input: |
1 Channel
|
Alarm Output: |
1 Channel
|
Aperture: |
F2.0
|
Audio Capability: |
Two-way Audio
|
Audio Compression: |
G.711
|
Audio Input: |
1x Channel
|
Audio Output: |
1x Channel
|
Built-in PIR Sensor: |
|
Camera Style: |
Dome
|
Color: |
White
|
Compatible Integration (API): |
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
API
|
Compression: |
Ultra 265
H.265
H.264
MJPEG
|
Day/Night: |
ICR (True Day/Night)
|
Detect (ft): |
206.69
|
Dimensions: |
108.7 x 81.1 mm (4.3 x 3.2 in)
|
Durability: |
Vandal Proof
Weatherproof
|
Environmental: |
Outdoor
|
Field of View (Horizontal): |
95.8
|
Identify (ft): |
20
|
Key Features: |
Smart IR
|
Lens Size: |
2.8mm
|
Lens Type: |
Fixed Lens
|
Material: |
Metal
Plastic
|
Max. FPS and Resolution: |
30fps at 4MP
|
NDAA Compliance: |
NDAA Compliant
|
Network Interface: |
1x RJ-45 10M/100M Base-TX Ethernet
|
Night Vision Range (ft): |
98
|
Noise Reduction: |
2D NR
3D DNR
|
Observe (ft): |
82
|
Operating Humidity: |
0% to 95% RH (non-condensing)
|
Operating Temperature: |
-35 °C to 60 °C (-31 °F to 140 °F)
|
Power Consumption: |
5.5 Watts
|
Power Supply: |
12 VDC
PoE (IEEE 802.3af)
|
Product Series: |
Pro-VS
|
Protection Code: |
IP67
IK10
|
Recognize (ft): |
41
|
Resolution: |
4MP
|
S/N Ratio: |
>56 dB
|
SD Card Support: |
|
Sensor Size: |
1/3"
|
Sensor Type: |
CMOS
|
Shutter Speed: |
1-1/100000s
|
Storage Humidity: |
0% to 95% RH (non-condensing)
|
Storage Temperature: |
-35 °C to 60 °C (-31 °F to 140 °F)
|
Technology: |
Network (IP)
|
Warranty: |
3-year Manufacturer Warranty
|
Wavelength (nm): |
850
|
Web Browser: |
Internet Explorer 9 or above
Chrome 41 and below
Fırefox 52.0 and below
Safari 11 or above
|
Wide Dynamic Range (WDR): |
True WDR 120dB
|
