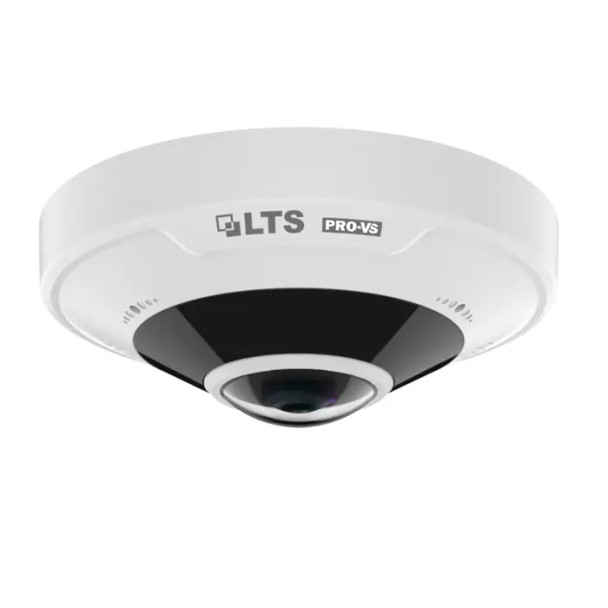

LTS VSIP75122F-SE 12MP 360° Fisheye Dome IP Security Camera with 1.8mm Lens and Built-In IR

Part Number: VSIP75122F-SE
Write a Review
New Product!
  • LTS VSIP75122F-SE 12MP 360° Fisheye Dome IP Security Camera with 1.8mm Lens and Built-In IR - 1
  • LTS VSIP75122F-SE 12MP 360° Fisheye Dome IP Security Camera with 1.8mm Lens and Built-In IR - 1
$1,129.45

? Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.265, H.264, MJPEG,
  • Lens Type : Fixed
  • Lens Size : 1.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/1.7" Sensor
  • Protection Code : IP67 IK10
  • Aperture : F2.0

Description

LTS VSIP75122F-SE 12MP 360° Fisheye Dome IP Security Camera with 1.8mm Lens and Built-In IR

The LTS VSIP75122F-SE delivers exceptional 12MP ultra-high definition surveillance with innovative 360° fisheye technology. This professional dome camera features a 1.8mm ultra-wide angle lens providing complete panoramic coverage, eliminating blind spots and reducing the number of cameras needed for comprehensive area monitoring. The 1/1.7" CMOS sensor ensures outstanding image quality with maximum 4000×3000 resolution.

Engineered with advanced intelligent features, this camera provides heat map analytics based on deep learning algorithms for real-time object movement tracking. Multiple decoding modes support both software and hardware configurations with interactive dynamic viewing capabilities. The embedded 360° infrared illumination system provides clear night vision up to 49 feet with automatic smart IR control.

Built for demanding applications with IP67 weatherproof and IK10 vandal-resistant protection, this camera operates reliably in extreme temperatures from -22°F to +140°F. Professional features include built-in microphone and speaker for two-way communication, up to 256GB microSD storage support, comprehensive alarm and audio interfaces, and multiple mounting options for ceiling, wall, or table installation. Advanced compression technologies including H.265 and H.264 optimize bandwidth usage while maintaining exceptional image quality.

Key Features:

  • 12MP (4000 × 3000) resolution with 360° fisheye coverage; provides complete panoramic surveillance eliminating blind spots
  • 1.8mm ultra-wide angle lens with F2.0 aperture; captures comprehensive area coverage with single camera installation
  • Heat map analytics with deep learning algorithms; enables real-time object movement tracking and behavioral analysis
  • Multiple decoding modes with interactive dynamic viewing; supports both software and hardware configurations
  • IP67 weatherproof and IK10 vandal-resistant protection; ensures reliable operation in harsh environments
  • Built-in 360° IR illumination up to 49 feet; provides clear night vision with smart automatic control
  • Two-way audio with built-in microphone and speaker; enables real-time communication capabilities
  • Up to 256GB microSD storage with comprehensive I/O interfaces; provides local backup and extensive integration
  • Flexible mounting options for ceiling, wall, or table installation; adapts to various surveillance requirements

Additional Information

Aperture:
F2.0
Camera Style:
Fisheye
Compression:
H.265 H.264 MJPEG
Day/Night:
Dimensions:
5.9" x 2.2"
Lens Size:
1.8mm
Lens Type:
Fixed
Max Power Consumption:
12 Watts
Night Vision Range (ft):
49
Operating Humidity:
0% to 95% RH (non-condensing)
Operating Temperature:
-30°C to +60°C (-22°F to +140°F)
Power Supply:
12 VDC PoE (IEEE 802.3af)
Protection Code:
IP67 IK10
Resolution:
12MP
SD Card Support:
Sensor Size:
1/1.7"
Sensor Type:
CMOS
Storage Temperature:
-30°C to +60°C (-22°F to +140°F)
Technology:
Network (IP)
Wide Dynamic Range (WDR):
DWDR
