Description

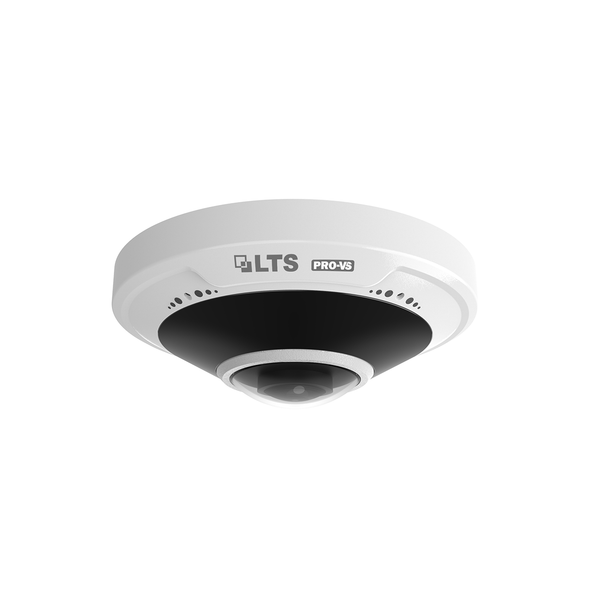

LTS VSIP7552FW-SE 5MP Pro-VS Outdoor Fisheye IP Security Camera with Built-in Microphone
Key Features:
- High quality image with 5MP, 1/2.8"CMOS sensor
- 5MP (2592*1944):@ 30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- Built-in 2 Mic, Supports the detection of sounds over longer distances
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Smart IR, up to 10m (33ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP66 protection
- Support PoE power supply
Downloads
Datasheet
LTS-Security-VSIP7552FW-SE-Datasheet-A1
Quick Start Guide
LTS-Security-VSIP7552FW-SE-Quick-Start-Guide-A1
User Manual
LTS-Security-VSIP7552FW-SE-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Angle of View:
|
360 Degree
|
|
Aperture:
|
F2.0
|
|
Audio Capability:
|
Two-way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Fisheye
|
|
Compatible Integration (API):
|
SDK
API
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
Ultra 265
H.265
H.264
MJPEG
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
103
|
|
Dimensions:
|
125 x 43.7 mm (4.9 x 1.7 in)
|
|
Durability:
|
Vandal Resistant
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
360
|
|
Identify (ft):
|
10.49
|
|
Iris:
|
Fixed Iris
|
|
Lens Angle Type:
|
Panoramic
|
|
Lens Size:
|
1.4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
Plastic
|
|
Max Power Consumption:
|
8.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2592 x 1944
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.02 Lux at F2.0 AGC ON
|
|
Mounting:
|
Wall Mount
Ceiling Mount
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
|
Night Vision Range (ft):
|
33
|
|
Noise Reduction:
|
2D DNR
3D DNR
|
|
Observe (ft):
|
41
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
|
Product Series:
|
LTS Pro-VS Series
|
|
Protection Code:
|
IP66
IK10
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
5MP (3K)
|
|
S/N Ratio:
|
>55 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/100000s
|
|
Storage Humidity:
|
0% to 95% RH (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
