Description

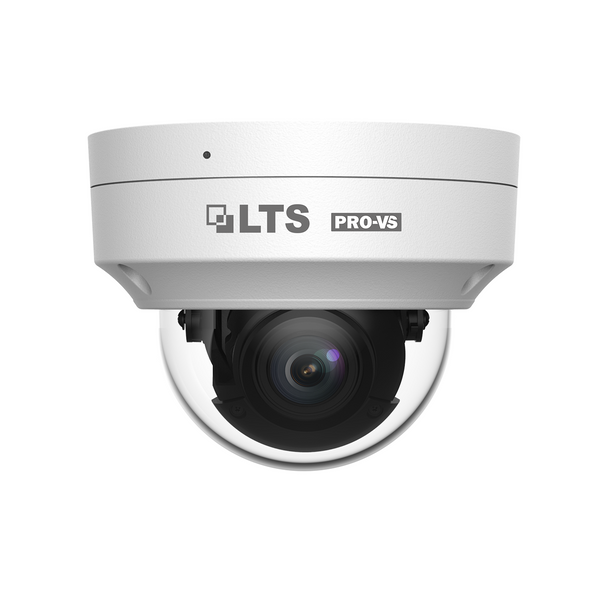

LTS VSIP7643W-MDAZ 4MP Night Vision Outdoor Dome IP Security Camera with Built-in Microphone and 2.8~12mm Motorized Lens
Key Features:
- High quality image with 4MP, 1/3"CMOS sensor
- 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296)@ 30/25fps;2MP (1920*1080)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 40m (131ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
- 3-Axis
- MD 2.0 with Human and Vehicle Detections
Replacement of:
VSIP7643W-SZ
Downloads
Quick Start Guide
LTS-Security-VSIP3643W-MDAZ-Quick-Start-Guide-A1
Datasheet
LTS-Security-VSIP7643W-MDAZ-Datasheet-A1
Quick Start Guide
LTS-Security-VSIP7643W-MDAZ-Quick-Start-Guide-A1
User Manual
LTS-Security-VSIP7643W-MDAZ-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Human and Vehicle Detection
|
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
One-way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Support:
|
Built-in Microphone
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
FCC
CE
UL Listed
IEC
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
API
SDK
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
Ultra 265
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
Day (Color)
Night (B/W)
|
|
Dimensions:
|
129 x 110 mm (5.1 x 4.3 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
30.86
102.79
|
|
Lens Size:
|
2.8~12mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Metal
Plastic
|
|
Max Power Consumption:
|
7.5 Watts
|
|
Max. FPS and Resolution:
|
25fps at 2688 x 1520
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.003 Lux
|
|
Mounting:
|
Wall Mount
Corner Mount
Pole Mount
Pendant Mount
|
|
Network Interface:
|
16x RJ-45 10M/100M Base-TX Ethernet
|
|
Night Vision Range (ft):
|
131
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
2D DNR
3D DNR
|
|
Optical Zoom:
|
4.3x Optical Zoom
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
LTS Pro-VS Series
|
|
Protection Code:
|
IP67
IK10
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>56 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/100000s
|
|
Storage Humidity:
|
0% to 95% RH (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Surge Protection:
|
6 kV
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
