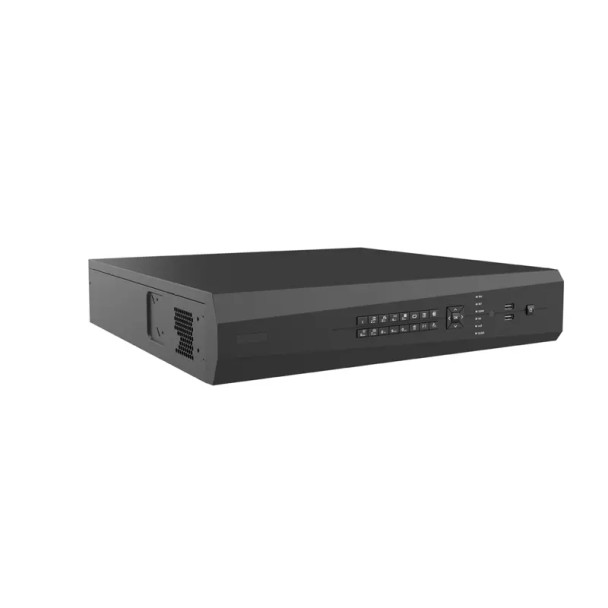

LTS VSN8864-R 64 Channel 4K Pro-VS Network Video Recorder, No HDD included
Key Features:
- Ultra H.265/H.265/H.264
- 64-channel input
- Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840x2160) resolution
- HDMI1, HDMI2, VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- Support RAID 0, 1, 5, 6, 10
- 8 SATA HDDs, Up to 10TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- Support N+1 Hot spare
- Support for 12V Power output
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Downloads
Datasheet
LTS-Security-VSN8864-R-Datasheet-A1
User Manual
LTS-Security-VSN8864-R-User-Manual-A1
Popular Search
Compatible products
Video recorders will require additional parts in order to perform their function. CCTV Power supply, PoE Switches, hard drives, wireless mouse, recorder mount accessories and cables are just few to be mentioned. If you have any questions to complete your security camera system, please check with our sales team first. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
16 Channel
|
|
Alarm Output:
|
4 Channel
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Input:
|
1x RCA
|
|
Audio Output:
|
1x RCA
|
|
Capacity for each disk:
|
up to 10TB
|
|
Channel Capacity:
|
64 Channels
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF Profile S
ONVIF Profile G
ONVIF Profile T
|
|
Compression:
|
Ultra 265
H.265
H.264
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
442 x 426 x 89 mm (17.4 x x16.8 x 3.5 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
8 SATA Ports
|
|
Max Power Consumption:
|
25 Watts
|
|
Max. Incoming Bandwidth:
|
384Mbps
|
|
Max. Recording Resolution:
|
12MP (4K)
|
|
Max. Storage Capacity:
|
80 TB
|
|
Network Interface:
|
2x RJ-45 10/100/1000 Mbps
|
|
Outgoing Bandwidth:
|
384 Mbps
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
No HDD included
|
|
Product Series:
|
LTS Pro-VS Series
|
|
RAID:
|
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Remote Users:
|
Up to 128
|
|
Serial Interface:
|
1x RS232
1x RS485
|
|
Synchronous Playback:
|
16 Channel
|
|
USB Interface:
|
2x USB 2.0
1x USB 3.0
|
|
Video Output:
|
2x HDMI
1x VGA
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
e-SATA:
|
e-SATA
|
