Description

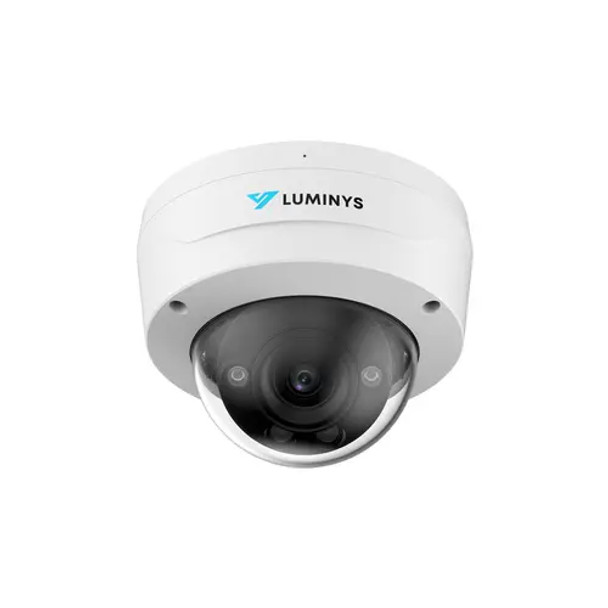

Luminys N5D-12LA2 12MP Network LumiLuxSmart Dome IP Security Camera with 2.8mm Lens and Built-In IR
The Luminys N5D-12LA2 represents a breakthrough in intelligent security surveillance, combining exceptional 12MP resolution with innovative LumiLuxSmart technology. This advanced dome camera delivers crystal-clear 4512×2512 video capture powered by a 1/2.5-inch progressive CMOS sensor, ensuring superior image quality in all lighting conditions.
LumiLuxSmart technology sets this camera apart with its unique triple-illumination capability. The camera intelligently switches between covert IR-only mode, nighttime white-light LED lighting, and motion-activated dual illumination, providing unmatched flexibility for various security scenarios. When motion is detected, the camera automatically transitions from IR LEDs to white-light LEDs to illuminate the scene, then returns to IR mode to prevent light pollution and energy waste.
Built for reliability and performance, this IP67-rated dome camera operates flawlessly in temperatures ranging from -40 to 60°C (-40 to 140°F). The 2.8mm fixed lens provides a generous 112° horizontal field of view, making it ideal for monitoring large areas. Advanced video analytics including line crossing, intrusion detection, and people counting help eliminate false alarms while providing actionable security insights.
Key Features:
- 12MP (4512×2512) resolution with 1/2.5-inch progressive CMOS sensor; delivers ultra-high definition video for clear facial recognition and license plate identification
- LumiLuxSmart technology with dual IR and white-light LEDs up to 98.4ft range; provides flexible illumination options for covert or deterrent applications
- IP67 weatherproof rating with IK10 vandal resistance; ensures reliable operation in harsh outdoor environments
- 2.8mm fixed lens with 112° horizontal field of view; covers wide areas with minimal blind spots
- Advanced video content analytics including line crossing and intrusion detection; reduces false alarms while providing intelligent motion analysis
- Multiple power options including PoE+ (802.3at) and LumiPower support; simplifies installation with flexible power delivery options
- NDAA compliant design with comprehensive cybersecurity features; meets government and enterprise security requirements
Downloads
Popular Search
Additional Information
|
Aperture:
|
F1.6
|
|
Camera Style:
|
Dome
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
MJPEG
H.265
H.264
|
|
Day/Night:
|
|
|
Dimensions:
|
Φ 4.96in × 3.94in
|
|
Iris:
|
Fixed
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
10.7 Watts
|
|
Minimum Illumination (B/W):
|
0.0008 Lux at F1.6
|
|
Minimum Illumination (Color):
|
0.0085 Lux at F1.6
|
|
Night Vision Range (ft):
|
98.4
|
|
Power Supply:
|
12 VDC
PoE+ (IEEE 802.3at)
|
|
Protection Code:
|
IP67
IK10
|
|
Resolution:
|
12MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.5"
|
|
Sensor Type:
|
CMOS
|
|
Storage Temperature:
|
-40 °C to 60 °C (-40 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
