Description

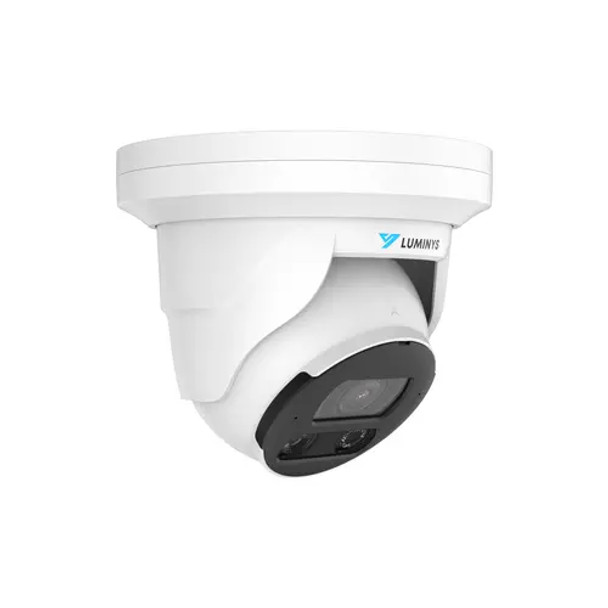

Luminys N5T-4DA2 4MP Outdoor Turret IP Security Camera with LumiDeterrent and Analytics+
The Luminys N5T-4DA2 is a cutting-edge 4MP turret security camera that combines advanced surveillance technology with active deterrence capabilities. Featuring the innovative LumiDeterrent technology, this camera integrates full-color video capture with red and blue light alarms and built-in audio deterrence to provide comprehensive 24/7 security protection.
Equipped with LumiLuxSmart technology, this camera delivers exceptional image quality in all lighting conditions. The dual-core LED system automatically switches between IR and white-light illumination based on motion detection, ensuring clear footage while minimizing light pollution. The advanced 4MP sensor captures detailed images at 2688 × 1520 resolution with up to 30 fps recording capability.
This weatherproof IP67-rated camera is built for demanding outdoor applications with an operating temperature range from -40°C to 60°C. The rugged metal construction ensures long-term reliability while the compact turret design provides flexible installation options.
Key Features:
- 4MP resolution (2688 × 1520) with 30 fps recording
- LumiDeterrent technology with red/blue lights and built-in speaker
- LumiLuxSmart dual-core LED illumination (IR and white light)
- Video Content Analytics+ with line crossing and intrusion detection
- 2.8mm fixed lens with 101° horizontal field of view
- IP67 weatherproof rating for outdoor use
- NDAA compliant for government installations
- PoE+ powered for easy installation
Downloads
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Video Content Analytics+ Line Crossing
Intrusion
Loitering Detection
|
|
Aperture:
|
F1.0
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711a
G.711Mu
PCM
G.723
G.726
|
|
Audio Input:
|
1x RCA
|
|
Audio Output:
|
1x RCA
|
|
Audio Support:
|
Built-in Microphone
Built-in Speaker
|
|
Camera Style:
|
Turret
|
|
Certifications:
|
FCC
IC
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
MJPEG
H.265+
H.264+
|
|
Day/Night:
|
Automatic (ICR)
|
|
Dimensions:
|
4.9in x 5.6in x 5.6in
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
120°
|
|
Field of View (Horizontal):
|
101°
|
|
Field of View (Vertical):
|
53°
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
8.8W
|
|
Max. FPS and Resolution:
|
30 fps at 4MP
|
|
Night Vision Range (ft):
|
98.4ft
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>56 dB
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Storage Temperature:
|
-40 °C to 60 °C (-40 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
120 dB
True WDR 120dB
|
