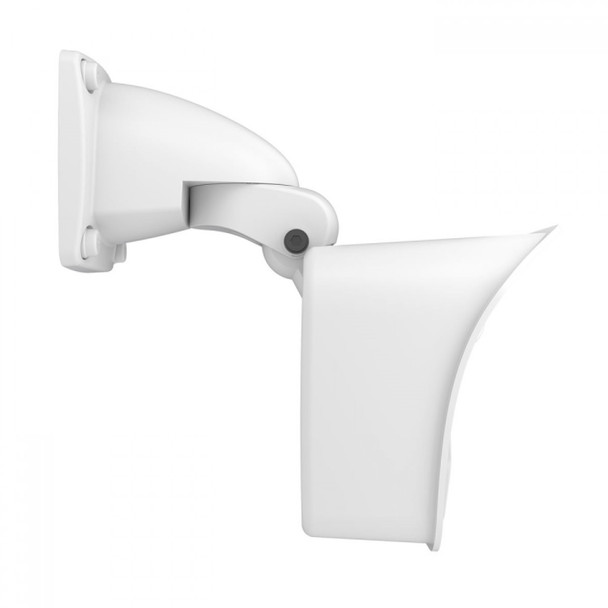

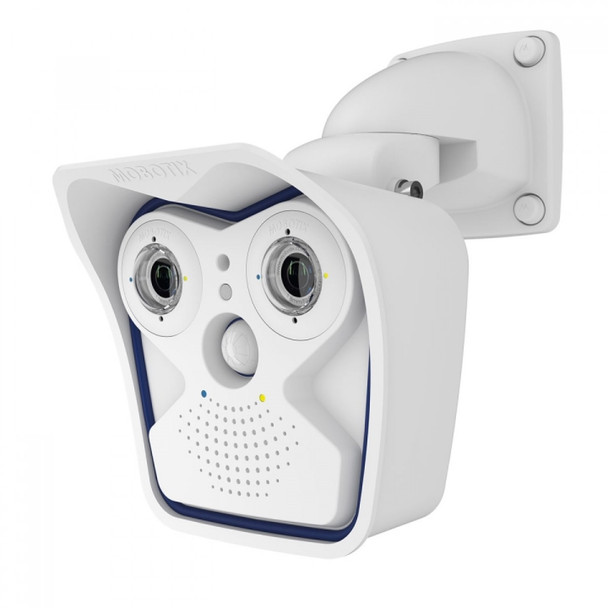

Mobotix MX-M15D-Sec-DNight-D160N160-F1.8 5MP Indoor/Outdoor Dual Sensor Dome IP Security Camera - 25mm Fixed Lens, 4GB Card Pre-Installed

Brand: Mobotix
Part Number: MX-M15D-Sec-DNight-D160N160-F1.8
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check other similar products:
Discontinued
  • Mobotix MX-M15D-Sec-DNight-D160N160-F1.8 5MP Indoor/Outdoor Dual Sensor Dome IP Security Camera - 25mm Fixed Lens, 4GB Card Pre-Installed
  • 2-Year Limited Manufacturer Warranty
  • Mobotix MX-M15D-Sec
  • Mobotix MX-M15D-Sec
  • Mobotix MX-M15D-Sec

Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
1 Year Warranty 1 Year Warranty
  • Max. FPS and Resolution : 10fps at 2560 x 1920
  • Lens Type : Fixed Lens
  • Lens Size : 25mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.5" Sensor
  • Protection Code : IP66
  • Environmental : Outdoor
  • Sensor Size : 1/2.5"
  • Audio Support : Built-in Microphone Built-in Speaker

Description

Mobotix MX-M15D-Sec-DNight-D160N160-F1.8 5MP Indoor/Outdoor Dual Sensor IP Dome Security Camera

The new MOBOTIX 6-megapixel image sensors (available as a day and night version for color and black/white images) feature even better light sensitivity, making these the best MOBOTIX cameras and IP systems ever. In addition to standard 4:3 image formats with maximized 5MP resolution, this new technology now also supports images with up to 6 megapixels in the special 3:2 format (3072 x 2048 pixels), both as a day and night sensor module.

The greatly increased light sensitivity of the new sensor technology is further enhanced by the HD Premium lenses also built into the 5-megapixel cameras. These new HD Premium lenses with an f/1.8 aperture are offered in six different focal lengths. This technology, in connection with the new 5-megapixel sensor modules (1/2.5″ CMOS), delivers horizontal image angles between 15° and 105° for an image format of 4:3.

FixDome camera with two individually adjustable lenses and megapixel resolution. The elegant design is perfect for the discrete surveillance of buildings and facades. Standardly equipped with different lens combinations. Integrates all MOBOTIX functions.

Two lenses, two HiRes image sensors, internal storage and a dual image of maximum 12.5 megapixels make the D15D DualDome an efficient security solution: You can secure two different areas with just one camera, for example. All without vulnerable mechanical components!

Focal lengths of MOBOTIX lenses are always given as compared to a 35 mm camera.For example, the MOBOTIX Super Wide-Angle lens L20-L23 has a nominal focal length of 3.6 mm. Converted to 35 mm camera, this would be a lens with 20 mm or 23 mm focal length, depending on whether it is combined with a 5MP or a 6MP image sensor. Converting the focal lengths to 35 mm camera as a known format provides for better comparing the image formats and the angles of view of the different lenses. Another benefit is that you can easily set a 35 mm camera (analog or digital) to the same focal length (Lxx) of the MOBOTIX lens to obtain the same angle of view. This approach greatly facilitates lens selection.

Key features:

  • 2x 5MP
  • L160, 25mm Fixed Lens
  • 1/2.5" CMOS
  • Day (Color) or Night (B&W)
  • 4 GB card pre-installed
  • IP54, IP65(without/with wall mount), IK10, IP66/IK10+ (with Vandalism kit)
  • MxActivitySensor, VDM, Image Correction, Backlight
  • Continuous up to 8x Zoom & Pan/Tilt (digital)
  • 5MP Day: 0.25 lux (t=1/60s) 0.013 lux (t=1/1s)
    6MP Night: 0.05 lux (t=1/60s) 0.0025 lux (t=1/1s)
    5MP Day: 0.1 lux (t=1/60s) 0.005 lux (t=1/1s)
    6MP Night: 0.02 lux (t=1/60s) 0.001 lux (t=1/1s)
  • Weather and Vandal Proof
  • Temperature, PIR, Illumination, Shock Detector
  • Microphone, Speaker, VoIP, Intercom, Sound Recording
  • H.264 (SIP Only), M-JPEG, JPEG, MxPEG
  • 64Mb Internal DVR
  • Day/Night (Color/B&W).

Additional Information

Audio Support:
Built-in Microphone Built-in Speaker
Camera Style:
Dome
Compliance:
NDAA Compliant
Durability:
Vandal Proof
Environmental:
Outdoor
Lens Size:
25mm
Lens Type:
Fixed Lens
Max. FPS and Resolution:
10fps at 2560 x 1920
Protection Code:
IP66
Resolution:
5MP (3K)
Sensor Size:
1/2.5"
Sensor Type:
CMOS
Specialized Camera Feature:
Multi-directional
Technology:
Network (IP)
Warranty:
1-year Manufacturer Warranty
