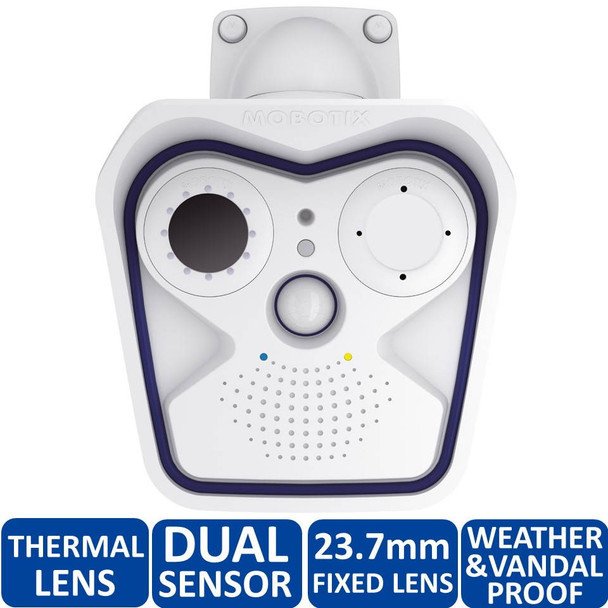

Mobotix MX-M15D-Thermal-L135 M15 Thermal Thermographic Indoor/Outdoor IP Security Camera - 23.7mm Fixed Lens, 50mK, Thermal Image 336 x 252 pixel

Brand: Mobotix
Part Number: MX-M15D-Thermal-L135
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check other similar products:
Discontinued
  • Mobotix MX-M15D-Thermal-L135 M15 Thermal Thermographic Indoor/Outdoor IP Security Camera - 23.7mm Fixed Lens, 50mK, Thermal Image 336 x 252 pixel
  • Mobotix MX-M15D-Thermal-L135 M15 Thermal
  • 2-Year Limited Manufacturer Warranty
  • Comparison 50 mK and 100 mK sensor

Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
1 Year Warranty 1 Year Warranty
  • Lens Type : Fixed Lens
  • Lens Size : 11.9mm Lens
  • Sensor Type : Thermal Sensor
  • Protection Code : IP66
  • Environmental : Outdoor

Customers Also Viewed

Description

Mobotix MX-M15D-Thermal-L135 AllroundDual M15 Thermal Thermographic Indoor/Outdoor Security Camera

The modular design of the M15 system platform ensures maximum flexibility for the MOBOTIX thermographic camera. The M15-Thermal comes standard with a thermal image sensor and a dummy module (to remain weatherproof to IP66).

In addition, it is possible to use any MOBOTIX sensor modules (6 MP, color or black and white, telephoto to Hemispheric, with or without long-pass filter/LPF) in the M15-Thermal for identification. Camera software is then used to activate the dual image display on one of the two image sensors (thermal or standard) or both simultaneously.

  • High-end thermografic camera with thermal sensor of typically 50 mK and a temperature measuring range of -40 to +550°C/-40 to +1022°F
  • Two cameras in one: Thermal sensor plus 6MP sensor module can be displayed simultaneously in the dual image.
  • The thermal sensor is capable of detecting even in complete darkness and/or through smoke, smog, or a thin plastic screen (limited during thick fog).
  • Thermal images for detection are an ideal addition to systems with standard image sensors (for identification).
  • The combination with the MxActivitySensor in particular delivers extremely reliable video analysis results of person/vehicle movements, as it is now possible to block out disruptive factors such as regular movements of "cold" objects such as bushes, grass, water, clouds, waves, etc.
  • Thermal technology coverage is largely independent of distance.
  • Thermal sensor with three different focal lengths available (image angle of 17°, 25° and 45°).

Key features:

  • 23.7mm Fixed Lens,& B237 thermal sensor TR, 17°
  • Max. image size: (Thermal image) 336 x 252 pixel thermal image that can be scaled up by the camera firmware up to 6 MP
  • Zoom/Pan: Continuous up to 8x Zoom + Pan/Tilt (digital)
  • Max. frame rate: 9 fps& even when the thermal image sensor and (optional) MOBOTIX sensor module are displayed simultaneously
  • Sensitivity thermal sensor: NETD typ. 50 mK, < 79 mK, IR range: 7.5 to 13.5 μm
  • Interfaces:& Ethernet 10/100 Mbit, MiniUSB, MxBus,& In/Out and RS232 with accessories
  • Internal DVR: [MB] MicroSD (4 GB card pre-installed)
  • Audio functions:& Microphone and speaker integrated,& lip-synchronous audio, two-way speaker, audio recording
  • Power supply: PoE (IEEE 802.3af/t), PoE-class 3, typ. 5,0 W, < 5.5 W with additional MX sensor module
  • Made in Germany

*Cameras with thermographic image sensors ("thermal cameras") are subject to the special export regulations of the U.S.A. and the ITAR (International Traffic in Arms Regulation)

Additional Information

Camera Style:
Box
Compliance:
NDAA Compliant
Durability:
Weatherproof
Environmental:
Outdoor
Lens Size:
11.9mm
Lens Type:
Fixed Lens
Protection Code:
IP66
Resolution:
336 x 252
SD Card Support:
SD Card Supported
Sensor Type:
Thermal Sensor
Specialized Camera Feature:
Thermal
Technology:
Network (IP)
Warranty:
1-year Manufacturer Warranty
