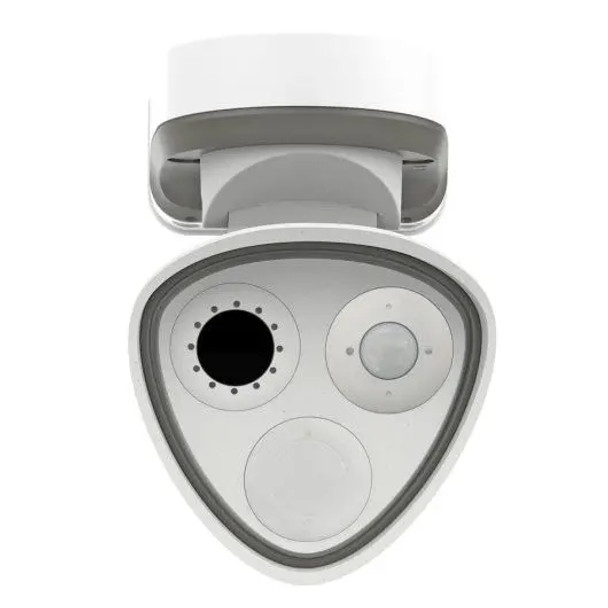

Mobotix Mx-M73TA-B336R100-EN54 336x256 Outdoor Thermal IP Security Camera with 45° FOV and EN54 Fire Detection

Mobotix Mx-M73TA-B336R100-EN54 336x256 Outdoor Thermal IP Security Camera with 45° FOV and EN54 Fire Detection

The Mobotix Mx-M73TA-B336R100-EN54 represents cutting-edge EN 54-10 certified thermal technology designed specifically for early fire detection and building security applications. This professional thermal camera combines CIF thermal radiometry with up to 20 simultaneous measuring windows, making it ideal for critical infrastructure monitoring where fire safety compliance is paramount.

Engineered with robust aluminum housing and IP66/IK10 protection, this thermal camera operates reliably in extreme conditions from -40°C to 65°C. The modular design allows integration with optional optical sensors for comprehensive bi-spectrum monitoring, while the certified EN54 compliance ensures adherence to EU Construction Products Regulation for fire safety systems.

Key Features:

• EN 54-10 certified thermal technology for fire alarm system integration; meets EU Construction Products Regulation requirements for building safety and early fire detection applications.
• CIF thermal sensor (336 x 256 pixels) with 45° x 35° field of view; provides precise thermal monitoring with radiometric capabilities for temperature-based alarm triggers.
• Up to 20 simultaneous measuring windows with temperature range from -40°C to 550°C; enables flexible multi-zone monitoring for comprehensive fire detection and industrial temperature monitoring.
• Modular design supporting additional 8MP optical sensor module; allows expansion to bi-spectrum monitoring with 4K UHD visible imaging capabilities.
• Professional-grade durability with IP66/IK10 protection and -40°C to 65°C operating range; ensures reliable performance in extreme industrial and outdoor environments.
• Advanced streaming capabilities with H.264, H.265, and MxPEG+ codecs; provides efficient bandwidth management with triple streaming for optimal network performance.
• Integrated MultiSense module with PIR, temperature, brightness sensors and microphone; offers comprehensive environmental monitoring beyond thermal detection.
• PoE+ power with 25W maximum consumption and 8GB internal storage; simplifies installation while providing edge recording capabilities for critical applications.
