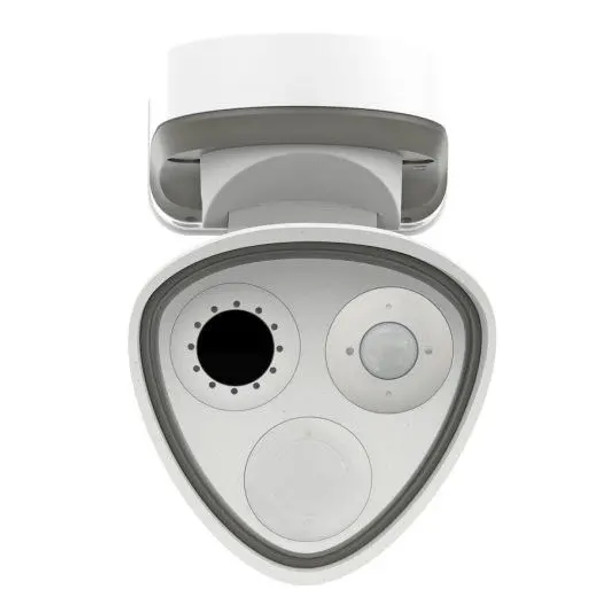

Mobotix Mx-M73TA-B336R280-EN54 336x256 Outdoor Thermal IP Security Camera with 17° FOV and EN54 Fire Detection
The Mobotix Mx-M73TA-B336R280-EN54 delivers EN 54-10 certified thermal monitoring with an ultra-narrow 17° x 13° field of view for precise long-distance thermal detection and fire safety applications. This specialized thermal camera excels in applications requiring detailed thermal analysis of distant objects or specific equipment monitoring.
Designed for telephoto thermal surveillance, this camera provides exceptional detail recognition at extended ranges while maintaining full EN54 fire detection certification. The narrow field of view makes it ideal for monitoring critical infrastructure elements like electrical transformers, industrial equipment, or building facades from significant distances.
Key Features:
- EN 54-10 certified thermal technology for fire alarm system integration; meets EU Construction Products Regulation requirements for building safety and early fire detection applications.
- CIF thermal sensor (336 x 256 pixels) with telephoto 17° x 13° field of view; provides detailed thermal monitoring for long-range detection and precise temperature analysis of distant targets.
- Up to 20 simultaneous measuring windows with temperature range from -40°C to 550°C; enables precise multi-zone monitoring for critical equipment and fire detection applications.
- Modular design supporting additional 8MP optical sensor module; allows expansion to bi-spectrum monitoring with 4K UHD visible imaging capabilities.
- Professional-grade durability with IP66/IK10 protection and -40°C to 65°C operating range; ensures reliable performance in extreme industrial and outdoor environments.
- Advanced streaming capabilities with H.264, H.265, and MxPEG+ codecs; provides efficient bandwidth management with triple streaming for optimal network performance.
- Integrated MultiSense module with PIR, temperature, brightness sensors and microphone; offers comprehensive environmental monitoring beyond thermal detection.
- PoE+ power with 25W maximum consumption and 8GB internal storage; simplifies installation while providing edge recording capabilities for critical applications.
Downloads
Additional Information
|
Camera Style:
|
Box
|
|
Color:
|
White
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Dimensions:
|
8.98x6.02x9.13in
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
17
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
25 Watts
|
|
Power Supply:
|
PoE+ (IEEE 802.3at)
|
|
Protection Code:
|
IP66
IK10
|
|
SD Card Support:
|
|
|
Spectral Range:
|
7.5 to 13.5 μm
|
|
Technology:
|
Network (IP)
|
|
Temperature Range:
|
-40°C to 550°C (-40°F to 1022°F)
|
|
Thermal Resolution:
|
336 x 256
|
|
Thermal Sensitivity:
|
≤50mK
|
