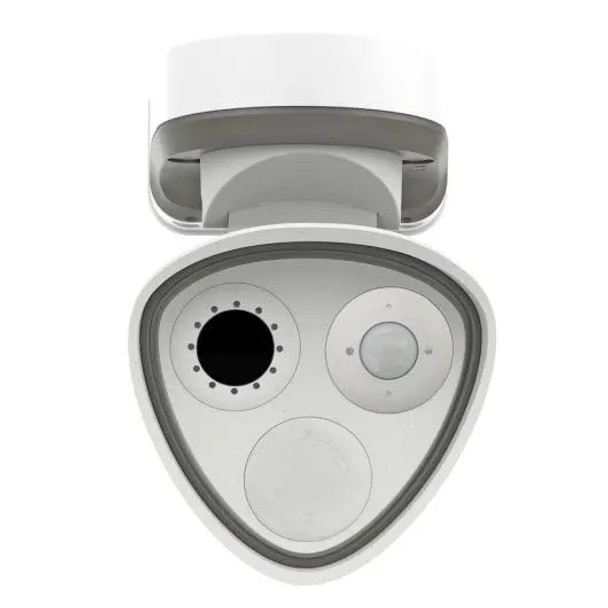

Mobotix Mx-M73TA-B640R050-EN54 640x480 Outdoor Thermal IP Security Camera with 90° FOV and EN54 Fire Detection

Mobotix Mx-M73TA-B640R050-EN54 640x480 Outdoor Thermal IP Security Camera with 90° FOV and EN54 Fire Detection

The Mobotix Mx-M73TA-B640R050-EN54 delivers professional VGA thermal imaging with the widest 90° x 69° field of view in the EN 54-10 certified series. This high-resolution thermal camera provides comprehensive area coverage for large-scale fire detection and thermal monitoring applications in critical infrastructure environments.

Featuring VGA thermal resolution (640x480 pixels) with wide-angle coverage, this camera excels in monitoring large areas such as warehouses, manufacturing facilities, or building perimeters where comprehensive thermal surveillance is essential. The EN54 certification ensures compliance with fire safety regulations while providing superior thermal detection capabilities.

Key Features:

• EN 54-10 certified thermal technology for fire alarm system integration; meets EU Construction Products Regulation requirements for building safety and early fire detection applications.
• VGA thermal sensor (640 x 480 pixels) with ultra-wide 90° x 69° field of view; provides comprehensive thermal monitoring with superior resolution for large area coverage.
• Up to 20 simultaneous measuring windows with temperature range from -40°C to 550°C; enables flexible multi-zone monitoring for comprehensive fire detection and industrial temperature monitoring.
• Modular design supporting additional 8MP optical sensor module; allows expansion to bi-spectrum monitoring with 4K UHD visible imaging capabilities.
• Professional-grade durability with IP66/IK10 protection and -40°C to 65°C operating range; ensures reliable performance in extreme industrial and outdoor environments.
• Advanced streaming capabilities with H.264, H.265, and MxPEG+ codecs; provides efficient bandwidth management with triple streaming for optimal network performance.
• Integrated MultiSense module with PIR, temperature, brightness sensors and microphone; offers comprehensive environmental monitoring beyond thermal detection.
• PoE+ power with 25W maximum consumption and 8GB internal storage; simplifies installation while providing edge recording capabilities for critical applications.
