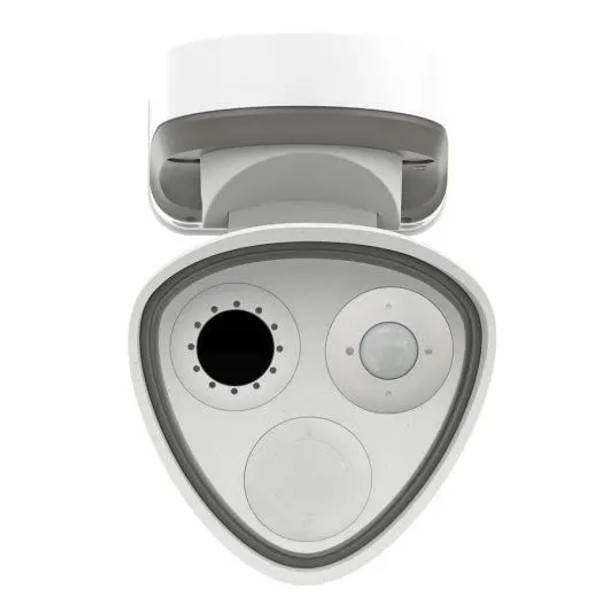

Mobotix Mx-M73TA-B640R080-EN54 640x480 Outdoor Thermal IP Security Camera with 69° FOV and EN54 Fire Detection
The Mobotix Mx-M73TA-B640R080-EN54 combines VGA thermal resolution with a balanced 69° x 56° field of view for versatile fire detection and thermal monitoring applications. This EN 54-10 certified thermal camera provides optimal coverage for medium-range thermal surveillance while maintaining high resolution for detailed temperature analysis.
Engineered for professional fire safety applications, this thermal camera offers the perfect balance between area coverage and thermal detail recognition. The 69° field of view makes it ideal for monitoring medium-sized areas such as equipment rooms, server facilities, or building sections requiring comprehensive thermal oversight.
Key Features:
- EN 54-10 certified thermal technology for fire alarm system integration; meets EU Construction Products Regulation requirements for building safety and early fire detection applications.
- VGA thermal sensor (640 x 480 pixels) with balanced 69° x 56° field of view; provides optimal thermal monitoring with superior resolution for medium-range coverage applications.
- Up to 20 simultaneous measuring windows with temperature range from -40°C to 550°C; enables flexible multi-zone monitoring for comprehensive fire detection and industrial temperature monitoring.

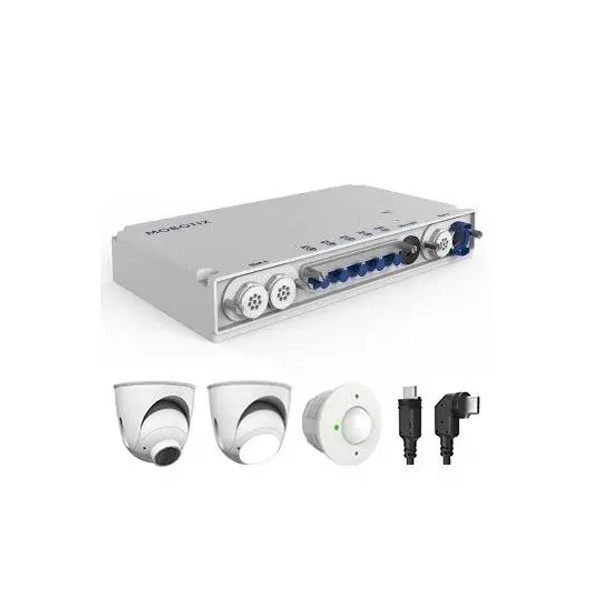

- Modular design supporting additional 8MP optical sensor module; allows expansion to bi-spectrum monitoring with 4K UHD visible imaging capabilities.
- Professional-grade durability with IP66/IK10 protection and -40°C to 65°C operating range; ensures reliable performance in extreme industrial and outdoor environments.
- Advanced streaming capabilities with H.264, H.265, and MxPEG+ codecs; provides efficient bandwidth management with triple streaming for optimal network performance.
- Integrated MultiSense module with PIR, temperature, brightness sensors and microphone; offers comprehensive environmental monitoring beyond thermal detection.
- PoE+ power with 25W maximum consumption and 8GB internal storage; simplifies installation while providing edge recording capabilities for critical applications.
Downloads
Additional Information
|
Camera Style:
|
Box
|
|
Color:
|
White
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Dimensions:
|
8.98x6.02x9.13in
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
69
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
25 Watts
|
|
Power Supply:
|
PoE+ (IEEE 802.3at)
|
|
Protection Code:
|
IP66
IK10
|
|
SD Card Support:
|
|
|
Spectral Range:
|
7.5 to 13.5 μm
|
|
Technology:
|
Network (IP)
|
|
Temperature Range:
|
-40°C to 550°C (-40°F to 1022°F)
|
|
Thermal Resolution:
|
640 x 480
|
|
Thermal Sensitivity:
|
≤50mK
|
