Description

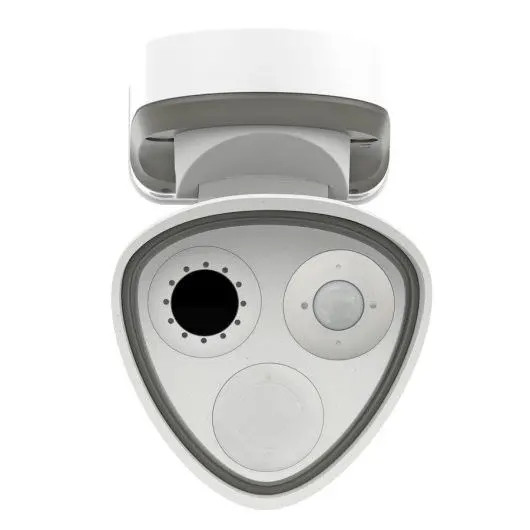

Mobotix Mx-M73TA-B640R150-EN54 640x480 Outdoor Thermal IP Security Camera with 32° FOV and EN54 Fire Detection
The Mobotix Mx-M73TA-B640R150-EN54 combines VGA thermal resolution with a focused 32° x 26° field of view for precision fire detection and long-range thermal monitoring applications. This EN 54-10 certified thermal camera delivers superior detail recognition for targeted thermal surveillance of critical infrastructure elements.
Designed for focused thermal monitoring, this camera provides exceptional detail at extended ranges while maintaining VGA resolution for superior thermal clarity. The narrow field of view makes it ideal for monitoring specific equipment, electrical installations, or building elements requiring detailed thermal analysis from distance.
Key Features:
- EN 54-10 certified thermal technology for fire alarm system integration; meets EU Construction Products Regulation requirements for building safety and early fire detection applications.
- VGA thermal sensor (640 x 480 pixels) with focused 32° x 26° field of view; provides detailed thermal monitoring with superior resolution for targeted coverage applications.
- Up to 20 simultaneous measuring windows with temperature range from -40°C to 550°C; enables flexible multi-zone monitoring for comprehensive fire detection and industrial temperature monitoring.
- Modular design supporting additional 8MP optical sensor module; allows expansion to bi-spectrum monitoring with 4K UHD visible imaging capabilities.
- Professional-grade durability with IP66/IK10 protection and -40°C to 65°C operating range; ensures reliable performance in extreme industrial and outdoor environments.
- Advanced streaming capabilities with H.264, H.265, and MxPEG+ codecs; provides efficient bandwidth management with triple streaming for optimal network performance.
- Integrated MultiSense module with PIR, temperature, brightness sensors and microphone; offers comprehensive environmental monitoring beyond thermal detection.
- PoE+ power with 25W maximum consumption and 8GB internal storage; simplifies installation while providing edge recording capabilities for critical applications.
Additional Information
|
Camera Style:
|
Box
|
|
Color:
|
White
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Dimensions:
|
8.98x6.02x9.13in
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
32
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
25 Watts
|
|
Power Supply:
|
PoE+ (IEEE 802.3at)
|
|
Protection Code:
|
IK10
IP66
|
|
SD Card Support:
|
|
|
Spectral Range:
|
7.5 to 13.5 μm
|
|
Technology:
|
Network (IP)
|
|
Temperature Range:
|
-40°C to 550°C (-40°F to 1022°F)
|
|
Thermal Resolution:
|
640 x 480
|
|
Thermal Sensitivity:
|
≤50mK
|
