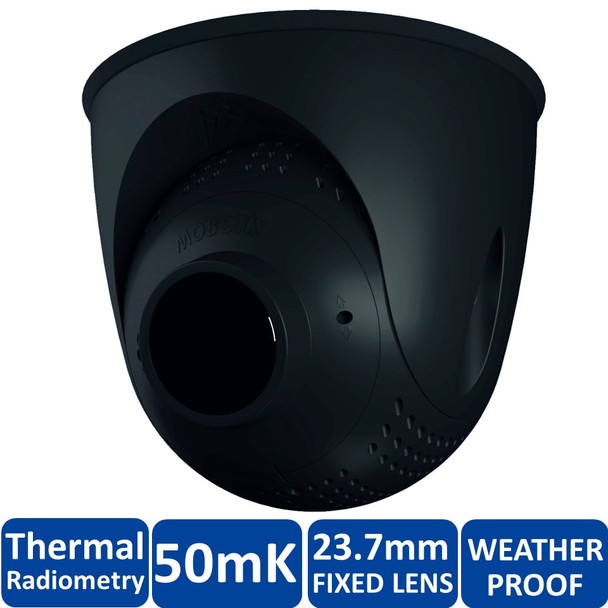

Mobotix MX-MT-PT-TR237-b PTMount-Thermal With Thermal Radiometry Security Camera - 23.7mm Fixed Lens, 50mK, Weatherproof, Black

Mobotix MX-MT-PT-TR237-b PTMount-Thermal With Thermal Radiometry Security Camera

These thermal sensor modules are also designed for connection to the S15 camera (body), for example, for customer-specific special installations. Here, it is possible to connect two thermal sensor modules to a S15 Body in a very flexible way using max. 3 meter long cables for each module. MOBOTIX thermal cameras are designed for around-the-clock operation in industrial conditions. Just like for the M15-Thermal, there are different horizintal image angles available: 45°, 25° and 17° (with optional TR technology for temperature measurement).

Key features:

• Manually adjustable dome mount with integrated thermal sensor module and thermal radiometry
• Highly sensitive thermal image sensor: NETD typ. 50 mK (equal to 0.05 °C, or 0.09 °F), IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second, MTBF > 80.000 hours
• Features three axes that allow it to compensate for sideway tilt and to re-align the image horizon horizontally when mounted to a wall
• Concealed cabling (2 m sensor cable included), weatherproof from -30 to +60°C/-22 to 140°F
• Robust housing (PBT, color: Black or Black), IP66, IK04
• PTMount-Thermal TR for the S15
• Thermal radiometry (TR): calibrated thermal sensor for temperature events from -40 to 550°C (-40 to 1022°F)
• Germanium Lens (2 m/6.6ft, included): B079 equivalent, horizontal/vertical image angle 45°/32°
• Image size: 336 x 252 pixels (can be scaled up to 6MP)
• IP66, -30 to 60°C (-22 to 140°F)
• Camera connection via MOBOTIX sensor cable (2 m/6.6ft, included)
• Color: Black

Note:

The thermal sensor modules are connected to the S15 camera housing (MX-S15D-Sec), which is available as an option, using the two-meter sensor cable that is already connected to the PTMount-Thermal.
