Description
Mobotix MX-S15-N016 FlexMount S15 6MP Indoor/Outdoor Fisheye Network Security Camera

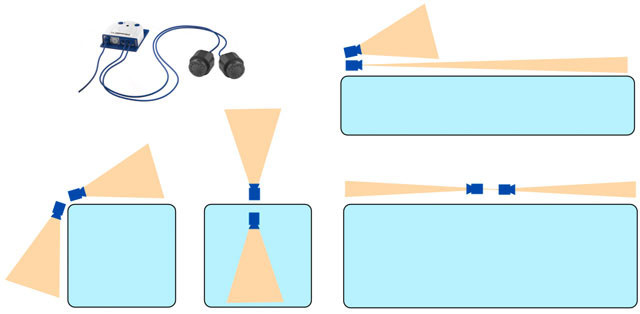

With the S15, one or two sensor modules are each connected to a concealable camera housing via up to three meter long cables. Thanks to its separation of camera housing and image sensor/lens the S15 offers a broad range of installation and application scenarios. The sensor modules need to be ordered separately (apart from the S15 complete sets), are pre-focused at the factory and can be supplied in any desired combination (2x optical, thermal/optical, 2x thermal). The S15M is a single lens camera. It can be mounted in a concealed manner behind a wall or ceiling panel, to a stainless steel plate etc.
Key features:
- Hemispheric IP camera with 6 Megapixel Moonlight Sensor, BW (night)
- HD premium fisheye lens B016 (focal length 1.6 mm, f/2.0, 180° x 180°)
- Max. image size: 6MP (3072 x 2048)
- IP65/IK06, -30 to 60°C (-22 to 140°F)
- Internal DVR: 4 GB microSD
- Temperature sensor, shock detector, MxActivitySensor, MxAnalytics (incl. behavioral detection), ethernet patch cable 0.5 m/1.6ft
- Interfaces: Ethernet 10/100 (RJ45), MxBus, USB; I/O and RS232 via Interface Box (MOBOTIX accessory)
- Connection of MOBOTIX Door Station module
Downloads
Datasheet
mx_TS_S15_6MP_en_160902-A1.pdf
Additional Information
|
Angle of View:
|
180 Degree
|
|
Camera Style:
|
Fisheye
|
|
Compliance:
|
NDAA Compliant
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
180
|
|
Lens Angle Type:
|
Panoramic
|
|
Lens Size:
|
1.6mm
|
|
Lens Type:
|
Fixed Lens
|
|
Max. FPS and Resolution:
|
30fps at 720P
|
|
Protection Code:
|
IP65
|
|
Resolution:
|
6MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Specialized Camera Feature:
|
Multi-directional
|
|
Technology:
|
Network (IP)
|
