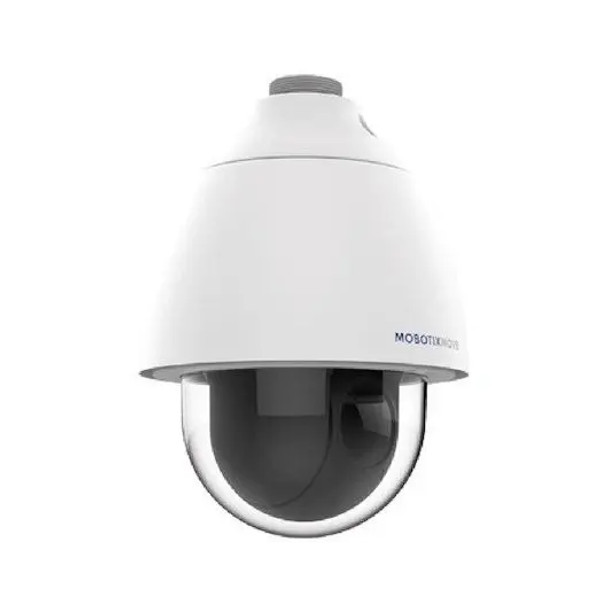

Mobotix Mx-SD2A-230-LL-VA 2MP Outdoor PTZ IP Security Camera with 4.3-129mm Lens, 30x Optical Zoom
The Mobotix Mx-SD2A-230-LL-VA Speed Dome camera delivers professional-grade surveillance with advanced AI-powered analytics and exceptional low-light performance. Featuring Sony's STARVIS II IMX662 sensor and powerful 30x optical zoom, this PTZ camera captures detailed 2MP images in challenging lighting conditions. The camera's DNN-based face and license plate recognition capabilities enable intelligent monitoring and automated object tracking for both humans and vehicles.
Built for demanding outdoor environments, this weatherproof IP66 and IK10-rated camera operates reliably in extreme temperatures from -40°C to 55°C. The motor-controlled zoom lens with autofocus and P-Iris technology automatically adapts to changing light conditions, while the 130dB wide dynamic range ensures balanced images in high-contrast scenes. With support for H.265, H.264, and MJPEG compression, the camera delivers flexible streaming options up to 30 fps.
Designed for long-term reliability, the Mx-SD2A-230-LL-VA features Mobotix's EverClear anti-reflex dome coating for consistent performance and an impressive MTBF of 50,000 hours. Powered by PoE+ (IEEE 802.3at) or 24VAC, this camera integrates seamlessly into professional surveillance systems with ONVIF S/G/T/M compatibility and comprehensive analytics capabilities.
Key Features:
- 30x Optical Zoom with Autofocus: Motor-controlled 4.3-129mm lens provides detailed long-distance observation and automatic focus adjustment for clear imaging at all ranges.
- Sony STARVIS II Sensor Technology: 2MP IMX662 sensor delivers exceptional low-light performance with automatic color-to-B/W switching for reliable 24/7 surveillance.
- AI-Powered Analytics: DNN-based face and license plate recognition with auto object tracking enables intelligent monitoring of humans and vehicles with linkable PTZ presets.
- Extreme Weather Durability: IP66 and IK10 protection ratings ensure reliable operation in harsh conditions from -40°C to 55°C with dust, water, and impact resistance.
- Wide Dynamic Range (130dB): Advanced WDR technology balances exposure in challenging lighting conditions for clear images in both bright and shadowed areas.
- Flexible Power and Integration: PoE+ IEEE 802.3at (max 25.5W) or AC24V power options with ONVIF S/G/T/M compatibility for seamless system integration.
- Professional-Grade Reliability: 50,000-hour MTBF rating and EverClear anti-reflex coating ensure long-lasting performance with minimal maintenance requirements.
Additional Information
Aperture:
|
F4.7
F1.6
|
Camera Style:
|
PTZ
|
Compression:
|
H.264
H.265
MJPEG
|
Lens Size:
|
4.3~129mm
|
Power Supply:
|
PoE+ (IEEE802.3at)
24 VAC
|
Protection Code:
|
IP66
IK10
|
Resolution:
|
2MP
|
Sensor Size:
|
1/2.8"
|
Sensor Type:
|
CMOS
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
WDR 130dB
|
